Mimaki

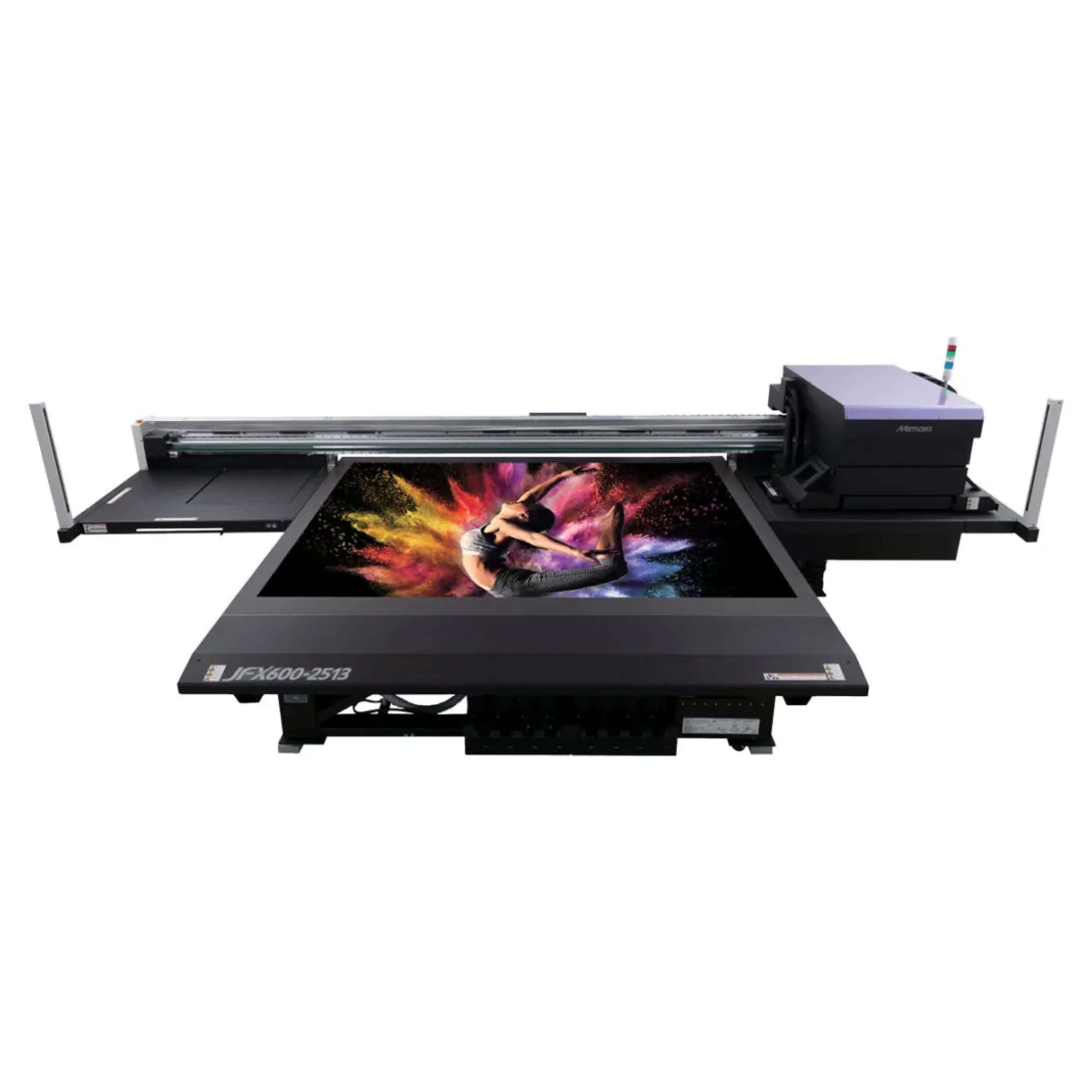

JFX600 Large Format UV-LED Flatbed

$0.00 CAD
Size: JFX600-2513 : 8' x 4'

The Mimaki JFX600 series is a high-performance, ultra-fast wide-format flatbed printer designed for industrial-scale production. With print speeds up to 2,152 ft²/hr, 16 print heads, and sizes up to 8’ x 10’, it delivers unmatched speed and quality for packaging, signage, POP displays, architectural panels, and more.

About The Product

Engineered for high-volume print environments, the Mimaki JFX600-2513 and JFX600-2531 UV-LED flatbed printers offer industry-leading speed, flexibility, and image quality. These workhorses feature 16 staggered print heads, eco-friendly UV-LED inks, and vacuum-zoned print beds for precision material hold.

Ideal for packaging companies, POP shops, and industrial printers, the JFX600 delivers full-bleed prints up to 2.36” thick on rigid substrates like wood, metal, glass, and plastic. The JFX600-2513 supports 8’ x 4’ boards, while the JFX600-2531 expands output with a full 8’ x 10’ bed and nine vacuum zones. Mimaki’s IoT-ready platform and PICT remote monitoring enable seamless integration into automated workflows.

Key Features:
• Prints full 4x8’ or 4x10’ boards in under 60 seconds
• 16 staggered printheads for maximum speed and output
• Up to 2.36” media thickness
• Mimaki PICT remote performance monitoring
• Eco-friendly UV inks with GREENGUARD Gold certification
• Onboard touchscreen (MPC) for intuitive operation
• Ideal for full-bleed POP displays, packaging, ADA signage & textured prints

Product Specs

Print Technology
• Printheads: 16 on-demand piezo heads (staggered)
• Resolution: 600x600, 600x1200, 1200x1200 dpi
• Speed: Up to 2,152.78 ft²/hr (200 m²/hr)

Media & Print Area
• Max Print Area:
• JFX600-2513: 98.4″ x 51.2″ (2500 x 1300 mm)
• JFX600-2531: 98.4″ x 122.0″ (2500 x 3100 mm)
• Max Media Size:
• JFX600-2513: 101.6″ x 80.3″
• JFX600-2531: 100.4″ x 124.0″
• Max Media Thickness: 2.36″ (60 mm)
• Max Media Weight: 10 lb/ft² (50 kg/m²)

Ink & Color
• Ink Types:
• Rigid: LH-100
• Flexible: LUS-120, LUS-150
• Greenguard Gold Certified UV-LED inks

Connectivity & Operation
• Interface: Ethernet 10,000 BASE-T
• Power Supply: AC 200–240V, 50/60Hz
• Power Consumption: < 4.8kWh x 3
• Remote Monitoring: Mimaki PICT

Environmental Requirements
• Temperature: 68–86°F (15–30°C)
• Humidity: 35–65% RH (non-condensing)

Machine Size & Weight
• JFX600-2513:
• Size: 207.5″ x 110.2″ x 63″ (5300 x 2850 x 1700 mm)
• Weight: 2,645.5 lbs (1,200 kg)
• JFX600-2531:
• Size: 213″ x 191″ x 67″ (5400 x 4850 x 1700 mm)
• Weight: 3,527 lbs (1,600 kg)

Certifications
UL 775 ETL, CE Marking, RoHS, REACH, EAC
