Mimaki

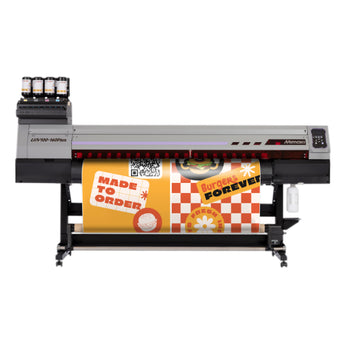

UJV100-160 Plus LED Entry Level Printer

$0.00 CAD

The Mimaki UJV100-160 Plus is a versatile, energy-efficient, and cost-effective UV-LED roll printer designed to produce high-quality prints instantly on a wide variety of media types. Ideal for commercial print providers looking to expand their capabilities without breaking the bank.

About The Product

The UJV100-160 Plus delivers professional-grade performance at an entry-level price point, offering advanced features typically found in higher-end models. Equipped with instant-dry UV-LED inks, this roll-based printer enables immediate post-processing—no drying time, no delays.

Whether you’re printing on paper, PET film, vinyl, or textiles, the UJV100-160 Plus offers stunning results with its 6-colour ink set, including White and Clear for enhanced image depth and layering effects. It’s perfect for backlit graphics, banners, decals, window films, and other high-impact applications.

Eco-conscious businesses will appreciate its low power consumption—less than 20% that of comparable eco-solvent or latex printers—making it not only cost-effective but also environmentally responsible.

Key Features:
• Instant-dry UV-LED inks for fast production and handling
• Backlit & multi-layer printing support for dynamic applications
• Up to 50% ink reduction with new economy features
• Eco-friendly low power draw (just 0.5kW max power)
• DAS (Dot Adjustment System) for automated dot alignment
• Compatible with a wide range of media types for unmatched versatility

Product Specs

• Printheads: Two staggered piezo printheads
• Resolutions: 360 / 720 / 900 / 1200 dpi
• Maximum Print Area: 63.4″ (1610 mm)
• Max Print Speed: Up to 677 Sq Ft/Hr (4-color mode)

Media Handling
• Max Media Width: 63.8″ (1620 mm)
• Max Media Thickness: Up to 1 mm
• Max Media Weight: Up to 45 kg

Ink System
• Ink Type:
• U.S. & Canada: LUS-170
• Latin America: LUS-210 / LUS-190 (CMYK, White, Clear)
• Ink Capacity: 1L bottles
• Ink Configuration: CMYK + White + Clear

Connectivity
• Interface: USB 2.0 Hi-Speed, 1000 BASE-T Ethernet

Power & Environmental
• Power Supply: AC 100–120V / 200–240V ±10%, 50/60Hz
• Power Consumption: Max 0.5kW
• Operating Temperature: 20° – 30°C
• Humidity Range: 35 – 65% RH (non-condensing)

Physical
• Dimensions (W x D x H): 109.3″ x 27.6″ x 58.1″ (2775 x 700 x 1475 mm)
• Weight: 368.2 lbs (167 kg)
• Options: Ionizer, Level Foot, Lift-up Block
