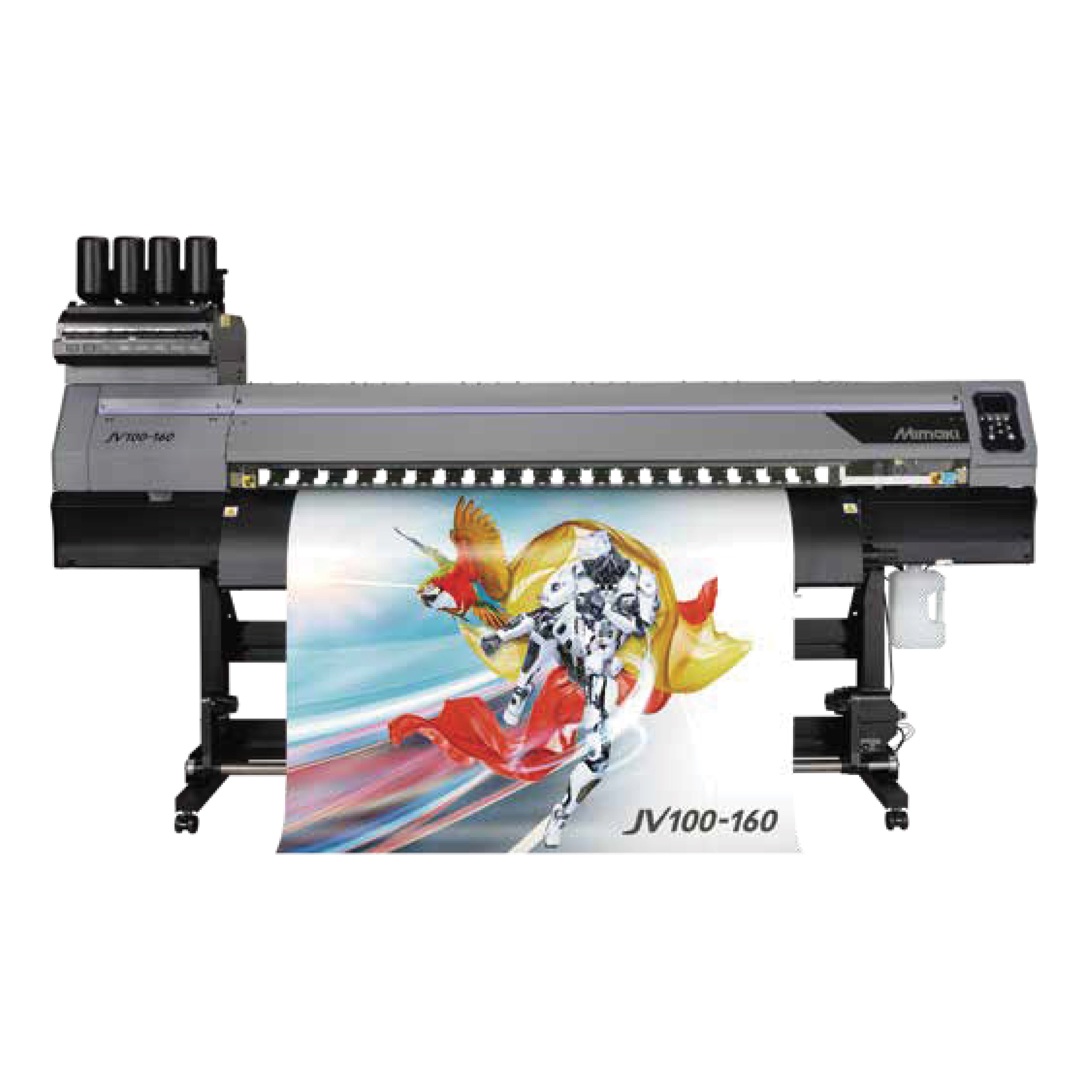

JV100-160 High Performance Printer

Built for print professionals who demand quality, versatility, and reliability, the JV100-160 is packed with advanced Mimaki technologies to streamline production and maximize uptime. Its dual staggered printheads deliver sharp, vivid graphics at speeds of up to 677 sq. ft/hr, while the new AS5 eco-solvent ink set offers 4- and 8-color options including Orange and Light Black for superior color accuracy.

Automated features ensure smooth operation:
• Dot Adjustment System (DAS): Automatically calibrates dot position for precise print quality.
• Nozzle Check Unit (NCU): Detects and compensates for clogged nozzles in real time.
• Nozzle Recovery System (NRS): Bypasses faulty nozzles to prevent image defects and downtime.
• RasterLink7 RIP Software: Included software cuts RIP time by 25% and improves usability.

Whether you’re printing high-impact signage, long-run vehicle graphics, or gallery-quality art prints, the JV100-160 delivers professional results with ease.

Specifications

Printing Technology
• Printheads: Two staggered, on-demand piezo heads
• Print Resolutions: 360 / 540 / 600 / 720 / 900 / 1080 / 1200 dpi
• Max Print Speed (4-color mode): Up to 677.05 sq. ft/hr
• Max Print Width: 63.3” (1610 mm)
• Max Media Width: 63.8” (1620 mm)
• Max Media Thickness: 1 mm
• Max Media Weight: Up to 99.2 lbs

Ink System
• Ink Types:
• AS5 Eco-Solvent: CMYK, Lc, Lm, Lk, Or
• SS21 Eco-Solvent: CMYK, Lc, Lm, Lk, Or
• Ink Capacities: 600 ml or 2000 ml packages

Software & Connectivity
• RIP Software: RasterLink7 (included)
• Interface: 1000Base-T Ethernet or USB 2.0

Electrical & Environmental
• Power Supply: AC 100–120V / 200–240V ±10%, 50/60 Hz ±1 Hz
• Operating Temperature: 20°C – 30°C (68°F – 86°F)
• Operating Humidity: 35% – 65% RH (non-condensing)

Dimensions & Weight
• Dimensions (Cartridge Type): 109.3” × 27.6” × 54.8” (2775 × 700 × 1392 mm)
• Dimensions (Bottle Type): 109.3” × 27.6” × 58.1” (2775 × 700 × 1475 mm)
• Weight: 366 lbs (166 kg)
• Printer: 310 lbs (141 kg)
• Leg Unit: 55 lbs (25 kg)
