Mimaki

Heat Assisted Laminator

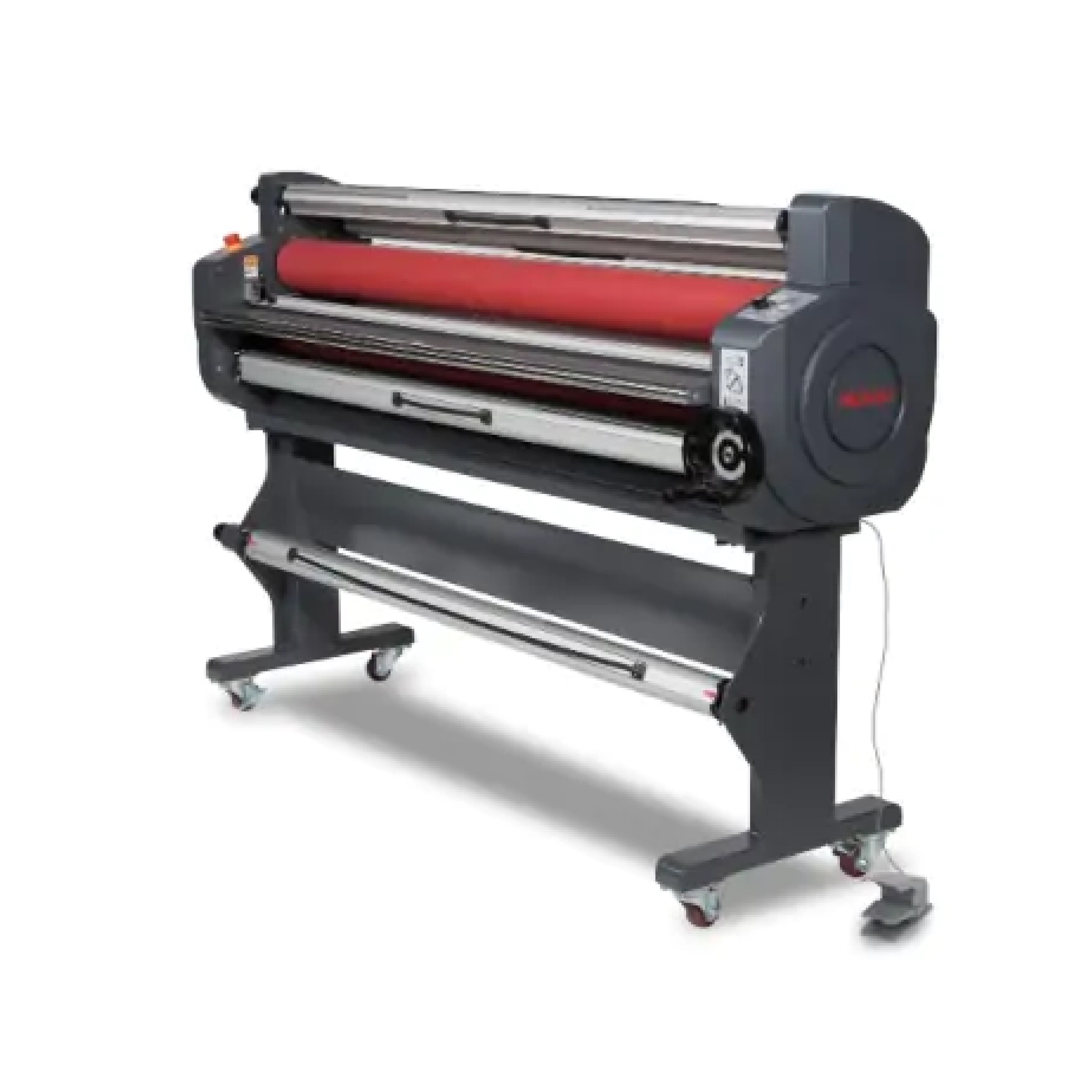

The Mimaki LA-160W is a professional heat-assisted roll laminator designed to deliver superior film adhesion—especially on UV-printed surfaces—while eliminating common issues like silvering. With a wide 62.2” processing width, it’s the perfect complement to any Mimaki roll-to-roll printer.

About The Product

Take your print finishing to the next level with the Mimaki LA-160W Laminator. This powerful yet easy-to-use system is ideal for high-quality lamination on signage, decals, and graphics printed with UV-LED inks. The adjustable heat function improves adhesion and clarity, minimizing silvering and bubbles.

Its user-friendly design features a foot pedal, easy-access pressure handle, and a motorized take-up reel, allowing solo operation. Designed to pair seamlessly with Mimaki Vision Laminate film, it also supports any compatible media from Mimaki roll printers.

Key Features:
• Heat-assisted for better UV ink lamination results
• Up to 62.2” processing width
• Improves laminate clarity by reducing silvering
• Take-up reel included for easy one-person operation
• Adjustable speed & temperature settings
• Pairs perfectly with Mimaki roll-to-roll printers

Product Specs

Max Processing Width: 62.2″ (1580 mm)
• Max Media Thickness: 1.38″ (35 mm)
• Processing Speed: 0 – 295.3″ per minute (0 – 7500 mm/min)
• Processing Temperature: Room temperature to 60°C (140°F)
• Roller Diameter: 4.72″ (120 mm)
• Core Size: 3″

Power & Electrical
• Power Supply:
• USA: 120V
• EU: 230V
• Other: 100V
• Rated Current:
• USA: 14A
• EU: 8A
• Other: 15A
• Power Consumption: 1800W or less
• Preheat Time: Approx. 30 minutes

Controls & Operation
• Foot Pedal: Included
• Pressure Adjustment: Manual handle
• Attachment Shafts: 3″ x 5 (with scale)

Size & Weight
• Dimensions: 78.7″ W x 21.7″ D x 50.4″ H (2000 x 550 x 1280 mm)
• Weight: 451.9 lbs. (205 kg)
