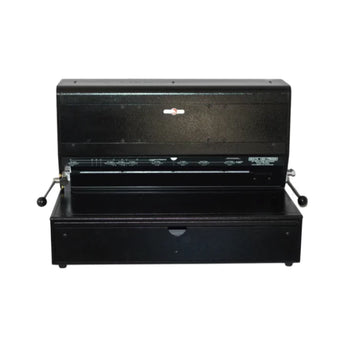

Rhin-O-Tuff

HD7500 24" Horizontal Punch

$0.00 CAD

Pickup available at Print Digital Solutions Location

Usually ready in 2 hours

The HD7500 is a robust 24” horizontal electric punch engineered for high-volume, large-format binding tasks. With its wide open-ended design, this powerhouse easily accommodates oversized materials like calendars, engineering drawings, and presentation boards. Combining precision engineering with user-friendly features, the HD7500 delivers speed, strength, and unmatched versatility—making it the ideal solution for commercial and corporate print finishing.
Download Brochure
Product Description

The Rhin-O-Tuff HD7500H Horizontal Punch sets a new benchmark for large-format punching. Designed with a 24” (610 mm) open-ended punching width and twin motor operation, this heavy-duty tabletop system handles even the toughest binding projects with ease. Built for high-throughput environments, it boasts a punch speed of up to 53 cycles per minute and is rated for up to 40 sheets or 80 pages of 20 lb. bond paper per cycle (varies by paper and pattern).

Featuring Rhin-O-Tuff’s patented Quick Change Die System (QCDS), operators can switch between die patterns in under 30 seconds without tools. With built-in die storage for two 24” dies and a pull-out extension table for larger jobs, the HD7500 is engineered for convenience. Precision enhancements like the Accu-Set paper stop and full disengagement of punch pins ensure clean, consistent results every time.

Whether you’re producing wide-format catalogs, blueprints, or event signage, the HD7500 delivers the power, durability, and flexibility your operation demands.
Product Specifications

Punching Functions
• Punch Width: 24” (610 mm) open-ended horizontal punch
• Rated Punch Capacity: Up to 40 sheets or 80 pages (20 lb. / 80 gsm bond paper)
• Punch Cycles: Up to 53 cycles per minute
• Die System: Patented Quick Change Die System (QCDS)
• Punch Pins: Fully disengageable
• Paper Stop System: Pre-set paper stops and Accu-Set fine adjustment
• Die Compatibility: Multiple die options for coil, wire, and comb (sold separately)
• Orientation: Horizontal feed for oversized and landscape-oriented sheets

Efficiency Features
• Setup Time: Die change in under 30 seconds—no tools required
• Dual Motor Drive: Twin motors for extra power on demanding jobs
• Built-in Die Storage: Holds two 24” dies behind machine
• Pull-Out Extension Table: Supports larger format jobs while saving workspace when not in use
• Waste Collection: Extra high-capacity slide-out chip tray

Build & Sustainability
• Construction: Heavy-duty all-metal frame
• Recyclability: More than 98% recyclable materials
• Warranty: 6-year mechanical warranty
• Country of Manufacture: USA

Dimensions & Electrical
• Dimensions (H × W × D): 18” × 32” × 20” (457 mm × 813 mm × 508 mm)
• Machine Weight: 148 lbs (67.1 kg)
• Shipping Weight: 162 lbs (73.5 kg)
• Power Requirements: 115V AC, 8A, 60Hz
