Rhin-O-Tuff

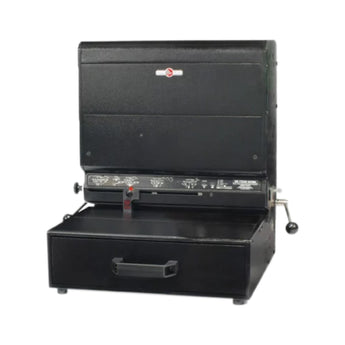

HD7725 14" Vertical Punch

$0.00 CAD

Pickup available at Print Digital Solutions Location

Usually ready in 2 hours

The HD7725 is a powerhouse tabletop vertical punch designed to tackle high-volume punching with speed, precision, and modular flexibility. Built for commercial print environments, this durable machine delivers consistent performance for a wide variety of binding formats—making it the go-to solution for fast-paced production floors.

With its patented Quick Change Die System and more than 20 interchangeable die patterns, the HD7725 excels in adaptability while significantly reducing job setup time. Its ultra-high punching capacity and user-focused design make it the ultimate punch for demanding finishing operations.
About The Product

The Rhin-O-Tuff HD7725 Ultima redefines what a tabletop vertical punch can do. Engineered for performance and reliability, this machine combines rugged build quality with operator-friendly features—like fully disengageable pins, intuitive controls, and automated reverse to clear jams.

Equipped with a 14” open-ended extra capacity die, the HD7725 can punch up to 55 sheets (or 110 pages of 20 lb. bond paper) in a single cycle. It also includes the Accu-Set Paper Stop system for ultra-precise hole placement—even on irregular sheet sizes—and a U-View waste tray that holds 150% more than standard punches.

With support for coil, comb, wire, and more, plus compatibility with APES (Auto Paper Ejector & Stacker) and PAL (Pick-A-Lift) modules, this system streamlines high-volume workflows with exceptional efficiency. Made in the USA and built with more than 98% recyclable materials, the HD7725 is a sustainable and professional solution for the modern binder.
Product Specs

Punching Functions
• Vertical Electric Punch: 14” (356 mm) open-ended die
• Rated Punch Capacity: Up to 55 sheets or 110 pages (20 lb. / 80 gsm bond paper)
• Punch Cycles: Up to 65 per minute
• Disengageable Pins: Yes – for flexible punch configurations
• Die System: Patented QCDS (Quick Change Die System)
• Die Compatibility: 20+ dies, 12 standard patterns (comb, coil, wire, velo, 3-hole, etc.)
• Reverse Mode: Automatic & manual jam-clearing system

Paper Handling & Adjustments
• Paper Stop System: Accu-Set™ fine-tune knob for custom sizing
• Max Media Types: Includes plastic Mylar, cover stock, and more
• Max Mylar Punch: Up to 5 sheets (varies by thickness)
• U-View Waste Tray: Holds 150% more chip waste than standard trays

System Compatibility
• APES (Auto Paper Ejector & Stacker) – Optional
• PAL-14 & PAL-M (Pick-A-Lift Modules) – Optional
• Foot Pedal & Palm Switch: Both standard; Versa Switch optional

Build & Sustainability
• Construction: Heavy-duty metal chassis
• Recyclability: More than 98% recyclable materials
• Country of Manufacture: USA

Dimensions & Electrical
• Dimensions (H × W × D): 8.5” × 21” × 22.5” (216 × 534 × 547 mm)
• Weight: 96 lbs (43.5 kg); Shipping Weight: 103 lbs (46.7 kg)
• Electrical: 115V AC, 4A, 60Hz (also available in 230V AC, 2A, 50Hz)
