Compact Flatbed UV Printer for Promotional Products & Signage

Komodo

Komodo UV9060i Compact UV Printer

Name: Komodo UV9060i Compact UV Printer
Brand: Komodo
Availability: InStock

$0.00 CAD

New

Shipping calculated at checkout.

Product variants

Quantity

The Komodo UV9060i is a compact yet powerful UV flatbed printer designed to tackle a wide range of applications—from rigid signs and promotional items to cylindrical products and UV DTF transfers. With a print area of 35.4” x 23.6” (900mm x 600mm) and a max material height of 7.08” (180mm), this versatile printer delivers exceptional quality with CMYK + White + Varnish and supports a wide array of materials like wood, glass, acrylic, metal, plastic, and more.

Download Brochure

Visual Positioning Technology

High-precision scanning and recognition, thus increasing efficiency and cost saving.

UV LED Curing Technology

Electronic ultraviolet (UV) light is used to cure the ink instantly, offering vibrant and lasting prints.

Continuous Ink Supply System

Consistent ink flow results in more reliable print quality, avoiding ink shortages or colour inconsistencies.

Epson i3200 Printheads

Equipped with three Epson MEMS i3200 printheads, known for producing premium quality without flying inks and satellite dots.

Vacuum Bed

Maximum print area of 35.4” x 23.6” (900mm x 600mm) and maximum height up to 7.08" (180mm).

Epson i3200 Printheads

Epson MEMS technology delivers high-resolution, fast, and consistent output — built for precision and durability in demanding print environments.

UV LED Curing Technology

Two air-cooled UV LED lamps cure the ink instantly and make the ink securely adhere to the substrate, with adequate depth of cure without being sticky or flakey.

Continuous Ink Supply System

White ink circulation system and ink shortage warning system play a great role in optimizing ink flow and minimized maintenance.

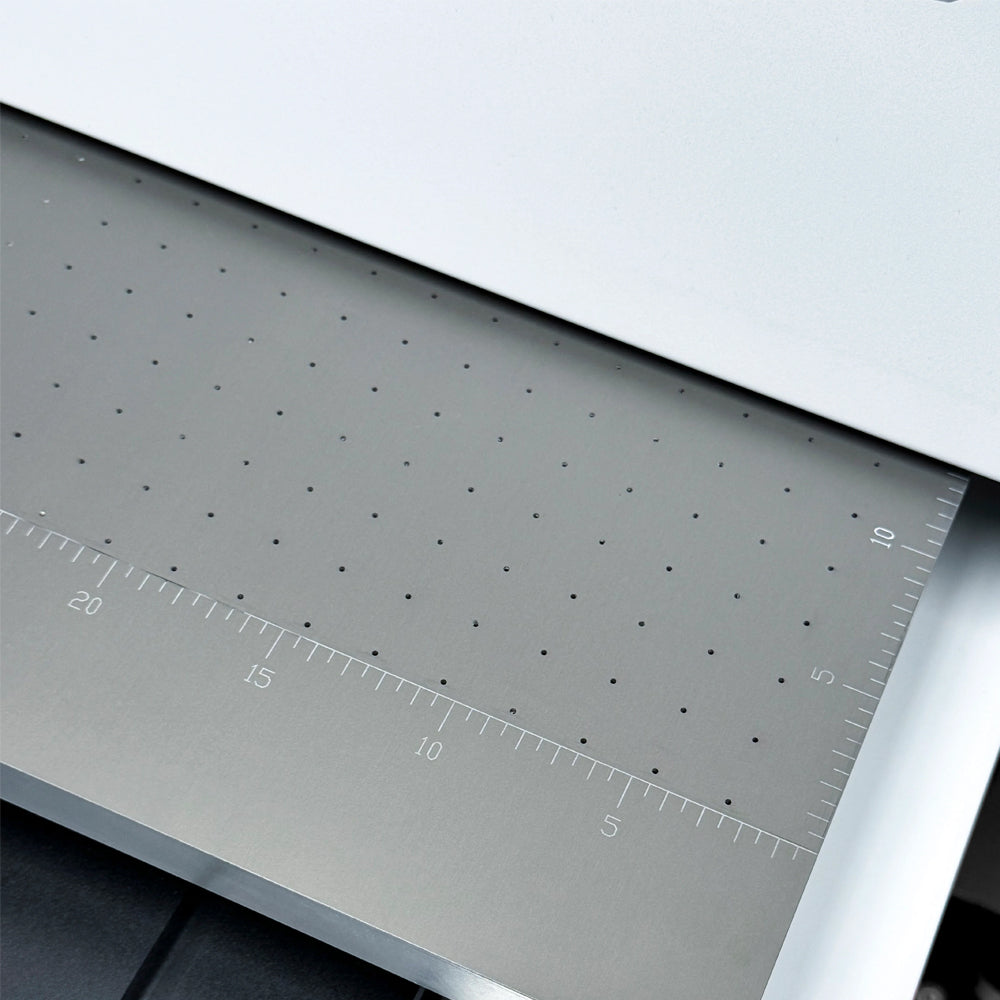

Vacuum Suction Bed

A bi-directional suction flatbed that keeps the substrate securely flat, supporting both forward and backward movement, along with automated and manual height adjustments.

Automatic White Ink Mixing

The UV9060 also comes with a rotary attachment that allows printing on tapered and cylinder items like bottles, tumblers, golf balls, candle, etc.

Automatic Cleaning

Automatically keeps the printhead clean and prevents precipitation and blocking, thus improving the life of the printhead and print quality.

Featuring

Visual Positioning Technology

Traditional UV printers require custom jigs and manual alignment, slowing down production. With Visual Positioning System, our printers can automatically:

Detect object shape
Recognize contour
Align artwork automatically
Eliminate jigs for odd shapes
Reduce labor and setup time
Increase print accuracy

You can print multiple items in different positions on the same bed at once, thus, increasing your production efficiency by up to 80%.

Featuring

Variable Ink Drop

Variable ink drop technology allows the UV9060 to vary the size of ink applied at any given point in the printing process. This variation in ink size allows a more controlled printing process to produce detailed designs and prints, creating accurate designs even in smaller images.

Epson's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely control to eject the droplet volume.

Variable Ink Drop Technology All MEMS manufacturing and thin film piezo elements can realize high precision and high density( 600 dpi / 2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.

Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.

Fixed Ink Drop

Variable Ink Drop

More Features

Varnish Printing

With UV9060's varnish printing feature, you can enhance designs with raised, tactile effects or add a sleek, professional touch to graphics, making them stand out with high-quality, durable results. This versatility opens up creative possibilities for producing visually striking and textured prints on a variety of materials.

Rotary Add-on Capabilities

You can attach an add-on rotary jig to the UV9060 that expands your printing capabilities to a wide variety of cylindrical objects – such as tumblers, bottles, candles, golf balls, etc.

UV Direct-to-Film

UV9060 allows you to print directly onto adhesive film, laminate it, and then apply it to nearly any surface. With UV DTF, you can effortlessly transfer high-resolution, dimensional graphics onto a wide variety of surfaces.

ADA-compliant Signage

UV9060 can print ADA-compliant Braille signage. You can also print directly on substrates for small format signage, delivering high quality signs and plaques for metal, glass, wood, acrylic, plastic and more.

Applications

Bottle Openers

USB Drives

Keychains

Puzzle Pieces

Phone Cases

Bottle Caps

Balls

Braille

Tumblers

Badges

Packaging

Wooden Signage

More about the product

Key Features:

Vacuum print bed for consistent flat printing
Optional rotary attachment for 360° cylindrical prints

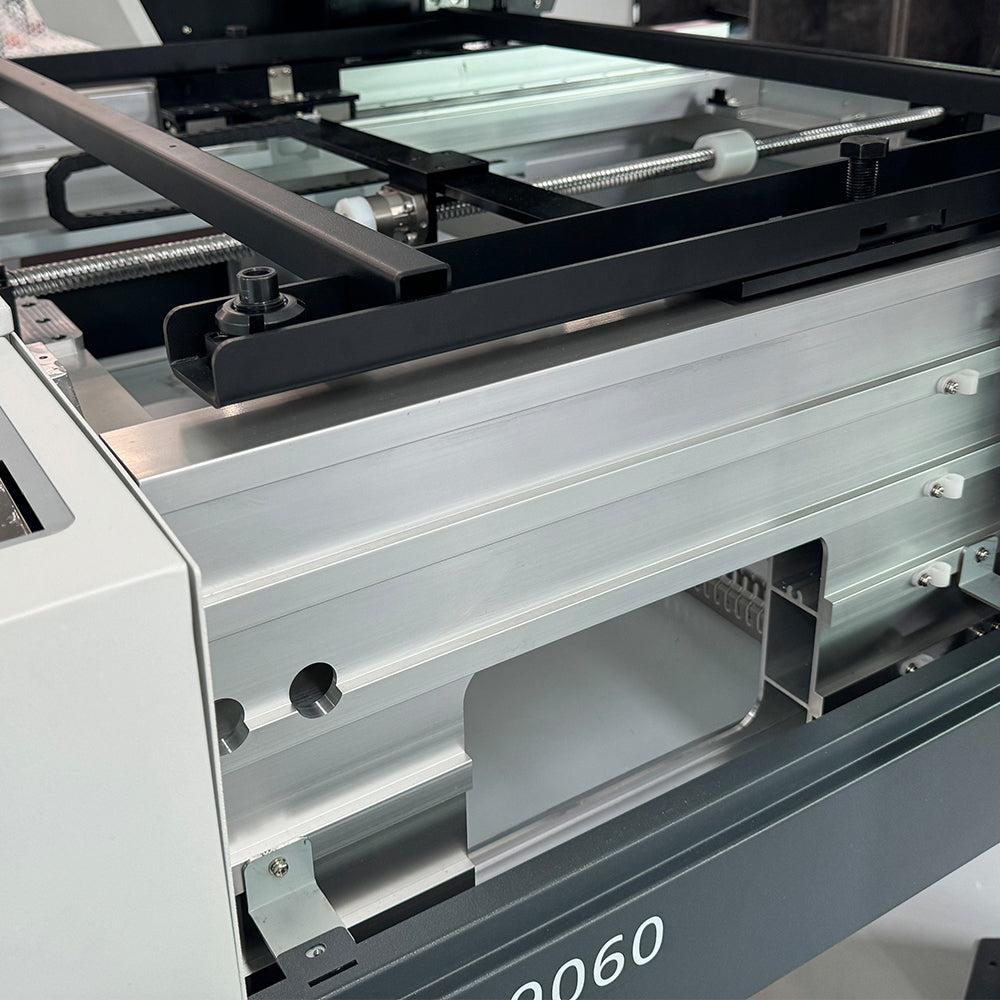

Integrated aluminum frame for durability and accuracy
Local dimming control for layered white/varnish effects
Instant UV LED curing with dual air-cooled lamps
Seamless software integration (RIIN RIP)
No installation required; easy operation
One-year warranty & lifetime maintenance support

Ideal For:

Sign shops
Custom packaging providers
Promotional product decorators
Industrial marking & labeling
Print-on-demand businesses

The Komodo UV9060i offers professional-grade UV LED printing in a flexible footprint, making it ideal for both startups and established print shops. Whether you’re producing flat signs, tactile Braille graphics, custom tumblers, or UV DTF transfers, this printer handles it all with precision and ease.

Built with 3 Epson i3200 printheads, it supports high-resolution output up to 3200 dpi and includes a vacuum bed for flat substrates and an optional rotary attachment for cylindrical printing. With local dimming control and full control over varnish and white ink layering, you can create vibrant, textured prints with matte, gloss, or embossed effects.

Print directly onto a wide range of surfaces—like phone cases, glass bottles, puzzle pieces, golf balls, and signage—or use UV DTF printing to transfer detailed, dimensional graphics to irregular or curved surfaces.

With an intuitive software interface, minimal setup, and a small footprint, the Komodo UV9060i is designed to simplify production without sacrificing quality. Whether printing promotional products, ADA-compliant signs, or high-end packaging, the UV9060i delivers reliable, high-quality output with every job.

Printhead	3x Epson i3200 Printheads
Ink Type	UV Ink
Colour Configuration	CMYK + White + Varnish (up to 8 colours)
Printing Resolution	Up to 3200 dpi
Print Size	35.4” x 23.6” (900mm x 600mm)
Print Thickness	7.08” (180mm)
Print Speed	Up to 161 ft²/hr (15 m²/hr)
Printing Platform	Vacuum Suction Platform
UV Curing System	Fan Cooling System
Operation System	Windows 7, 8, 10
RIP Software	RIIN
Graphic Formats	TIF, JPG, EPS, PDF
Printing Environment	N/A
Printer Dimension	59.4" x 63" x 29.1" (1510mm x 1600mm x 740mm)
Power	380W
