Compact Flatbed UV Printer for Promotional Products & Signage

Print Digital Solutions

Test Product Title

Name: Test Product Title
Brand: Print Digital Solutions
SKU: SKU-1
Availability: InStock

$0.00 CAD

Shipping calculated at checkout.

Product variants

Quantity

Pickup available at Print Digital Solutions Location

Usually ready in 2 hours

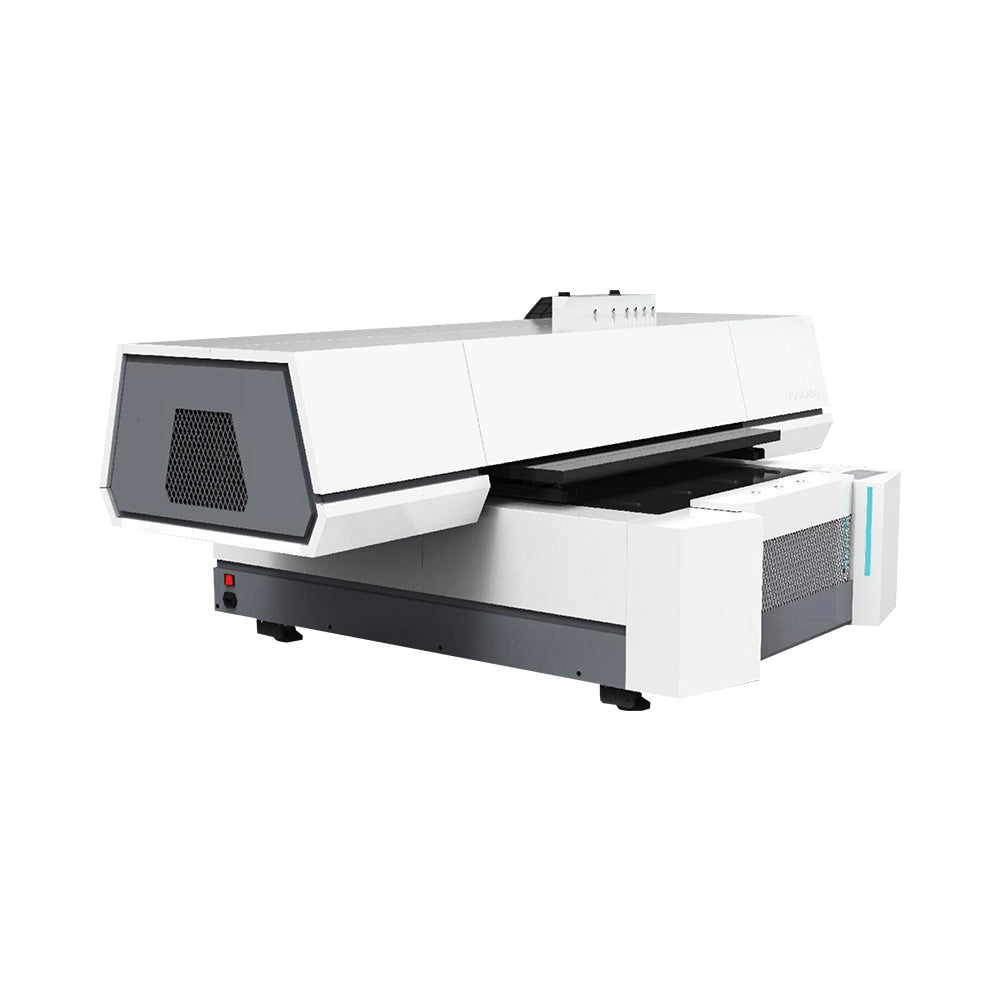

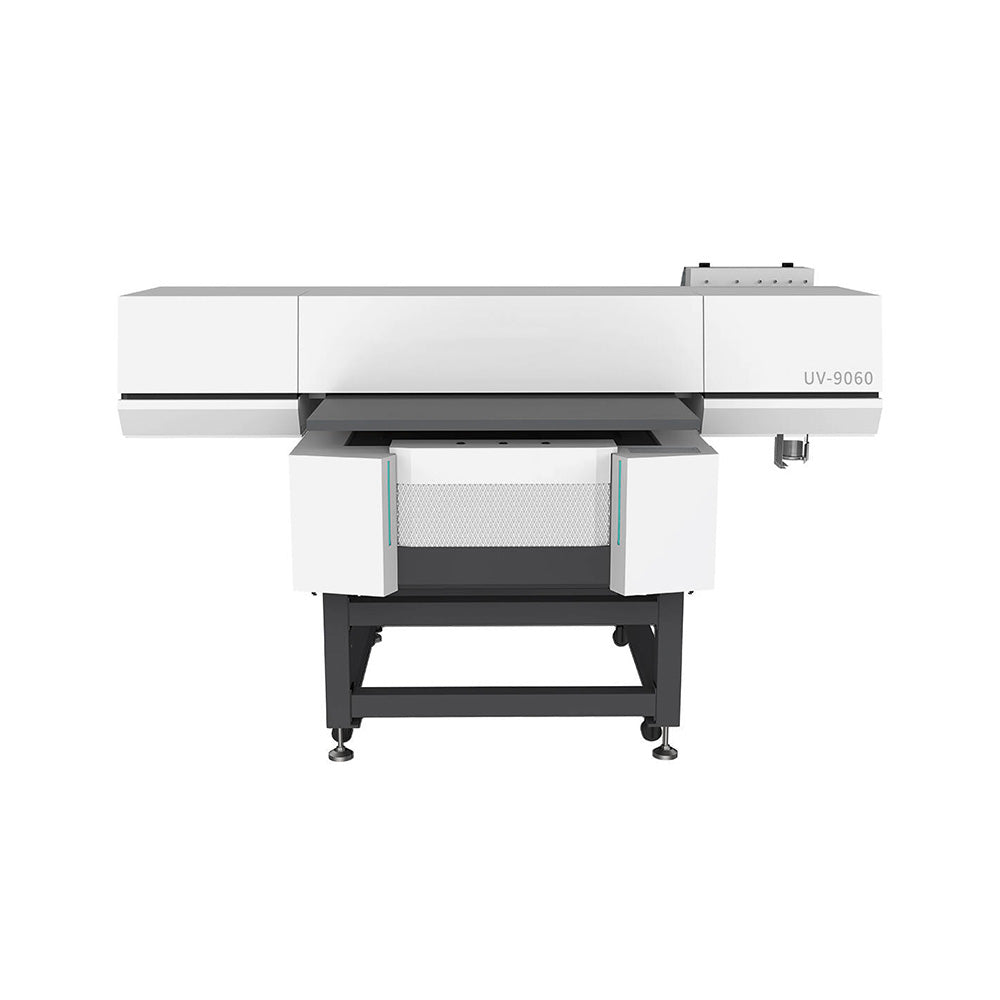

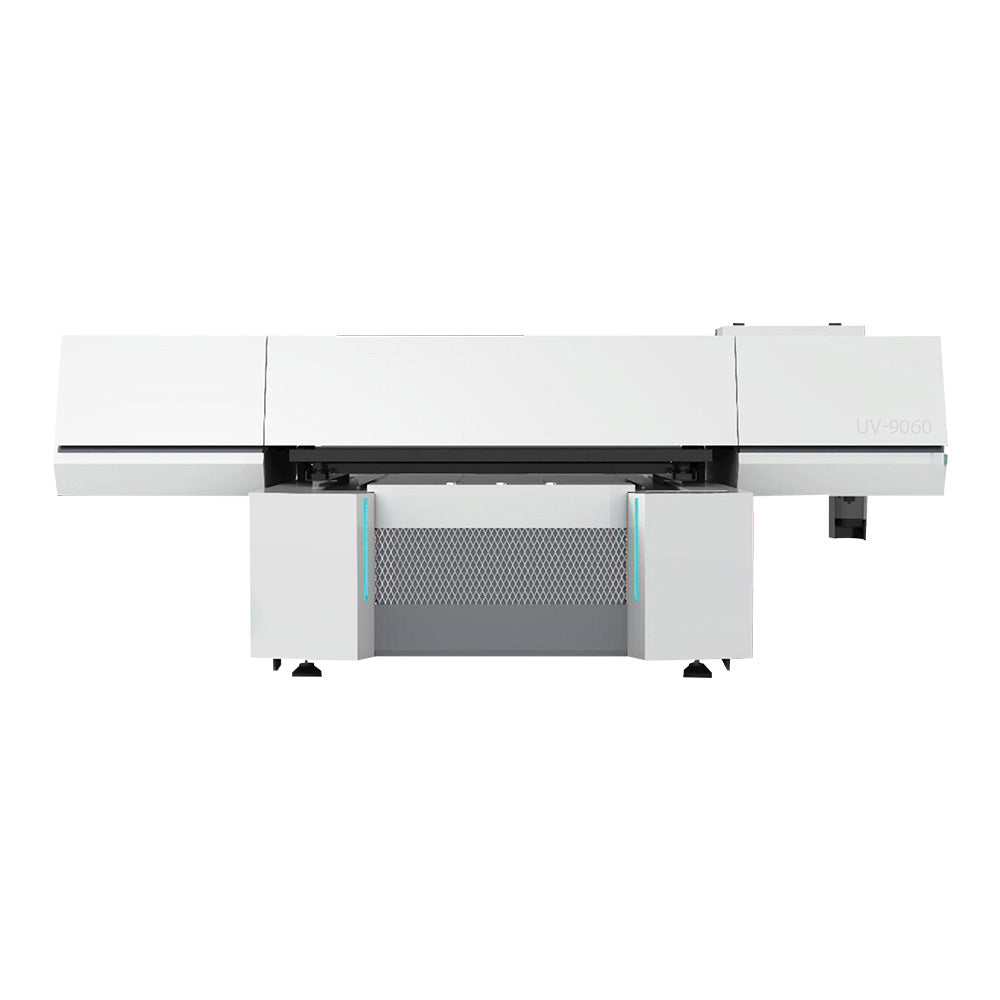

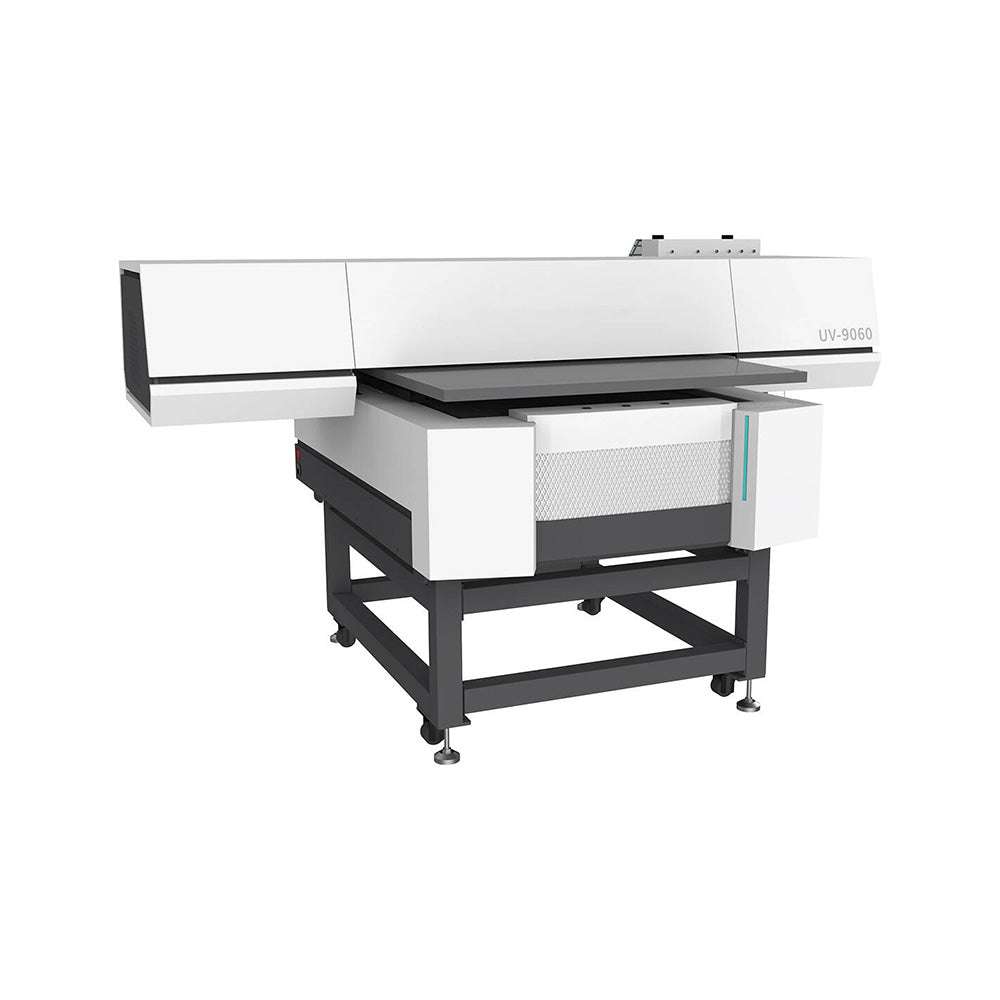

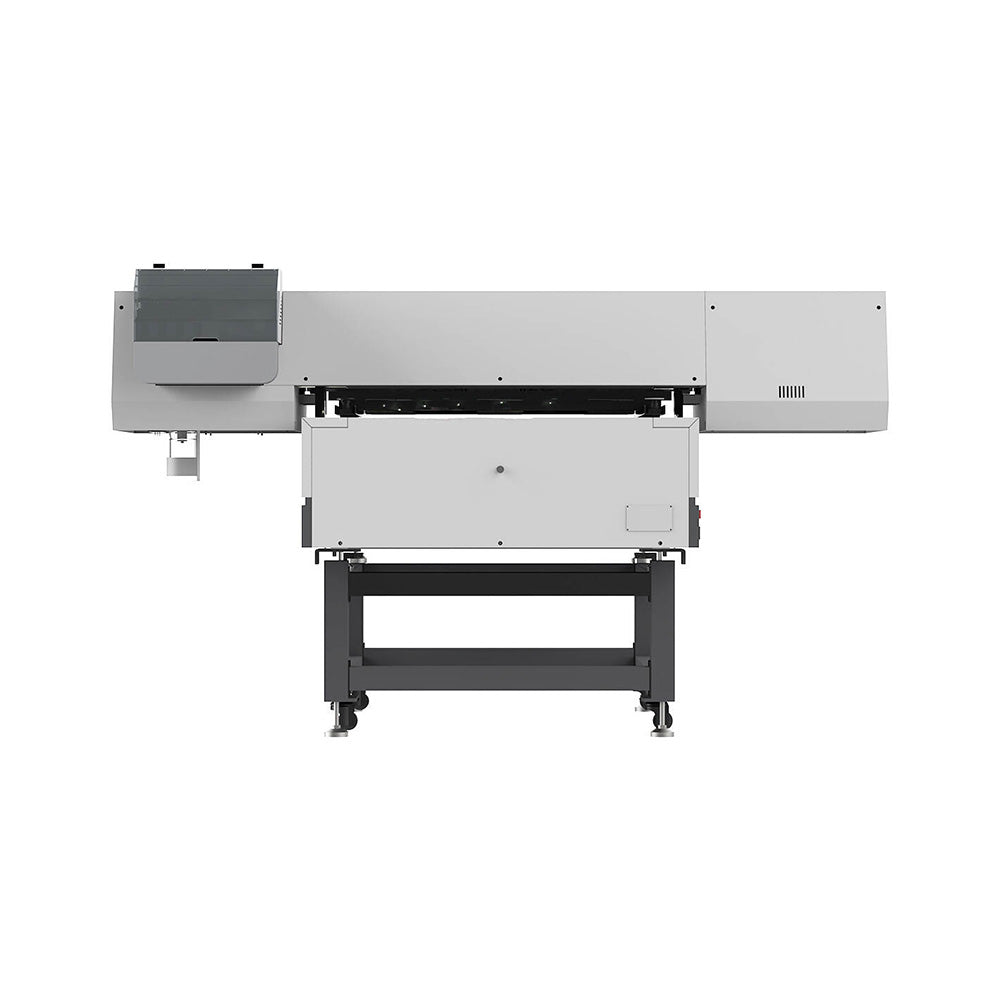

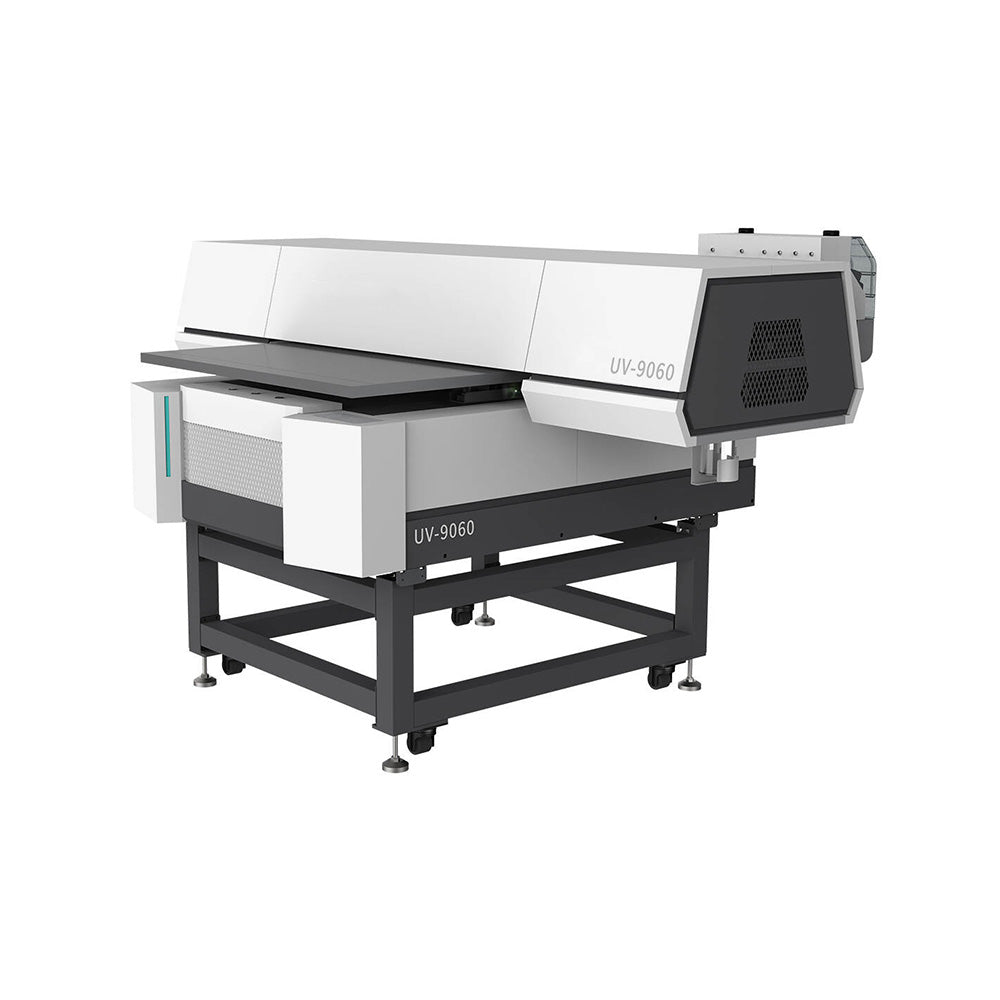

The Komodo UV9060i is a compact yet powerful UV flatbed printer designed to tackle a wide range of applications—from rigid signs and promotional items to cylindrical products and UV DTF transfers. With a print area of 900mm x 600mm and a max material height of 180mm, this versatile printer delivers exceptional quality with CMYK + White + Varnish and supports a wide array of materials like wood, glass, acrylic, metal, plastic, and more.

Download Brochure

Product Description

The Komodo UV9060i offers professional-grade UV LED printing in a flexible footprint, making it ideal for both startups and established print shops. Whether you’re producing flat signs, tactile Braille graphics, custom tumblers, or UV DTF transfers, this printer handles it all with precision and ease.

Built with 3 Epson i3200 printheads, it supports high-resolution output up to 3200 dpi and includes a vacuum bed for flat substrates and an optional rotary attachment for cylindrical printing. With local dimming control and full control over varnish and white ink layering, you can create vibrant, textured prints with matte, gloss, or embossed effects.

Print directly onto a wide range of surfaces—like phone cases, glass bottles, puzzle pieces, golf balls, and signage—or use UV DTF printing to transfer detailed, dimensional graphics to irregular or curved surfaces.

With an intuitive software interface, minimal setup, and a small footprint, the Komodo UV9060i is designed to simplify production without sacrificing quality. Whether printing promotional products, ADA-compliant signs, or high-end packaging, the UV9060i delivers reliable, high-quality output with every job.

Product Specifications

Technical Details

Print Area: 900mm x 600mm (35.4” x 23.6”)
Maximum Substrate Height: 180mm (7.08”)
Print Diameter (Rotary Attachment): 45mm to 110mm (1.77” to 4.33”)
Printheads: 3 × Epson i3200
Print Resolution: Up to 3200 dpi
Printing Speed: Up to 15 sqm/h
Ink Configuration: CMYK + White + Varnish (up to 8 colors)

Supported Applications

Flat items (wood, acrylic, glass, aluminum, plastic, etc.)
Cylindrical objects (tumblers, candles, bottles, etc.)
UV DTF film transfers
ADA Braille signage
Textured effects (gloss, matte, emboss)

Ideal for

Sign shops
Custom packaging providers
Promotional product decorators
Industrial marking & labeling
Print-on-demand businesses

UV LED Curing Technology

Two air-cooled UV LED lamps cure the ink instantly and make it securely adhere to the substrate, with adequate depth of cure without being sticky or flakey.

Continuous Ink Supply System

White ink circulation system and ink shortage warning system play a great role to create optimal ink flow and minimized maintenance.

EPSON i3200

Delivers high-resolution, fast, and consistent output—built for precision and durability in demanding print environments.

Vacuum Bed

Automated and manual flatbed with maximum print area of 900mm x 600mm (35.4” x 23.6”) and maximum height up to 180mm (7").

Printable Substrates

Print on various substrates, including phone cases, keychains, bottles, puzzle pieces, headphones, glass, acrylic, wood, MDF, metals, and more.

360°Rotary Capabilities

The UV9060 also comes with a rotary attachment that allows printing on tapered and cylinder items like bottles, tumblers, golf balls, candle, etc.

Automatic Cleaning

Automatically keeps the printhead clean and prevents precipitation and blocking, thus improving the life of the printhead and print quality.

More about the product

High Precision Printing with 3pcs Epson Printheads
Multi-Mode Printing
Advanced Noise Reduction Technology
Variable Ink Drop Technology
Automatic White Ink Mixing
Automatic Cleaning
Intelligent Control Technology
Multiple Material and Ink Compatibility

Technical Details

Print Area: 900mm x 600mm (35.4” x 23.6”)
Maximum Substrate Height: 180mm (7.08”)
Print Diameter (Rotary Attachment): 45mm to 110mm (1.77” to 4.33”)
Printheads: 3 × Epson i3200
Print Resolution: Up to 3200 dpi
Printing Speed: Up to 15 sqm/h
Ink Configuration: CMYK + White + Varnish (up to 8 colors)

Supported Applications

Flat items (wood, acrylic, glass, aluminum, plastic, etc.)
Cylindrical objects (tumblers, candles, bottles, etc.)
UV DTF film transfers
ADA Braille signage
Textured effects (gloss, matte, emboss)

Ideal for

Sign shops
Custom packaging providers
Promotional product decorators
Industrial marking & labeling
Print-on-demand businesses

Printhead	N/A
Ink Type	N/A
Colour Configuration	N/A
Printing Resolution	N/A
Print Size	N/A
Print Thickness	N/A
Print Speed	N/A
Printing Platform	N/A
UV Curing System	N/A
Operation System	N/A
RIP Software	N/A
Graphic Formats	N/A
Printing Environment Temperature	N/A
Printing Environment Humidity	N/A
Printer Dimension	N/A
Weight	N/A
Power	N/A

Image with text

Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

Advanced Noise Reduction

Advanced noise reduction technology on the UV9060 allows for a more silent printing experience. This provides a noise-free work environment that improves workplace conduciveness and the overall atmosphere.

Without

Noise Reduction

Variable Ink Drop

Variable ink drop technology allows the UV9060 to vary the size of ink applied at any given point in the printing process. This variation in ink size allows a more controlled printing process to produce detailed designs and prints, creating accurate designs even in smaller images.
