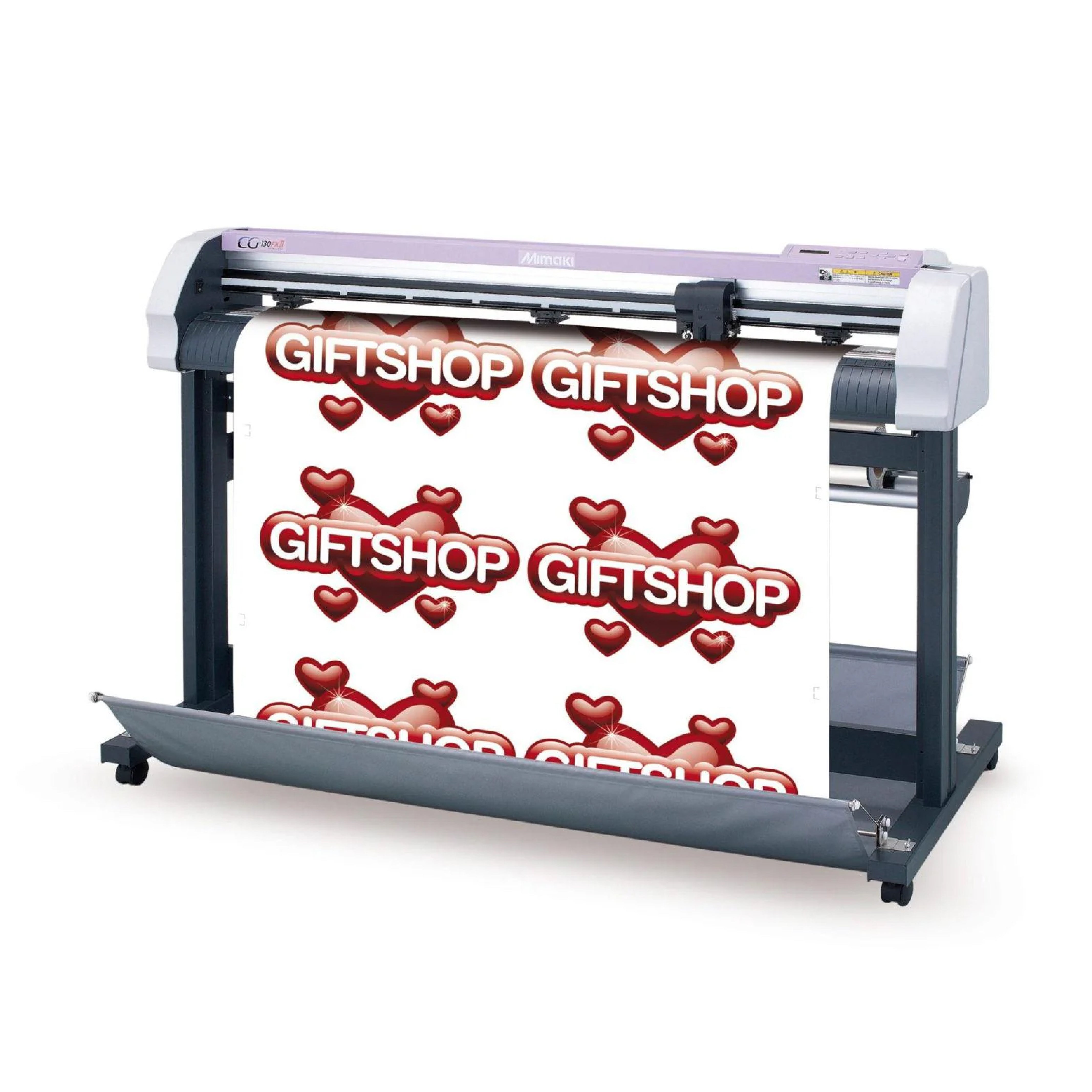

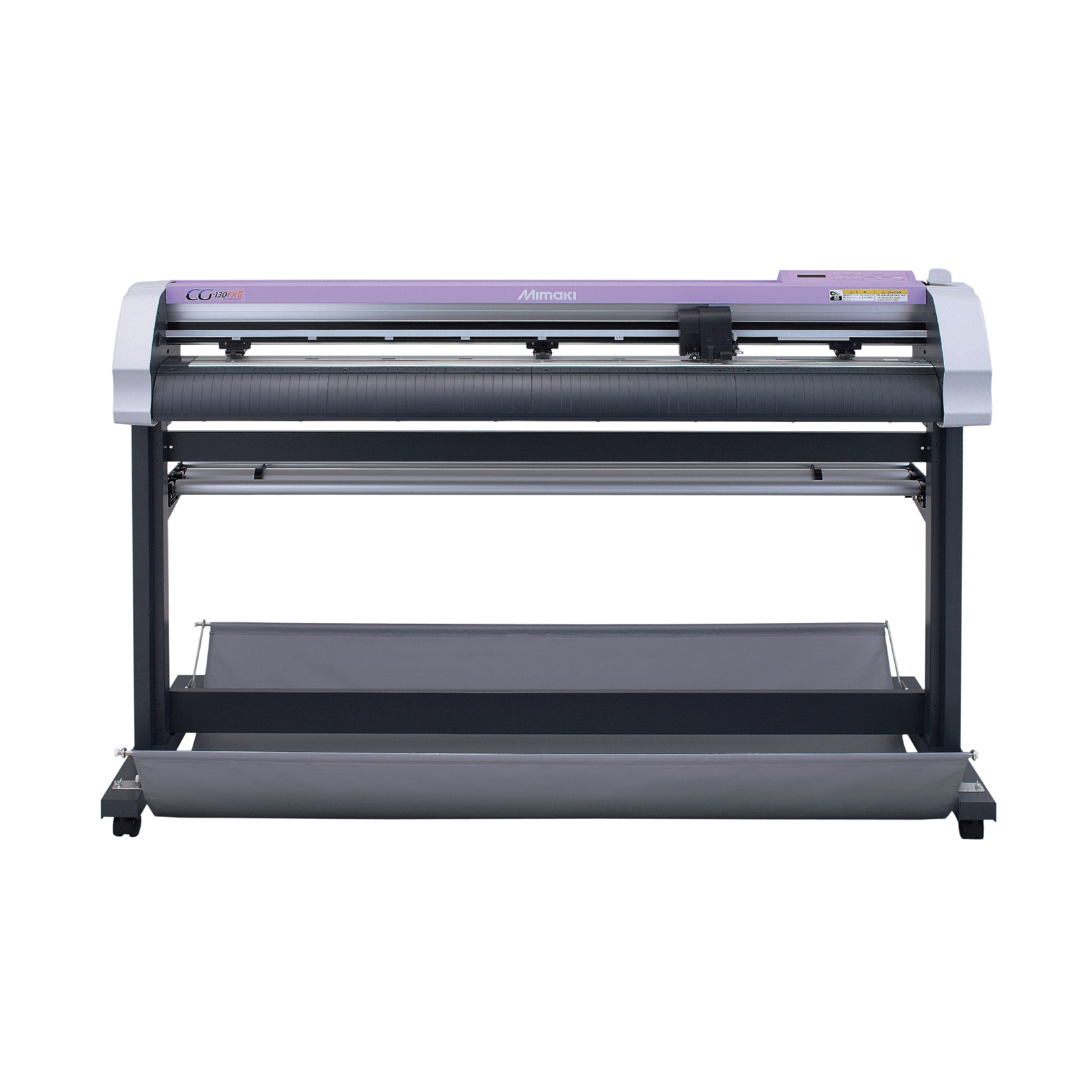

CG-FXII Plus Roll-Based Cutting Plotters

Engineered for performance and reliability, the CG-FXII Plus Series combines advanced features with user-friendly operation. Whether you’re running a sign shop, apparel business, or print production house, Mimaki’s FXII Plus cutters provide the accuracy and flexibility needed for detailed contour cuts across a wide range of vinyl media types.

The proprietary half-cut function retains weeded images on the backing for easier handling, and continuous crop mark detection allows for accurate registration even with long runs. With variable speed ranges and support for specialty media like reflective or fluorescent vinyl, these plotters offer commercial-grade output in a durable, streamlined package.

Key Features:
• High-speed precision cutting: up to 39.3 in/s

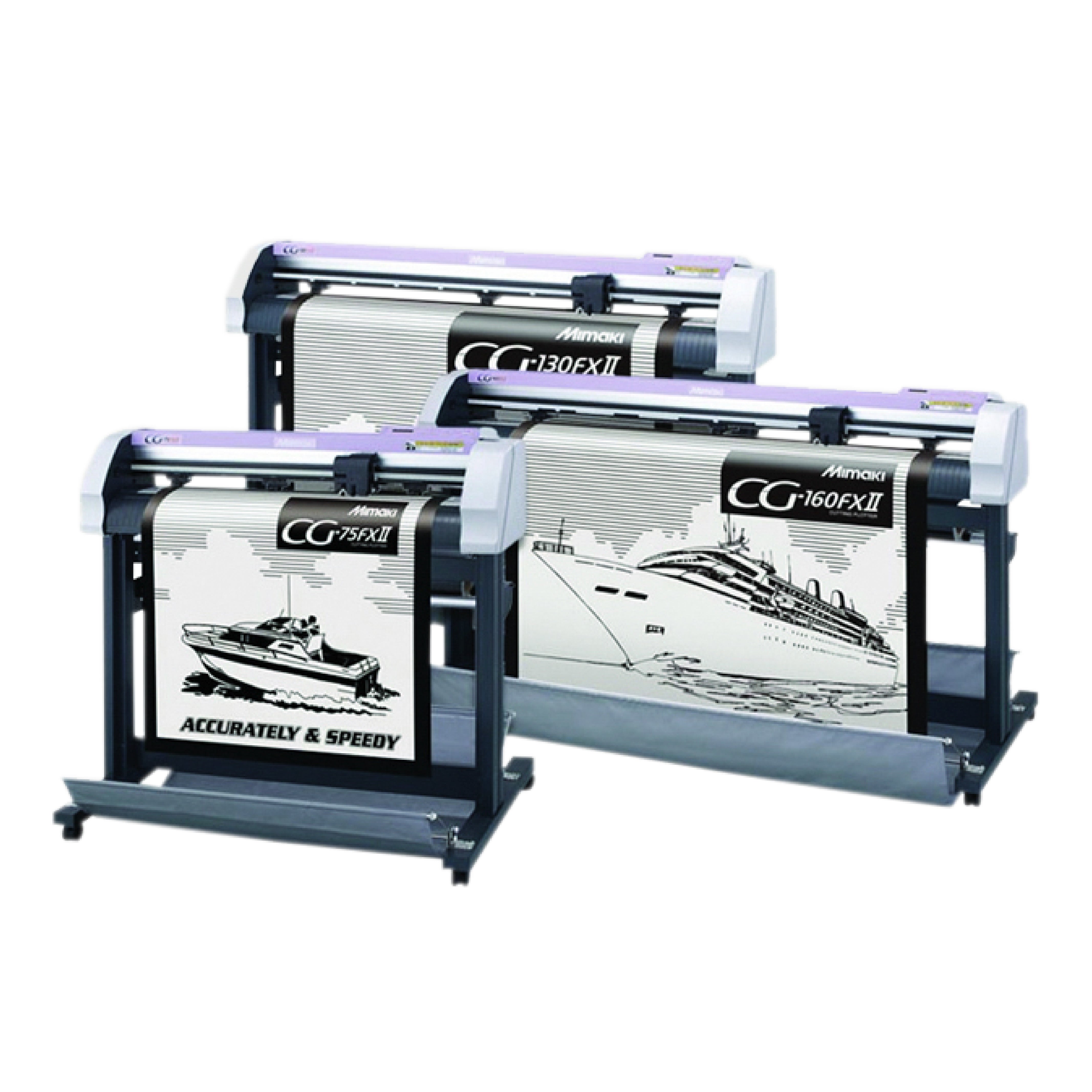

• Available in three models: CG-75FXII Plus, CG-130FXII Plus, CG-160FXII Plus
• Cuts vinyl, fluorescent vinyl, reflective sheet, and more
• Half-cut function for better media handling
• Continuous crop mark detection for contour cutting
• USB and RS-232C connectivity

• CG-75FXII Plus: 3.54” – 40.9”
• CG-130FXII Plus: 3.54” – 62.0”
• CG-160FXII Plus: 3.54” – 74.0”

Cutting Area
• CG-75FXII Plus: 29.9” x 167’
• CG-130FXII Plus: 51.2” x 167’
• CG-160FXII Plus: 62.9” x 167’

Cutting Speed
• Max Cutting Speed: 39.3 in/s (in 45° direction, pen-up)
• Max Moving Speed: 55 in/s
• Adjustable Speed Range:
• CG-75FXII Plus: 0.39”–3.94” in 0.39” steps
• CG-130FXII Plus: 3.94”–19.68” in 2” steps
• CG-160FXII Plus: 19.68”–39.37” in 3.94” steps

Media Compatibility
• Vinyl sheets up to 0.01” thick
• Fluorescent and reflective vinyl

Mechanical Resolution
• 5 μm

Interfaces
• RS-232C
• USB

Dimensions (W × D × H)
• CG-75FXII Plus: 50.5” × 27.5” × 47.9”
• CG-130FXII Plus: 71.8” × 27.5” × 47.9”
• CG-160FXII Plus: 83.6” × 27.5” × 47.9”

Weight
• CG-75FXII Plus: 104 lbs (47 kg)
• CG-130FXII Plus: 137 lbs (62 kg)
• CG-160FXII Plus: 154 lbs (70 kg)
