JFX200 Series Wide Format UV-LED Flatbeds

Unlock new creative possibilities with the Mimaki JFX200 Series, available in two industrial flatbed models: the JFX200-2513 EX and the JFX200-2531. These UV-LED printers are built to handle demanding production environments while maintaining stunning print quality and media versatility.

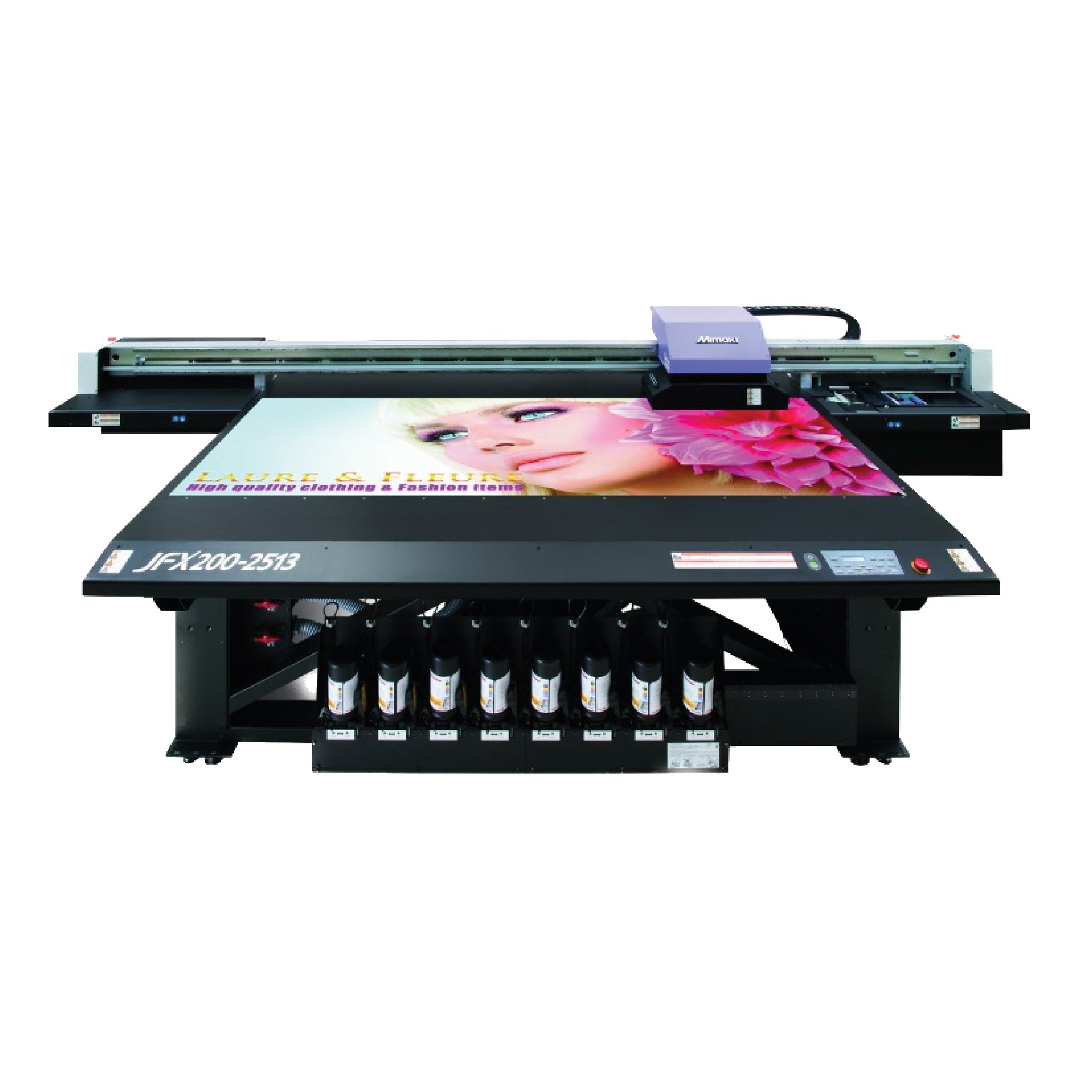

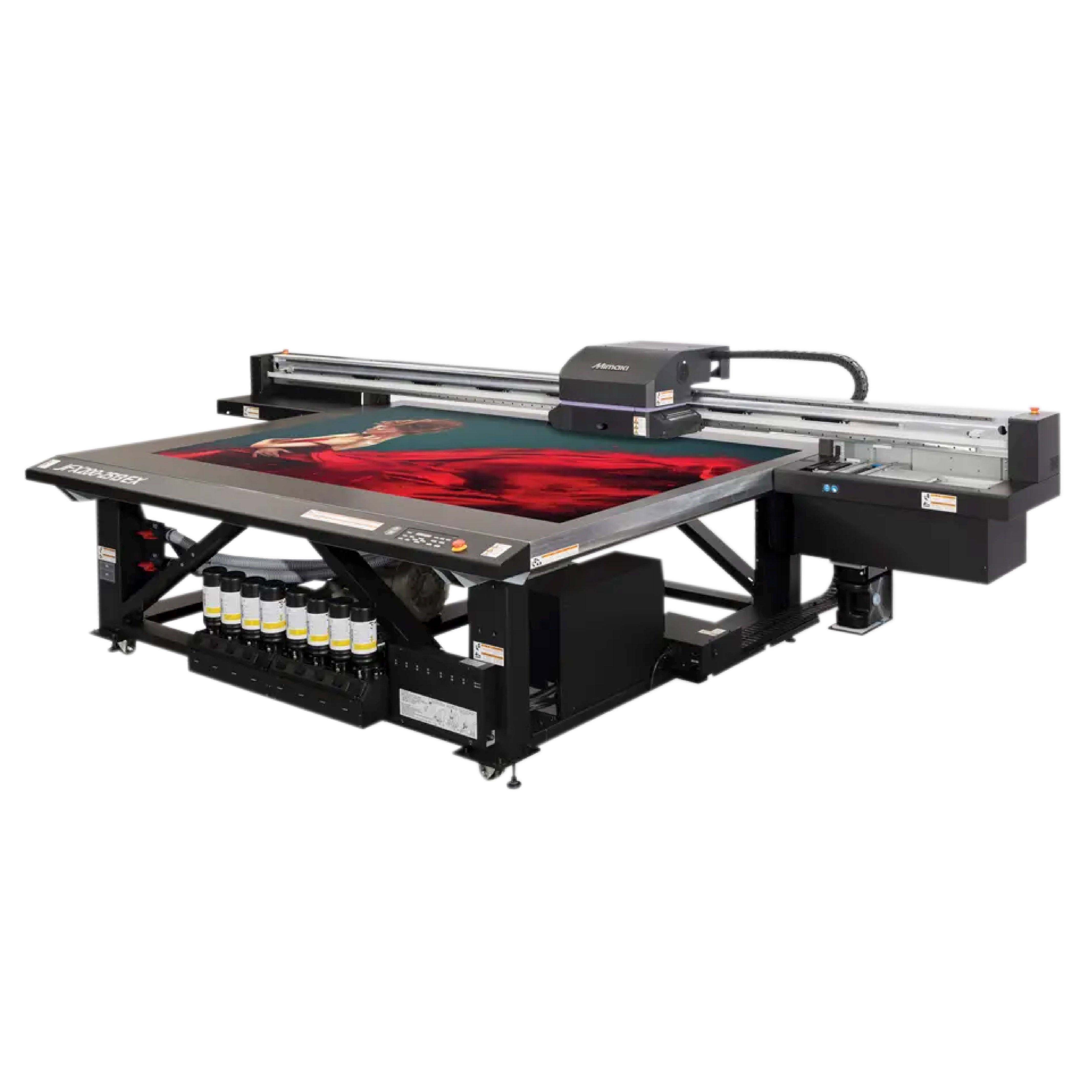

The JFX200-2513 EX is perfect for standard 4’ x 8’ media with a compact footprint and features three staggered printheads for fast production—even with white or clear inks. Ideal for signage, panels, and dimensional prints, it includes dual vacuum zones, user-adjustable layout pins, and a foot pedal to simplify loading.

The JFX200-2531 steps up productivity with an extended 8’ x 10’ bed, dual origin points, and independent vacuum pumps, allowing simultaneous dual-sheet printing. With Mimaki’s flexible UV ink options and integrated ionizer to reduce static, this machine is engineered for continuous, high-volume output.

Both models support a wide range of substrates and ink types—including rigid, flexible, and thermoforming-compatible inks—and offer 2.5D textured printing, GREENGUARD Gold certified inks, and updated RasterLink6 RIP software for complete production control.

• JFX200-2513 EX: Three staggered piezo heads
• JFX200-2531: Two staggered piezo heads
• Print Resolution: 300, 450, 600, 900, 1,200 dpi

Print Speed (4C Mode)
• JFX200-2513 EX: Up to 377 sq.ft/hr (31.9 m²/h)
• JFX200-2531: Up to 269 sq.ft/hr (25 m²/h)

Print Area
• JFX200-2513 EX: 98.4″ x 51.2″ (2500 x 1300 mm)
• JFX200-2531: 98.4″ x 122.0″ (2500 x 3100 mm)

Media Handling
• Max Media Thickness: Up to 1.97″ (50 mm)
• Max Media Weight: 10.2 lb/ft² (50 kg/m²)
• Vacuum Zones: Dual-zone (both models)
• Ionizer Bar: Included on JFX200-2531

Ink Compatibility
• Rigid Ink: LH-100
• Flexible Inks: LUS-120, LUS-150
• Thermoforming Ink: LUS-350
• Ink Configuration: CMYK, White, Clear

Connectivity
• JFX200-2513 EX: Ethernet 1000BASE-T, USB2.0
• JFX200-2531: USB2.0 Hi-speed

Power Requirements
• JFX200-2513 EX: 200–240V AC, single phase, ≤12A (2.88 kVA)
• JFX200-2531: 200–240V AC, dual inlets, ≤8A each (4.8 kVA)

Operational Environment
• Temperature: 59° – 86° F (15–30°C)
• Humidity: 35–65% RH (non-condensing)

Dimensions & Weight
• JFX200-2513 EX: 173.2″ x 96.4″ x 49.2″ / 1433 lbs. (650 kg)
• JFX200-2531: 173.2″ x 168.9″ x 49.2″ / 2205 lbs. (1000 kg)

Certifications
• CE, FCC Class A, ETL, RoHS, UL, VCCI, CB Report, Energy Star, RCM, EAC
