Mimaki

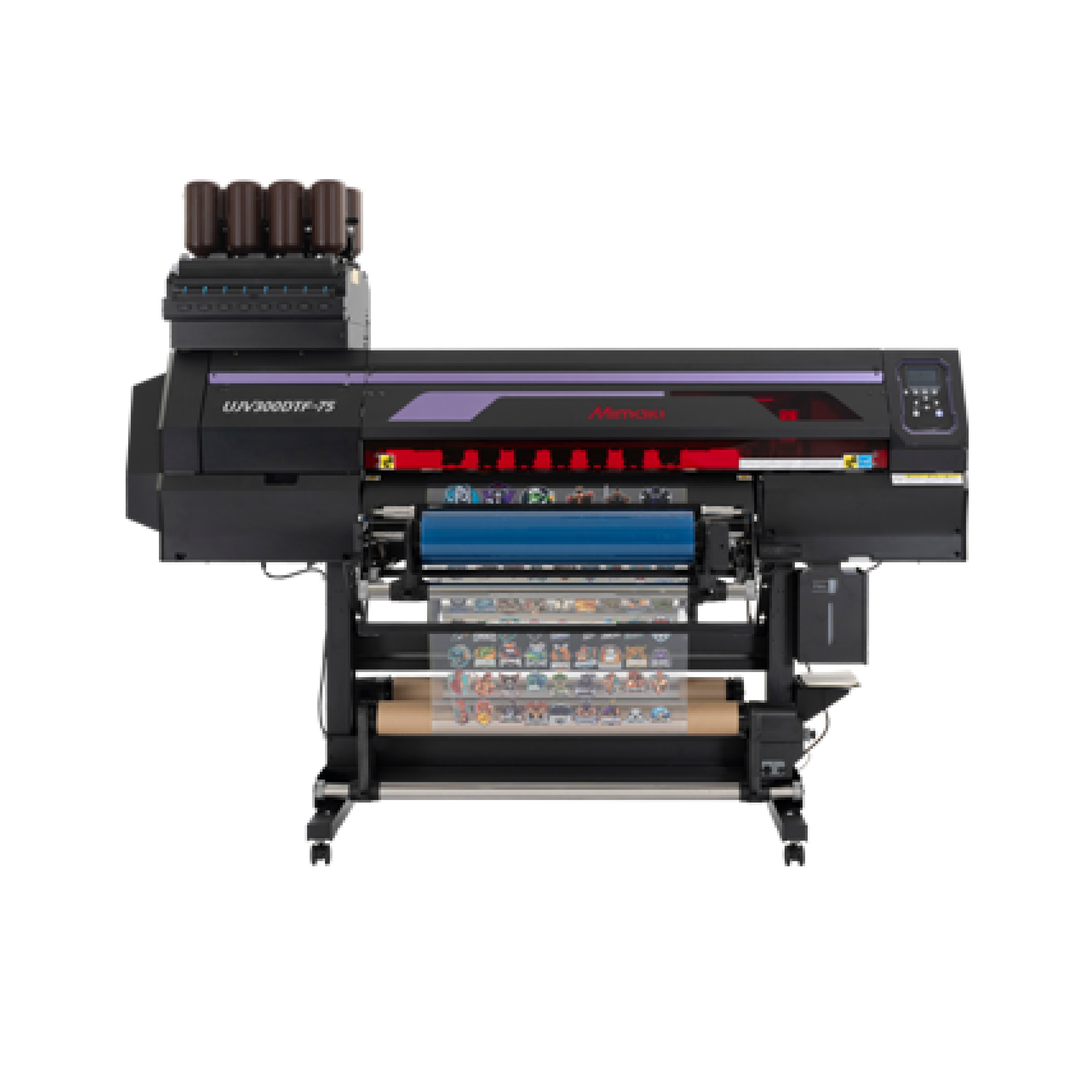

UJV300DTF-75 Roll to Roll Printer

$0.00 CAD

The Mimaki UJV300DTF-75 is a compact, all-in-one UV-DTF roll-to-roll printer that streamlines direct-to-film transfer production with vibrant prints, automated lamination, and effortless workflow—perfect for customizing irregular and curved surfaces.

About The Product

The Mimaki UJV300DTF-75 is Mimaki’s first dedicated UV Direct-to-Film (UV-DTF) solution, designed to simplify and accelerate custom decoration workflows. This roll-to-roll printer delivers vivid, high-resolution prints using next-generation UV-curable inks, producing transfers that can be applied to a wide range of surfaces—flat, curved, rigid, or flexible—without the need for weeding.

With its automated inline lamination, compact footprint, and one-touch media loading, the UJV300DTF-75 is built for efficiency and ease of use. Advanced media handling features, including specialized film rollers and a stable feed system, ensure consistent performance even with delicate transfer films.

Whether you’re producing custom apparel, hard goods, promotional items, or curved surface graphics, the UJV300DTF-75 enables fast, durable, and high-impact results—making it a perfect fit for both small businesses and high-demand production environments.

Product Specs

Printhead: Two on-demand piezo heads
• Print Resolution: Up to 1,200 dpi
• Maximum Print Width: 25.2” (640 mm)
• Maximum Media Width: 25.6” (650 mm)
• Maximum Media Diameter: 9.84” (250 mm)
• Maximum Media Weight: Up to 99 lbs (45 kg)
• Ink Configuration:
• UV-curable flexible ink ELS-170 (CMYK)
• UV-curable hard ink ELH-100 (White, Clear)
• Configuration: 4C+4SP (CMYK + WWClCl)
• Interface: Ethernet 1000 BASE-T / USB2.0 Hi-Speed
• Power Supply: AC100–120V / 200–240V ±10%, 50/60Hz ±1Hz
• Power Consumption:
• 100V: 1,440W or less
• 200V: 1,920W or less
• Operational Environment:
• Temperature: 68–86°F (20–30°C)
• Humidity: 35–65% RH (non-condensing)
• Dimensions (W x D x H): 82” x 37” x 58” (2,090 × 930 × 1,475 mm)
• Weight: 367 lbs (180 kg)
• Certifications:
VCCI Class A, FCC Class A, ETL (IEC62368-1), CE (EMC, Low Voltage, RoHS), CB Report, ENERGY STAR, RCM, KC
