Multigraf

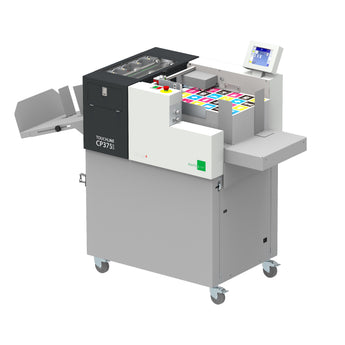

CP375 Mono Crease and Perf

$0.00 CAD

The Touchline CP375 MONO for perforating (stop or continuous, lengthwise or crosswise) and professional comb creasing fulfils long-cherished wishes of the graphic arts industry. Tools are changed easily using a patented, fully automated changing device. The tools used are detected electronically and the required pressure is set automatically. Additional tools can be accommodated in the slide-in compartments.
Download Brochure
Product Description

Creasing and Perforating in One Pass
Efficiently crease and perforate in a single operation. No need to handle sheets multiple times. Perforate in both directions down to 60gsm.

Rotary Perforation Module
Equipped with a rotary perforating tool for smooth, consistent micro- or full-perforations in longitudinal direction.

Unique Solution for Perforating NCR Paper
Perforate NCR paper with exceptional accuracy and consistency – a feature not commonly found in standard finishing equipment. Ideal for flawless perforation on multipart forms, invoices, or receipts.

User-Friendly Touchscreen Interface
Intuitive setup and control via a colour touchscreen. No tools required to change job settings or positions.

Top-Feed Vacuum Belt System
Handles a wide range of media weights and formats with excellent feeding reliability, even for digitally coated stocks.

Automatic Job Change
Switch between jobs at the push of a button. Perfect for short-run, high-variety workflows.
Product Specifications

General Functions
• Perforation (lengthwise and crosswise) – stop and continuous
• Professional comb creasing
• One-pass dual processing

Paper Handling
• Feeder system: Suction feeder
• Feeder capacity: 180 mm (7”)
• Paper size (min): 105 × 148 mm (4.13” × 5.83”)
• Paper size (max): 375 × 660 mm (14.75” × 26”)
• With table extension: 375 × 1050 mm (14.75” × 41.3”)
• Paper stocks (perforating): 80–300 gsm*
• Paper stocks (creasing): 80–400 gsm*
(*Depending on material quality)

Tooling & Automation
• Tool system: Multigraf Quick-Set (interchangeable)
• Tool detection: Fully automatic
• Pressure adjustment: Automatic for each tool
• Tool storage: Slide-in compartments for quick access
• Rotary perforation heads: Up to 4 for lengthwise perforation

User Interface & Features
• Control panel: Touchscreen
• Double sheet detection: Ultrasonic sensor
• Side guide system: Precision-adjusted via touchscreen for accurate feed
• Delivery belt: Optional shingling system
• Reception tray height: 120 mm (4.75”)

Performance
• Speed: Up to 6,000 sheets/hour (job dependent)

Physical Specifications
• Dimensions: 1900 × 600 × 1200 mm (74.8” × 23.6” × 47.2”)
• Weight: 128 kg (282 lbs)
• Power: 100–240 VAC, 50/60 Hz
