Multigraf

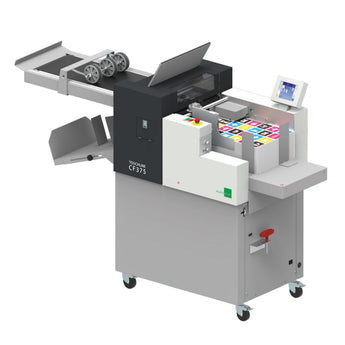

Touchline CF375 Creasing and Folding

$0.00 CAD

The CF375 by Multigraf is a high-performance automatic creasing and folding system engineered for demanding digital and offset print finishing environments. Featuring patented Swiss technologies like the Swing-Bar™ Creasing System and Pro-Knife™ Folding System, this machine delivers precise, fiber-friendly creases and sharp folds—even on heavy media, all at speeds up to 5,000 sheets per hour.
Download Brochure
Product Description

The Multigraf Touchline CF375 is designed for high-volume, high-precision creasing and folding, delivering exceptional reliability and automation in one compact system. It features Multigraf’s unique Swing-Bar™ System, which prevents cracking by gently compressing the paper during creasing, preserving fibres even on coated stocks. Crease depth is set automatically, with multiple groove positions for tailored results across various paper types and weights.

At the folding stage, the Pro-Knife™ System ensures clean and consistent folds—even with paper stocks up to 400 gsm—thanks to high-pressure folding rollers and knife-based action. Its dual delivery sections separate folded from non-folded products, allowing efficient output handling.

Touchscreen control, ultrasonic double-sheet detection, and precision paper alignment make the CF375 ideal for fast-paced environments like commercial print shops, in-plants, and production houses needing flawless finishing for brochures, greeting cards, invitations, menus, and more.
Product Specifications

General Functions
• Creasing and folding in a single pass
• Fully-automatic groove depth settings
• Up to 20 creases per sheet
• Handles paper stocks up to 400 gsm

Creasing & Folding Technology
• Creasing system: Multigraf Swing-Bar™
• Folding system: Multigraf Pro-Knife™
• Creasing styles: Up to 2 styles in 1 job
• Crease depths: 3 automatic levels
• Minimum crease distance: 30 mm (1.18”)
• Folding length range: 39–320 mm (1.54”–12.6”)
• Number of folds per sheet: Up to 2

Paper Handling
• Feeder system: Suction feeder
• Feeder capacity: 180 mm (7.08”)
• Paper size (min): 105 × 148 mm (4.13” × 5.83”)
• Paper size (max): 375 × 660 mm (14.75” × 26”)
• With table extension: 375 × 1,050 mm (14.75” × 41.3”)
• Paper alignment: Lateral registration via touchscreen
• Double sheet detection: Ultrasonic sensor

Delivery & Output
• Dual delivery trays: For creased only and creased + folded
• Delivery belt height: 328 mm (12.9”)
• Speed: Up to 5,000 sheets/hour (A4)

Physical Specifications
• Dimensions: 1,780 × 600 × 1,230 mm (70” × 23.6” × 48.4”)
• Weight: 195–240 kg (430–529 lbs)
• Power: 230 V, 50/60 Hz, 10A
