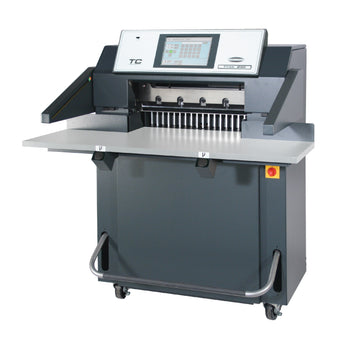

Titan 230TC Paper Cutter

$0.00 CAD

Today’s print market places great demands on your business. Investments in cutting-edge wide format, inkjet, and digital print engines ensure you meet your customer’s diverse needs. Finish your upgrades with a Challenge Titan 230.


The Titan 230 is built on a foundation of solid cast iron and steel construction for maximum durability. UHMW gib surfaces, composite bushings, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation.

Download Brochure
Product Description

Machine Features:
Fully hydraulic cutting and clamping
Solid cast iron and steel construction ensure years of trouble-free operation
Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
Bright red LED line light is easy to see and needs no future replacement
Optional air table
Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage
U/L Labelc - ULce
TC Control Features
10.5" Color Touch Screen control panel
Electronic Clamp Pressure control
USB port for simple thumb drive program entry
Ability to receive .csv files making offline programming and memory storage simple
Repeat and Loop commands streamline program entry
Auto-programming features of sheet division and label cutting with animated graphics
Programmable Clamp pressure per cut
Automatic Fraction to Decimal Conversion
Unlimited program storage capacity
Program Lockout
Computer Diagnostic Tools
ANSI safety standard compliant and CE, UL and cUL Listed

Product Specifications

General:
Maximum Cutting Width 23" / 58.4cm
Minimum Cut w/o False Clamp Plate 1/2" / 13mm
Minimum Cut w/ False Clamp Plate 1-7/8" / 48cm
Maximum Cut Depth 24" / 61.0cm
Clamp Opening w/o False Clamp Plate 3-1/4" / 8.3cm
Clamp Opening w/ False Clamp Plate 3" / 7.6cm
Clamping Method Hydraulic and Manual
Backgauge Control Motor Powered (TC controlled)
Dimensions
Table Space (in front of knife) 24-1/4" / 61.6cm
Table Space (behind knife) 24" / 61.0cm
Total Height 53" 135cm
Total Width 50" / 127cm
Total Length 66" / 168cm
Pass through opening (w/o beams & switch) 39" / 99cm
Pass through opening (w/o table & treadle) 29" / 73.7cm
Net Weight (approximate) 1000 lbs / 454 kg
Shipping Weight (approximate) 1120 lbs / 508 kg
Electrical
Motor Type Standard Motor
Hydraulic Pump 1-3/4 H.P. One Phase, 60 Hz, AC
Power option 1 208/230 Volts, 12 Amps (service size 15 Amps)
Power note Requires receptacle type: NEMA 6-15R or 6-20R
