Multigraf

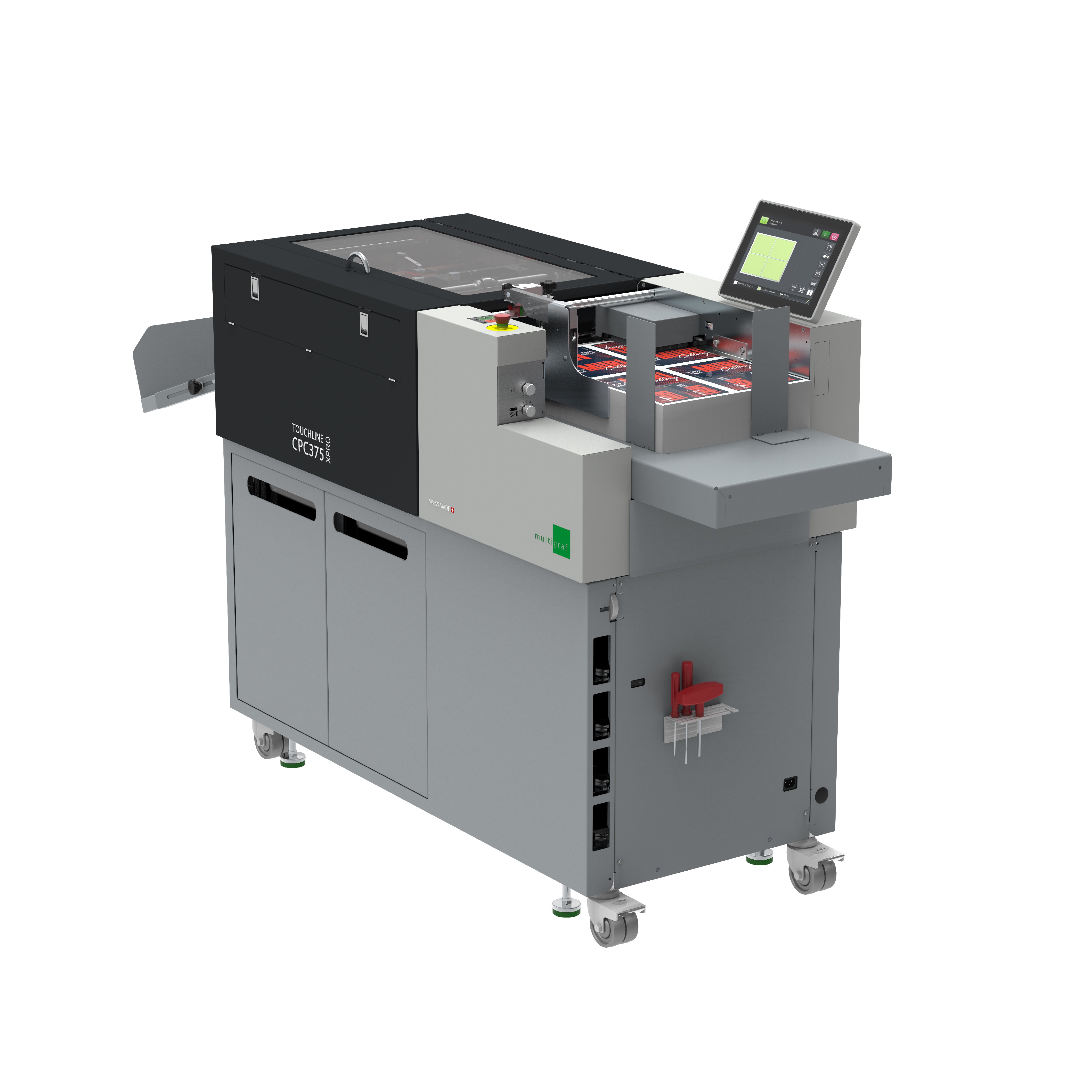

Touchline CPC375 XPRO Cut/Slit/Perf/Crease

$0.00 CAD

The CPC375 XPRO Multifinisher is a high-speed, all-in-one finishing solution. It performs creasing (up and down), cross and lengthwise perforating, cutting, slitting, (folding when paired with the TF375 XPRO, 2- or 3-up), and more, all in a single pass. With extremely short set-up times and tool changes that take only seconds, the machine delivers exceptional efficiency. It also features automatic job recognition via barcode, enabling full auto-adjustment for seamless operation. Ideal for producing 6 or 8 page brochures and business cards in seconds, the CPC375 XPRO eliminates manual steps and accelerates finishing without compromise.
Download Brochure
About The Product

All‑in‑One Finishing
Handles cross and lengthwise creasing, slitting, perforating, cutting (and folding when paired with TF375 XPRO) all in one pass. Capable of finishing up to 6,000 sheets/hour and approximately 35,000 business cards per hour.

Smart Barcode Reader
Detects jobs automatically to eliminate manual setup steps. Automatic tool setup with fast changeovers via an intuitive touchscreen.

Flexibility
Processes a wide range of paper thicknesses – up to 400 gsm for creasing/cutting, and up to 300 gsm for perforating. Multiple tools (1–4 perforation heads, up to 6 slitting heads) ensure configurability

High Capacity Feeding
Vacuum belt feeder holds up to 180 mm, with optional high-capacity Mistral feeder for longer formats.

Ultrasonic Double Sheet Detection
Incorporates ultrasonic sensors to detect double feeds, ensuring reliable operation and document integrity.
Product Specs

Feeder system: Vacuum belt feeder

Feeder capacity: 180 mm

Paper size minimum 105 x 148 mm

Paper size maximum 375 × 660 mm (up to 1050 mm with optional table extension)

Paper stocks perforating: 80-300 gsm or max. 0.3 mm (Paper stocks depending on material quality)

Paper stocks creasing: 80-400 gsm or max. 0.4 mm (Paper stocks depending on material quality)

Paper stocks cutting: 80-400 gsm or max. 0.4 mm (Paper stocks depending on material quality)

Control panel: Touchscreen

Double sheet detection: Ultrasonic

Dimensions: (L x W x H): 3’920 x 600 x 1300 mm (with folding unit, table extension, and bridge)

Weight: 465 kg

Electrical connection: 100-240 V, 50/60 Hz
