Afinia

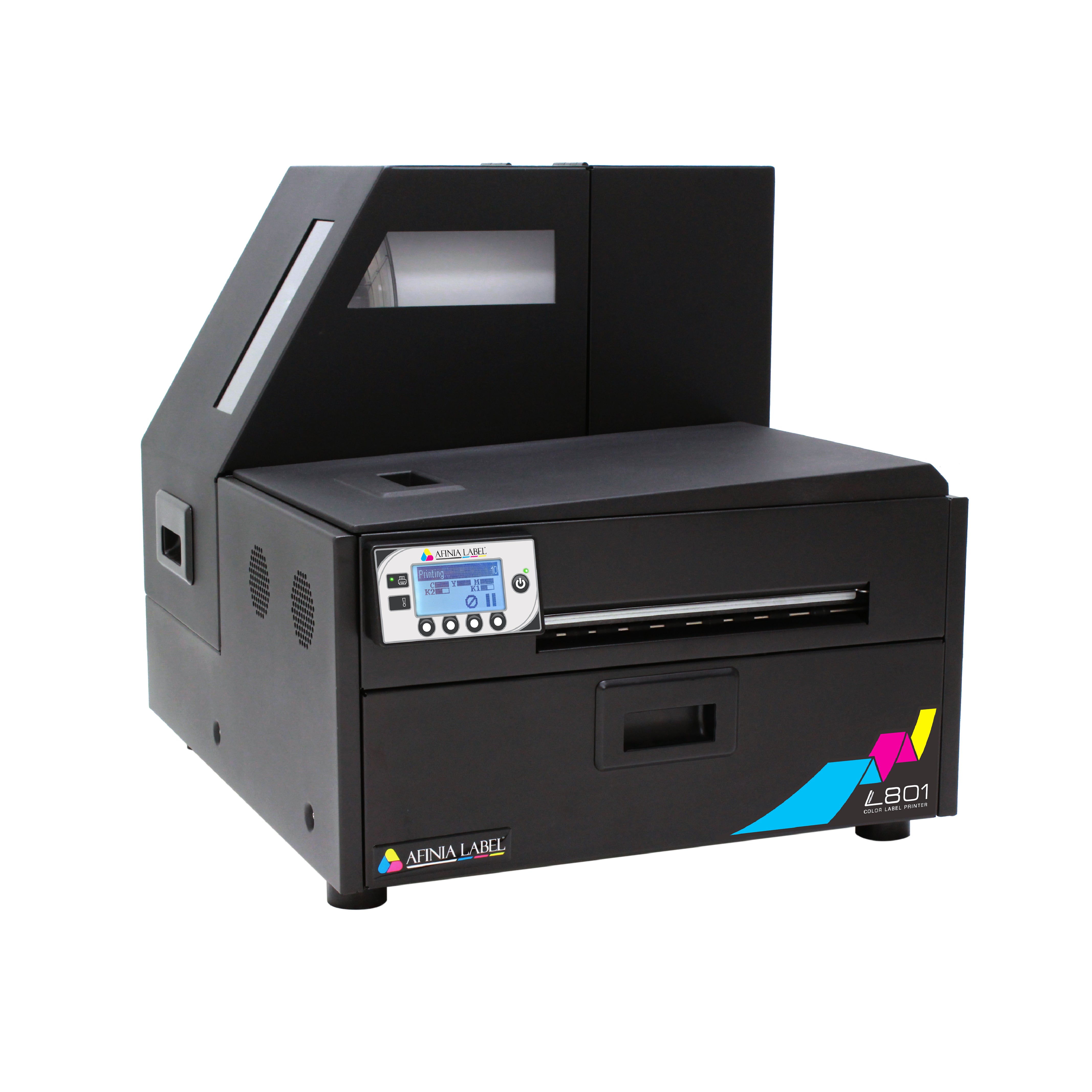

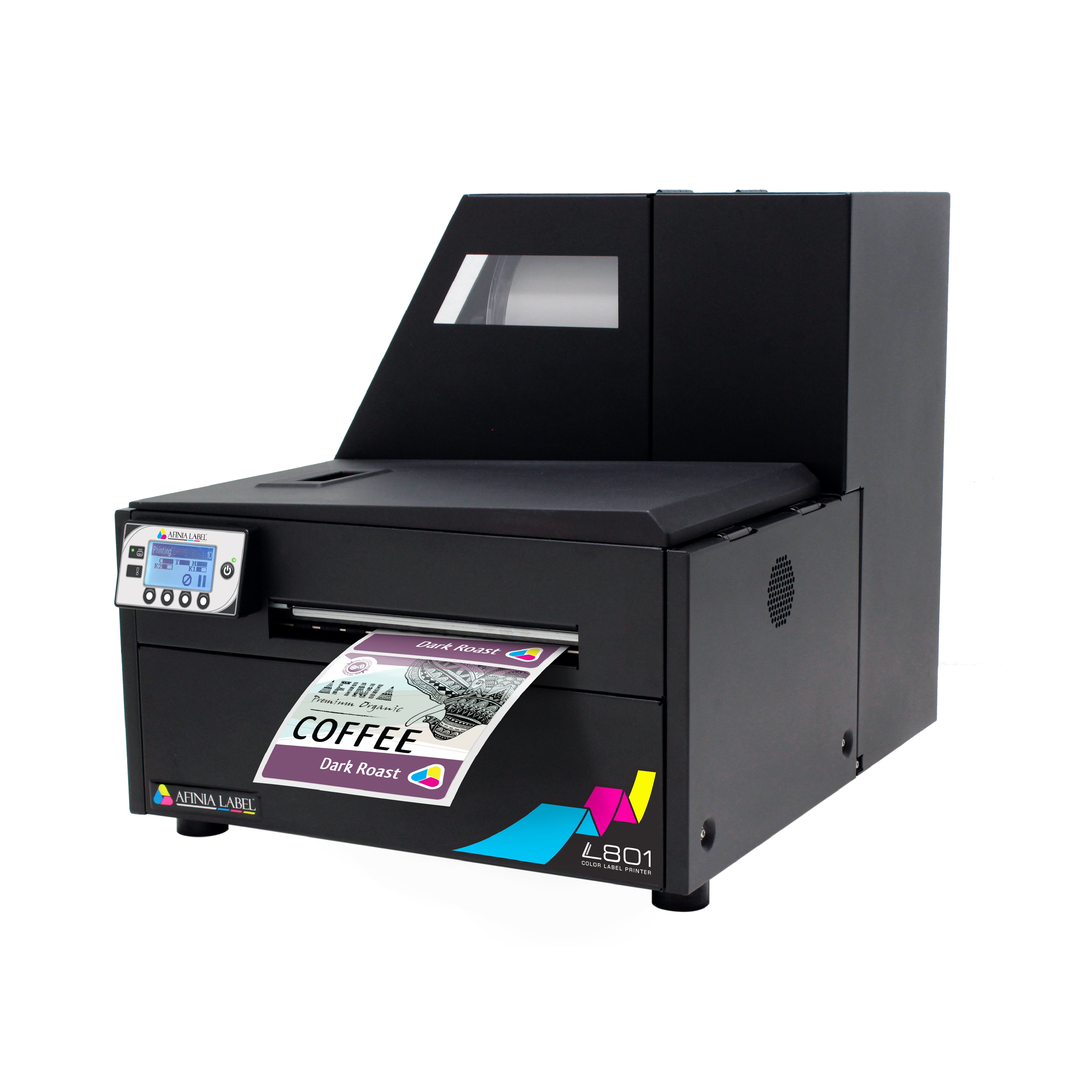

L801 Commercial Colour Label Printer

$0.00 CAD

The Afinia L801 is a high-speed, full-colour label printer designed for mid- to high-volume production. Powered by Memjet® technology, it delivers vibrant prints, sharp detail, and industry-leading low ink costs—making it the ideal choice for businesses that need professional results and cost efficiency.

About The Product

Engineered for continuous or roll-to-roll label production, the L801 is built to handle demanding print environments. It prints up to 60 feet per minute, with stunning 1600 x 1600 dpi resolution for crisp barcodes, vibrant images, and deep blacks. Compatible with a wide variety of label materials—paper, polyester, polypropylene, and vinyl—it easily adapts to prime and secondary labelling for industries including food & beverage, health, chemical, and logistics.

For more demanding environments, the L801 Plus model features Watershield™ water-resistant inks, ideal for chilled or moisture-exposed products.

Designed with efficiency in mind, the L801 holds 1.25 litres of dye-based CMYKK ink and includes an integrated unwinder for media rolls up to 8” in diameter. An optional powered rewinder supports roll-to-roll production, helping you scale with ease.

Whether you’re printing a few hundred or thousands of labels, the L801’s fast setup, low operating costs, and powerful Memjet printhead make it a best-in-class solution for digital label production.

Product Specs

Print Technology
• Method: Memjet Waterfall Printhead Technology® (70,400 nozzles)
• Resolution: 1600 x 1600 dpi or 1600 x 800 dpi
• Speed: 6”–12” per second (up to 60 ft/min)
• Ink Type: Dye-based, CMYKK (250 mL x 5 = 1.25 L total)
• Print Width: Up to 8.5” (216 mm)
• Cutter/Sheeter: Powered

Media Handling
• Label Width: 2”–8.5” (50.8–216 mm)
• Label Length: 2”–48” (50.8–1220 mm)
• Media Thickness: 0.005”–0.01” (0.13–0.3 mm including liner)
• Core Diameter: 3” (76.2 mm)
• Max Roll Diameter: 8” (203 mm)
• Sensors: Gap, continuous, black mark
• Compatible Substrates: Paper, polyester, polypropylene, vinyl

Connectivity & Compatibility
• Interfaces: USB 2.0, TCP/IP (DHCP/manual), GPIO (for external control)
• Operating System: Windows 7+ (32/64-bit)
• Barcode Capability: 1D (Code39), 2D (PDF417) with minimum Grade B readability

Physical & Electrical
• Dimensions: 18.9” W x 19” D x 21.1” H (480 x 485 x 535 mm)
• Weight: 83 lb (37.6 kg)
• Voltage: AC 110V–220V, auto-sensing
• Operating Temp: 15°–35°C (59°–95°F), RH 20–80%
• Warranty: 1 Year

Optional Accessories
• Roll-to-roll powered rewinder for continuous production
• L801 Plus model with Watershield™ water-resistant inks
