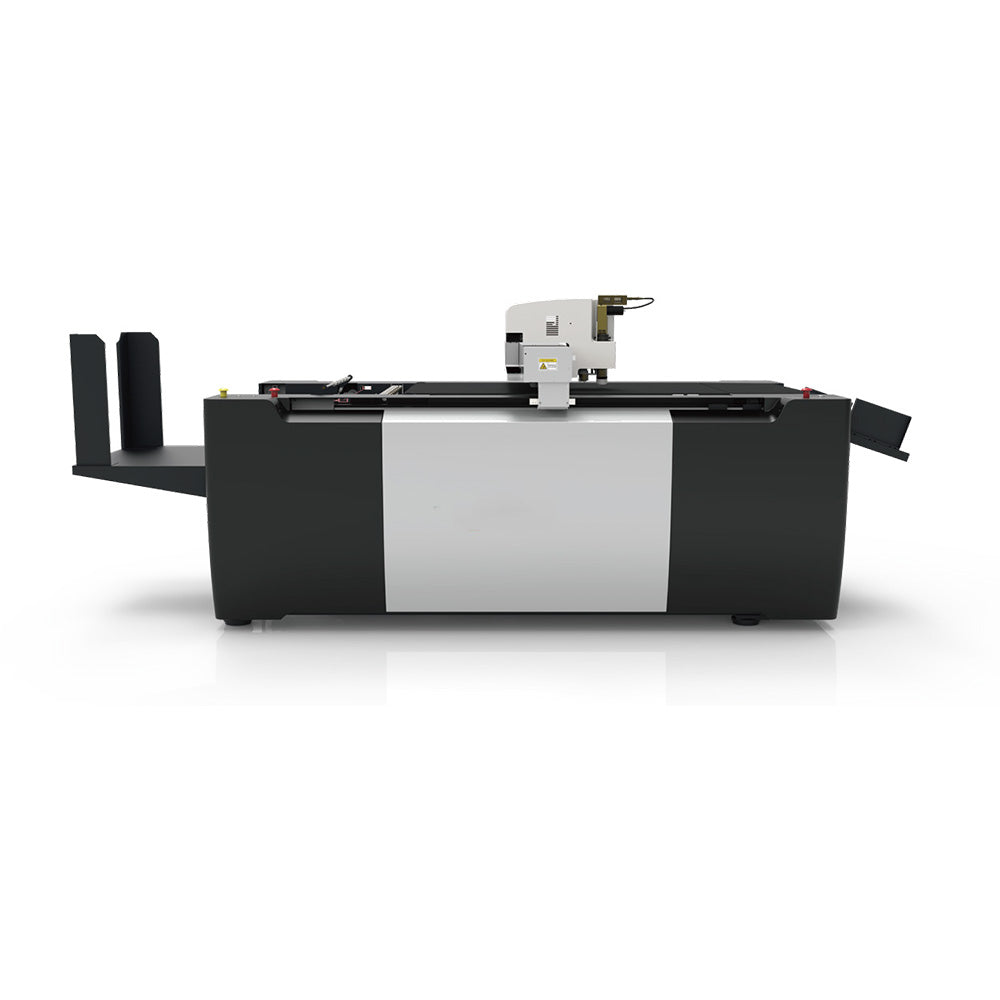

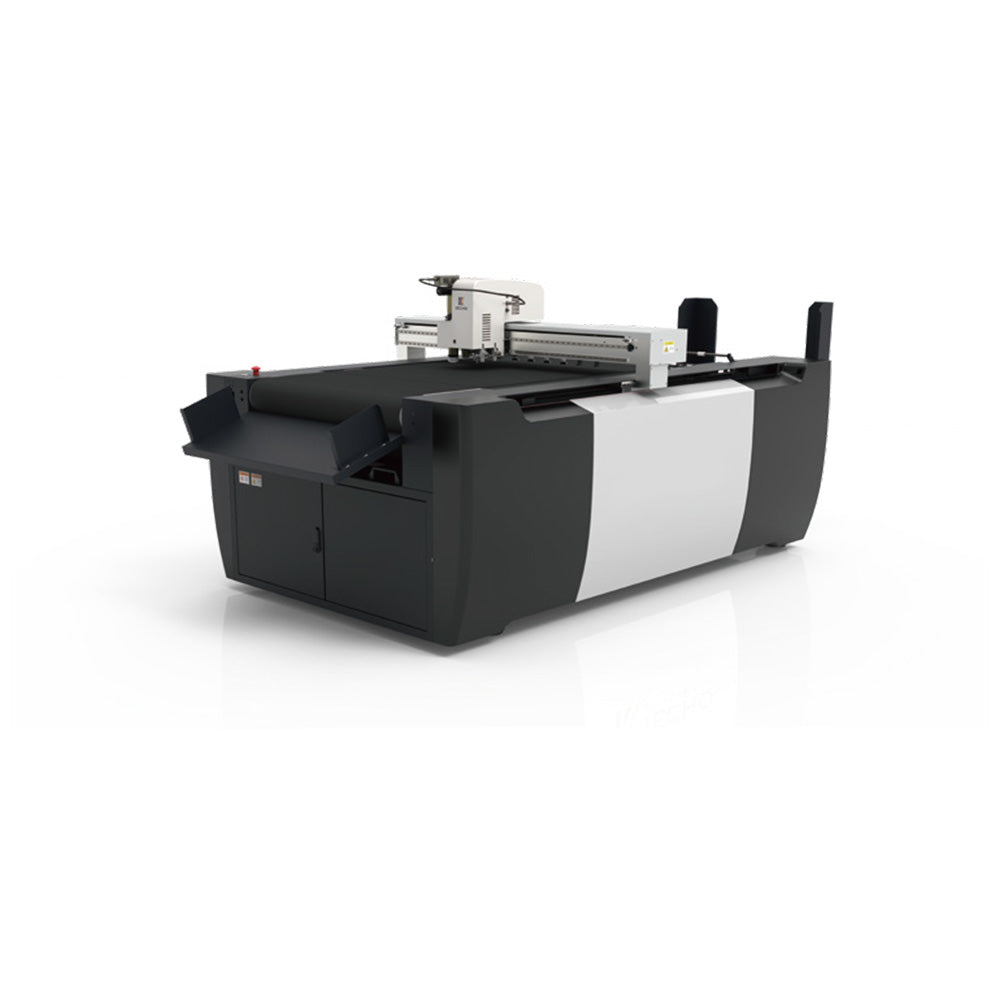

Komodo B1 MAX Digital Cutting System

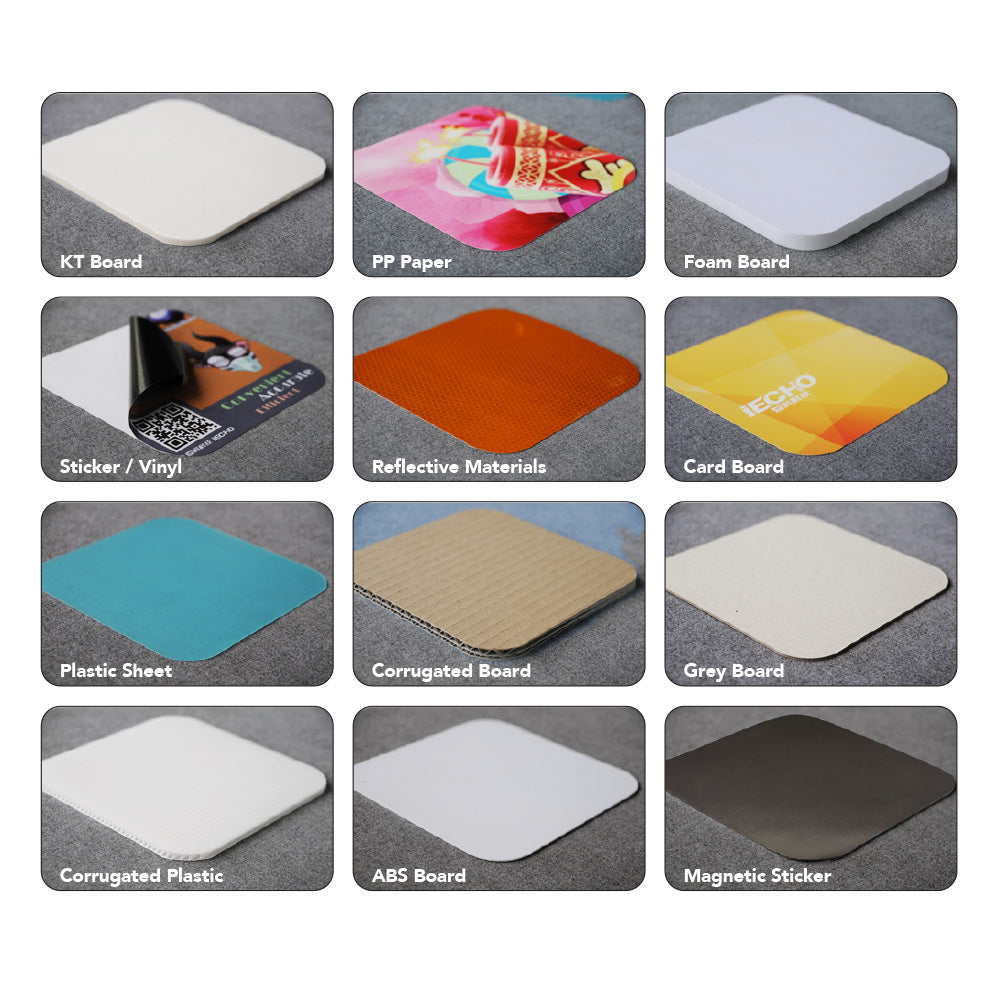

Equipped with multiple cutting tools, the B1 MAX can perform cutting, creasing, scoring, and kiss-cutting on a variety of materials, making it ideal for labels, packaging prototypes, signage, and other custom applications. Automatic feeding, unloading, and camera registration systems enable efficient, continuous production with minimal operator involvement.

Ideal for sample making and short-run production in the sign, print, and packaging industries, the B1 MAX is a cost-effective solution that combines productivity, versatility, and precision.

Cutting Range: 39.4" x 27.8" (1000 x 707 mm)

Supported Paper Sizes: A1, A2, A3, A4, B1, B2, B3, B4

Machine Dimensions: 84.6" × 55.1" x 47.2" (2150 × 1400 × 1200 mm)

With range extender board and blanking board: 113.8" × 55.1" x 47.2" (2890 × 1400 × 1200 mm)

Packaging Dimensions: 89.8" × 63.8" x 61.8" (2280 x 1620 × 1570 mm)

Weight: 700 kg (net), 850 kg (gross)

Loading Table Limit: 260 kg (weight), 15.7" (400 mm) (height)

Options: Touchscreen Computer, Coil Feeding, Automatic Knife Initialization, Air Compressor

Conveyor System: Sucker

Maximum Cutting Thickness: 0.63" (16 mm)

Tool Configuration: 4 fixed knife holders (0.9mm, 1.5mm, 1mm Creasing Wheel, EOTL), CCD, red light, 1 general-purpose tool holder (universal cutting tool such as CUT, KISSCUT, EOT2, MILL450 etc.)

Maximum Cutting Speed: 47.2 ips (1.2 m/s)

Cutting Precision: +-0.1 mm

File Format: DXF, PLT, PDF, HPG, HPGL, TSK, BRG, XML, CUT, OXF, ISO, AI, PS, EPS

Connector: USB

Air Pressure: 0.6 MPa

Suction Area: 2 areas, 2 pumps

Voltage: 220V 50Hz

Operation Environment: 0°C-40°C (temperature), 20%-80%RH (humidity)
