MBM

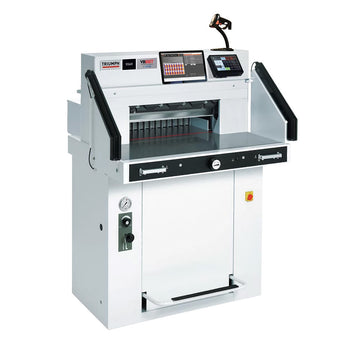

VRCut Ready Triumph 5560/5560 LT Paper Cutter

$0.00 CAD

The MBM VRCut Ready Triumph 5560 and 5560 LT programmable paper cutters deliver exceptional precision and reliability for high-volume cutting tasks. Equipped with a hydraulic blade and clamp drive, these cutters ensure smooth, accurate cuts every time. The power back gauge and digital touchpad simplify programming and operation, while the IR safety light beams on the front table enhance user safety. The 5560 LT paper cutter model comes with front and rear air tables (available by special order), providing additional support for larger jobs. Ideal for offices, print shops, and commercial settings, these durable cutters offer top-notch performance and precision for all paper-cutting needs.

More about the product

  • Programmable cutter with hydraulic blade and clamp drive, power back gauge, digital touchpad
  • Electric back gauge drive with touchpad for easy programming
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
  • Pre-programmed for standard paper sizes
  • Memory key for repeat cuts
  • Automatic set function for reference measurement and eject function for pushing out paper
  • Self-diagnostic system with error indication on display
  • Electronic back gauge control with variable speed control for manual back gauge setting
  • 5560 LT model equipped with front and rear air tables (available by special order only)
  • Foot pedal for pre-clamping
  • Clamp pressure is fully adjustable between 1,900 and 3,800 psi
  • False clamp plate. Bright, LED optical cutting line
  • Stainless steel work surface
  • High quality, German HSS blade
  • Precision swing cut blade movement
  • Aluminum blade carrier and clamp bar
  • Adjustable blade guides
  • All-metal construction
  • Mounted on casters
  • Includes an easy-access tool holder and paper blocking tool
  • Optional side tables increase the work surface
  • UL and C UL approved

The MBM Triumph 5560 and 5560 LT programmable paper cutters deliver exceptional precision and reliability for high-volume cutting tasks. Equipped with a hydraulic blade and clamp drive, these cutters ensure smooth, accurate cuts every time. The power back gauge and digital touchpad simplify programming and operation, while the IR safety light beams on the front table enhance user safety. The 5560 LT paper cutter model comes with front and rear air tables (available by special order), providing additional support for larger jobs. Ideal for offices, print shops, and commercial settings, these durable cutters offer top-notch performance and precision for all paper-cutting needs.



Without Air Table
  • Electric Paper Cutter
  • Cutting Width: 21 5/8″
  • Cutting Height: 3 3/4″ (3 5/8″ with false clamp)
  • Length Behind Blade: 22 7/16″
  • Narrow Cut: 1 1/4″ (2 3/8″ with false clamp)
  • Clamp Type: Adjustable Hydraulic
  • Electrical Requirements: 115 V, 60 Hz (20 amp dedicated line required)
  • Dimensions (D x W x H): 55″ x 42″ x 54″ (64 W with side tables)
  • Shipping Weight: 970 lbs. (1,008 with side tables)
  • Horsepower: 2
With Air Table
  • Electric Paper Cutter
  • Cutting Width: 21 5/8″
  • Cutting Height: 3 3/4″ (3 5/8″ with false clamp)
  • Length Behind Blade: 22 7/16″
  • Narrow Cut: 1 1/4″ (2 3/8″ with false clamp)
  • Electrical Requirements: 115 V, 60 Hz (20 amp dedicated line required)
  • Dimensions (D x W x H): 55″ x 42″ x 54″ (64 W with side tables)
  • Shipping Weight: 1,014 lbs. (1,052 with side tables)
  • Horsepower: 2
