Afinia

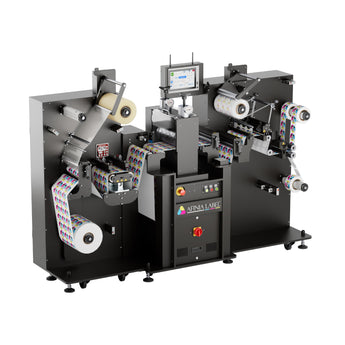

Afinia DC250/DC350 Semi-Rotary Die Label Finisher

$0.00 CAD

Pickup available at Print Digital Solutions Location

Usually ready in 2 hours

The Afinia DC250 and DC350 Semi-Rotary Die Label Finishers are powerful all-in-one systems designed to laminate, die cut, remove waste, slit, and rewind pre-printed label rolls into fully finished, ready-to-apply labels. Ideal for private labelers and large brands, these finishers deliver high-speed performance, accurate registration, and rapid job changeovers with magnetic die cylinders and flexible steel dies.

Produce custom labels in-house with precision and efficiency—perfect for high-volume applications in cosmetics, food and beverage, health care, and more. Gain full production control, reduce lead times, and elevate your brand with premium-finished labels.

About The Product

Precision Die Cutting
Automatic Web Guidance
High-Speed Efficiency
Versatile Material Compatibility

Product Specs

• Die Cutting Type: Semi-Rotary
• Speed: Up to 30 m/min
• Web Width: Up to 250 mm (9.84”) – DC250 / Up to 350 mm (13.78”) – DC350
• Max Die Cutting Width: 230 mm (9”) – DC250 / 330 mm (13”) – DC350
• Max Die Cutting Length: 360 mm (14.17”)
• Cutting Dies: Flexible steel (130 mm to 360 mm)
• Magnetic Cylinder: 18” – 2144 mod. 1/8
• Die Head Lateral Adjustment: ±25 mm
• Registration Sensor: Laser mark (4 mm x 4 mm / 0.16” x 0.16”)
• Lamination: Self-wound and supported laminate (on liner)
• UV Varnish Module: Yes
• Input Roll Diameter: Up to 500 mm (19.68”)
• Max Finished Roll Rewind: 400 mm (15.75”)
• Max Waste Matrix Rewind: 300 mm (11.81”)
• Minimum Slitting Width: 19 mm (0.75”)
• Slitting Blades: Up to 12 – DC250 / Up to 15 – DC350
• Core Holders: Mechanical or Pneumatic (3”)
• Power Requirements: 100–240V, 1Kw, 50/60Hz
• Dimensions (DC250): L 283 cm (111.5”) × W 72 cm (28.35”) × H 165 cm (65”)
• Dimensions (DC350): L 283 cm (111.5”) × W 100 cm (39.37”) × H 165 cm (65”)
• Afinia Part Numbers: DC250 – 40464 / DC350 – 40982
