Champion 305TC Paper Cutter

$0.00 CAD

The Challenge Champion 305 TC continues our well known excellence for innovation, reliability and durability. UHMW gib surfaces and composite bushings require virtually no maintenance for years of trouble-free operation. Standard features such as power soft clamp, air table, digital hand wheel, and automatic false clamp detection reduce operator fatigue and maximize productivity.


The Champion 305 meets the toughest safety standards in the industry today. Light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch contribute to our UL and CE certification.

Download Brochure
Product Description

Machine Features:
Up to 26 cuts per minute
Virtually maintenance-free design

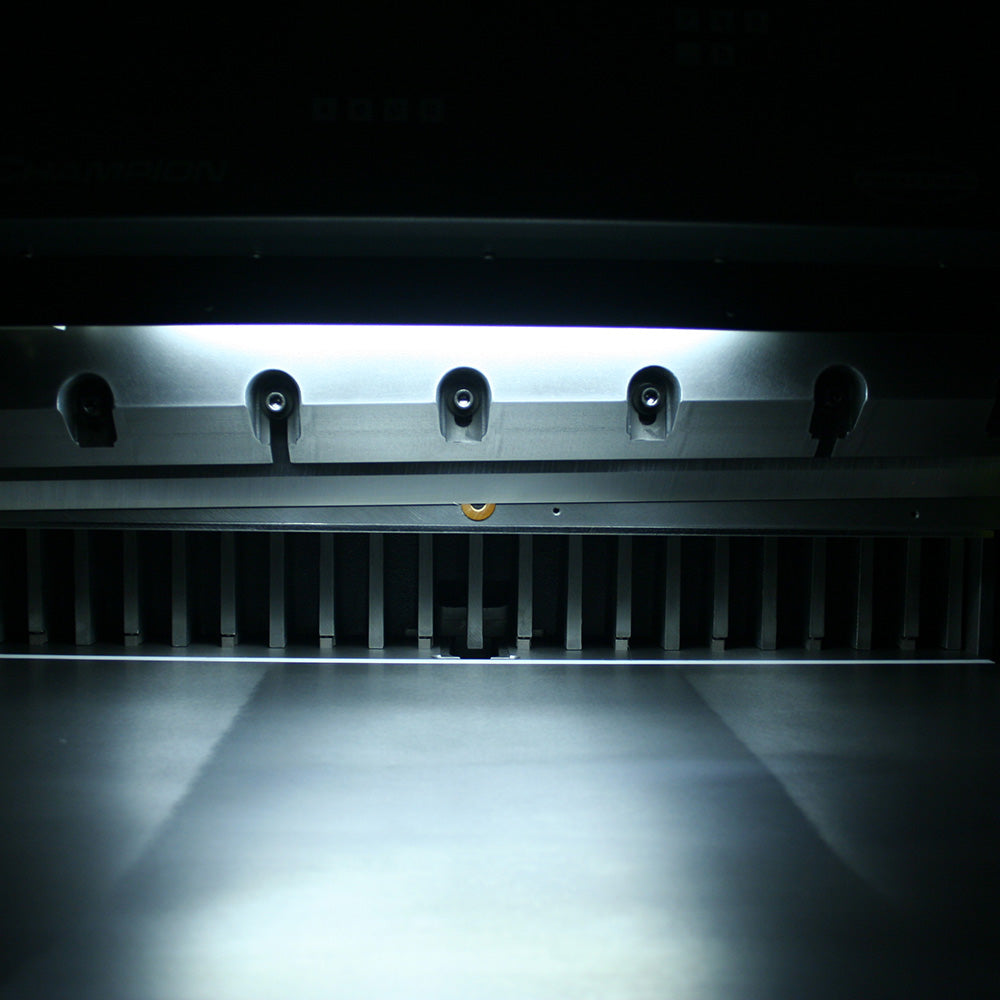

Fully-adjustable knife bar gibs (front and rear)
30.5" / 77.5 cm cutting width, 4" / 10.2 cm clamp opening
Hydraulic Clamping & Cutting
Line-Light Cut Position Indicator
Lighted Work Surface
False Clamp Plate
Cast Iron and Steel Construction
Low-pressure pre-clamping protects operator from injury (less than 66 PSI)
U/L Labelc - ULce
TC Control Features
10.5" Color Touch Screen control panel
Electronic Clamp Pressure control
USB port for simple thumb drive program entry
Ability to receive .csv files making offline programming and memory storage simple
Repeat and Loop commands streamline program entry
Auto-programming features of sheet division and label cutting with animated graphics
Programmable Clamp pressure per cut
Automatic Fraction to Decimal Conversion
Unlimited program storage capacity
Program Lockout
Computer Diagnostic Tools
ANSI safety standard compliant and CE, UL and cUL Listed

Product Specifications

General:
Maximum Cutting Width 30-1/2" / 77.5cm
Minimum Cut w/o False Clamp Plate 3/4" / 19mm
Minimum Cut w/ False Clamp Plate 2" / 5cm
Maximum Cut Depth 30-1/2" / 77.5cm
Clamp Opening w/o False Clamp Plate 4" / 10.2cm
Clamp Opening w/ False Clamp Plate 3-3/4" / 9.5cm
Clamping Method Hydraulic and Manual
Maximum Clamping Force 5000 lbs / 2200 daN
Backgauge Control Motor Powered (Manual version available)
Dimensions
Table Space (in front of knife) 25" / 63.5cm
Table Space (behind knife) 30-1/2" / 77.5cm
Table Height 36-1/2" / 94cm
Total Height 58-1/2" / 147cm
Total Width w/ side tables 78-1/2" / 200cm
Total Width w/o side tables 51" / 130cm
Total Length 71" / 180.4cm
Door Pass-through (assembled) 51" / 130cm
Door Pass-through (table+treadle removed) 42" / 106cm
Door Pass-through (table+treadle+power unit removed) 29" / 74cm
Net Weight (approximate) 2360 lbs / 1070 kg
Shipping Weight (approximate) 2700 lbs / 1225 kg
Electrical
Motor Type Standard Motor
Hydraulic Pump 5 H.P. Three Phase, 60 Hz, AC
Power option 1 208/230 Volts, 25 Amps (service size 40 Amps)
Power option 2 460 Volts, 11.5 Amps (service size 20 Amps)
Optional add-ons Single phase supply kit (K-3482)
