Duplo DPC 400

$0.00 CAD

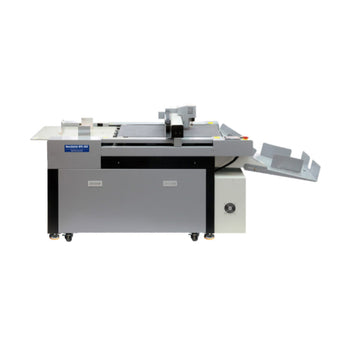

The DocuCutter DPC-400 Digital Die Cutter is designed for producing short-run packaging, custom-shaped cards, and labels on demand, ideal for prototypes and sample productions. It utilizes digital cutting technology on a flatbed table, eliminating the need for physical dies. With capabilities to cut, kiss cut, score, and perforate substrates like paper, laminates, adhesives, and synthetic stocks up to 400 gsm, it includes a triple tooling head and a scoring wheel for various finishing tasks. The DPC Controller software facilitates easy job preparation by defining cuts and other specifications in vector programs like Adobe Illustrator, with integration options for automated functions through Fiery JobFlow. Automated operation includes CCD registration for precise finishing and quick job changeovers, enhancing productivity with minimal downtime.
About The Product

Key features:
- Easy job file preparation and set up
- Automated registration and changeovers
- Integrates with Fiery JobFlow to apply registration marks and QR code
- Triple tooling head and DPC Controller software
- Flatbed Cutting On Demand
- Cuts, kiss cuts, scores, and perforates
- Handles small formats and various substrates
- Processes cut files without physical dies
Product Specs

Feeder Capacity: Up to 3.9” (10 cm)
Sheet Separation: Air powered, variable jet stream separation
Feeding System: Vacuum feed with clamps mounted on gantry
Sheet Size: Min. 8.5" x 11"/ Max. 14" x 20"
Paper Weight: 200 - 400 gsm
MANUAL FEED:
Sheet Size: Min. 8.5" x 11"/ Max. 15" x 23"
Paper Weight: 75 - 600 gsm
CUTTING CONTROL:
Tools: Cut through knife, kiss cut knife, scoring wheel
Cutting System: Digital signal platform
Blade: Tungsten steel
Productivity: 30 - 45 seconds per 14"x 20" sheet (depending on design complexity)
Max. Cutting Speed: 1,000 mm/second
Cutting Thickness: Up to 1.5 mm
Cutting Tolerance: ±0.1 mm
SOFTWARE AND CONNECTION:
Software (platform): DPC Controller (Requires PC with Windows 10 or 7, i3 Processor or higher, 4GB Ram or more, 1 Ethernet port, 1 available PCIe 1X or 16X)
File Format: PLT, DXF, XML, HPG
Network: LAN
GENERAL:
Standard Features: CCD camera registration system, 5 tools (J201 cutting knife, J202 cutting knife, J206 cutting knife, J208 cutting knife, and J380 scoring wheel), DPC Controller software (PC sold separately), and air compressor
Power Requirements: 220V 50/60Hz 20A, 4KW Air
Compressor Requirements: 0.7 HP, Tank Capacity 2.9 Gallons, 101 PSI, 1.41 CFM, 110 VAC
Dimensions: (LxWxH) Machine: 101.2” x 32.6” x 49.2” (2570.5 mm x 828 mm x 1249.7 mm) Shipping: 86.6” x 39.8” x 56.3” (2199.6 mm x 1010.9 mm x 1430 mm)
Weight: Net 915 lb/415 kg (Gross 997 lb/452 kg)
