Duplo DPC 600 PKG

Take on new markets with the DPC-600 PKG, an advanced B2 flatbed digital die cutter that delivers fast, automated finishing for packaging, signage, and display products. Whether you’re producing custom boxes, pocket folders, or POP retail displays, this system processes cut files digitally—eliminating traditional dies and reducing turnaround times.

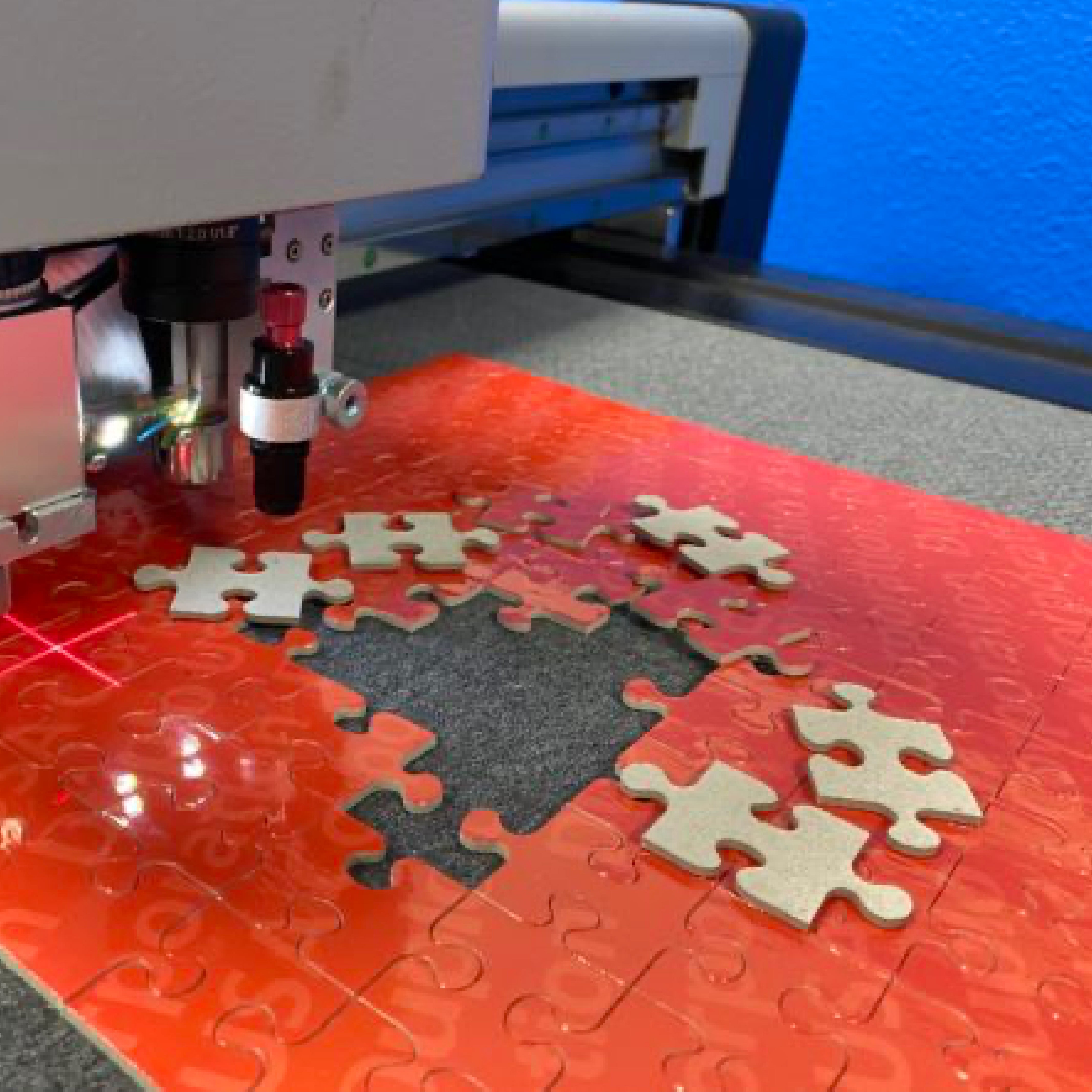

With a quadruple tooling head, the DPC-600 PKG comes equipped with a press cut tool for clean cuts up to 3 mm thick, active and drag knives for intricate shapes on paper and PET, and a scoring wheel for clean fold lines. The optional oscillating knife extends cutting thickness up to 6 mm, enabling jobs on corrugated, chipboard, and foam board.

A deep pile feeder with an 8” stack capacity enables continuous feeding of both coated/uncoated paper and non-paper substrates. Smart automation includes job file preparation, automated registration, and fast changeovers using the DPC Connect software.

Key Features:
• On-demand cutting, scoring, and perforating—no dies needed
• Quadruple tool head for handling a variety of materials and finishes
• Deep pile auto feeder with top air suction and sheet separation
• CCD camera registration for accurate alignment
• Fast cutting speeds and short changeover times
• Optional roll-to-sheet unit and oscillating knife for enhanced capabilities

Ideal Applications:
• Custom boxes
• Pocket folders
• POP retail displays
• PVC signage and prototypes

Cutting System:
• Maximum Cutting Thickness: Up to 6 mm
• Maximum Cutting Speed: 1,200 mm/second
• Cutting Tolerance: ±0.3 mm
• Productivity: 12–45 seconds per 13” x 19” sheet (design dependent)
• Tools: Tungsten steel blade, drag knife, active knife, scoring wheel, optional oscillating knife
• File Formats: AI, JPG, PDF, PSD, DXF, EPS

Feeding System:
• Sheet Size: Min. 11” x 17”, Max. 23” x 29.5”
• Feeder Capacity: Up to 8” stack
• Sheet Thickness: 200 gsm – 3.6 mm (auto feed), up to 6 mm (manual/oscillating knife)
• Sheet Separation: Air blower & separation pad
• Feeding System: Top feed with air suction

Software & Connectivity:
• Platform: DPC Connect (Windows 7 or 10, i5+, 4GB RAM+)
• Connectivity: LAN
• CCD camera for registration
• Includes: 4-port switch box, Ethernet cables, air compressor

Electrical Requirements:
• Cutter: 220V 50/60Hz, 20A
• Feeder: 110V ±10% 60Hz, 3A
• Air Compressor: 0.7 HP, 2.9-gal tank, 101 PSI, 1.41 CFM, 110V

Dimensions & Weight:
• Dimensions: 153” (L) x 35.4” (W) x 44” (H)
• Net Weight: 1,146 lbs
