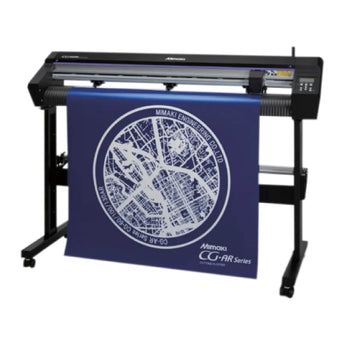

CG-AR Roll-Based Cutting Plotters

Precision meets versatility with the Mimaki CG-AR Series. Whether you’re producing window graphics, contour-cut stickers, or custom apparel transfers, this series delivers fast, reliable results across a wide variety of media.

Designed with intuitive operation in mind, the CG-AR supports continuous crop mark detection, half-cut functionality, and media loading from either front or back. The built-in Remote Event Notification keeps you updated on production, while included software like FineCut9, SimplePop, and Sure Cuts A Lot (with select models) expands your creative options.

Key Features:
• Available in 29” (CG-60AR) or 61” (CG-130AR) widths
• High-speed cutting: up to 28.7” per second
• Supports media up to 1 mm thick
• Continuous crop mark detection for precise contour cuts
• Easy-to-use with USB, Ethernet, or RS-232C connectivity
• Bundled software: FineCut9, SimplePop, and Sure Cuts A Lot (CG-60AR Craft Bundle)

Cutting & Media
• Max Media Width:
• CG-60AR: 29.1″ (740 mm)
• CG-130AR: 61″ (1550 mm)
• Max Cutting Width:
• CG-60AR: 23.9″ (600 mm)
• CG-130AR: 53.9″ (1370 mm)
• Max Media Thickness:
• Recommended: 0.01″ (0.25 mm)
• Max: 0.04″ (1 mm, may vary by material)
• Repeatability: ±0.2 mm / 2 m
• Cut Speed: Max 28.7″/s (73 cm/s)
• Moving Speed: Max 40.5″/s (103 cm/s)
• Cut Pressure: Up to 550g
• Blade Types: Multiple options including eccentric cutters, blades for small characters, reflective sheets, fluorescent sheets, PVC, heavy paper, and creasing tools
• Mechanical Resolution: X: 2.5 µm | Y: 5 µm

Software & Interface
• Included Software: FineCut9, SimplePop, Sure Cuts A Lot (with CG-60AR Craft Bundle)
• Command: MGL-IIc, MGL-Ic1
• Connection: USB, RS-232C, Ethernet
• Receive Buffer: 27MB (standard), 17MB with sorting

Power & Environment
• Power Supply: AC 100–240V, 1A, 50/60Hz
• Power Consumption:
• CG-60AR: 168W or less
• CG-130AR: 228W or less
• Operating Temp: 5–35°C (41–95°F)
• Operating Humidity: 35–75% RH (non-condensing)

Dimensions & Weight
• CG-60AR:
• Unit: 39.8″ x 14.0″ x 14.0″
• With Stand: 39.8″ x 22.8″ x 45.7″
• Weight: 37.5 lbs. (17 kg) / 59.5 lbs. (27 kg with stand)
• CG-130AR:
• 71.3″ x 22.8″ x 45.7″
• Weight: 94.8 lbs. (43 kg)
