Duplo

150i Booklet System

$0.00 CAD

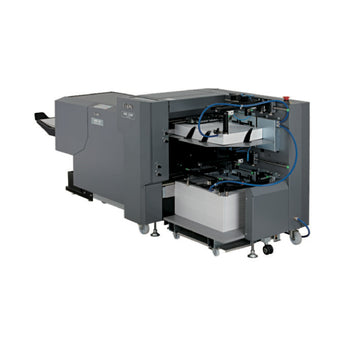

The Duplo 150i Digital Booklet System is an efficient, compact solution for producing professional-quality booklets directly from your digital press output. Ideal for short runs and on-demand applications, it streamlines the entire bookletmaking process with integrated feeding, stitching, folding, and trimming—all in one system.
About The Product

Engineered for performance and precision, the Duplo 150i Digital Booklet System is your go-to choice for creating saddle-stitched, side- or corner-stapled booklets with minimal setup. It combines the DBM-150S/T Bookletmaker and Trimmer with the DSF-2200 Sheet Feeder to handle pre-collated sets with speed and accuracy.

This entry-level system is built for digital environments, featuring two air-suction feeding bins with front/side separation and an anti-static device. It even offers a barcode reader option for variable data jobs. Whether you’re producing catalogs, manuals, or corporate reports, the 150i delivers high-quality results with a fast turnaround.

Its compact footprint makes it perfect for print shops and in-plant operations, and the intuitive LCD panel with 16-job memory ensures fast setup and changeovers. Optional PC controller software adds further convenience by managing job settings directly from your computer.
Product Specs

• Booklet Production Speed: Up to 1,720 booklets per hour
• Feeder Capacity:
• Tray A: 2.56”
• Tray B: 7.87”
• Input Paper Size: 4.72” x 8.27” to 12.60” x 18.11”
• Paper Weight Supported:
• Art Coated: 79 – 300 gsm
• Fine Quality: 52.3 – 300 gsm
• Max Sheets per Booklet: Up to 25 sheets
• Stapling Options: Saddle, Side, and Corner Stapling
• Control Panel: LCD with 16-job memory
• Optional Add-ons:
• 1D/2D Barcode Reader
• PC Controller Software
• Pre-loading Kit
