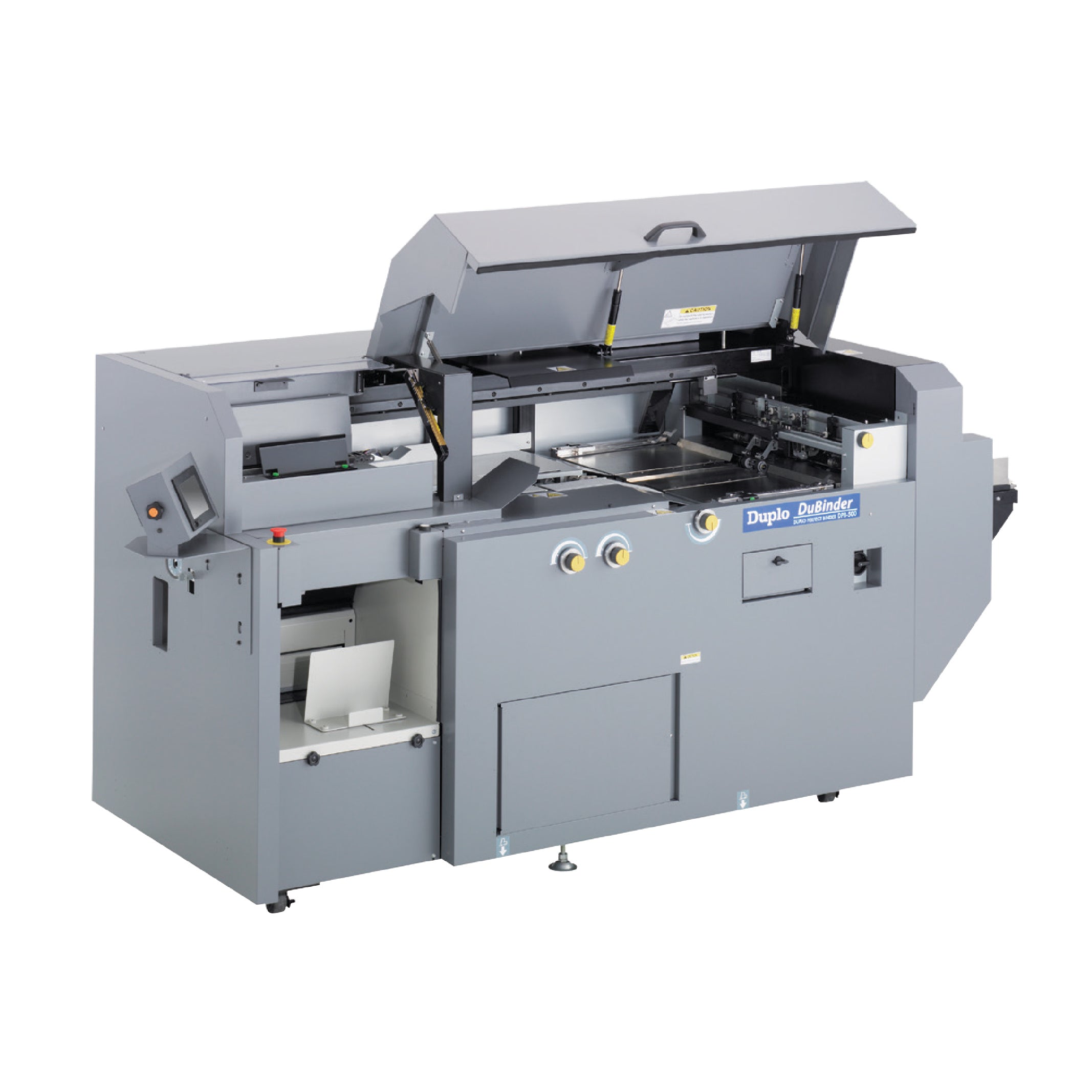

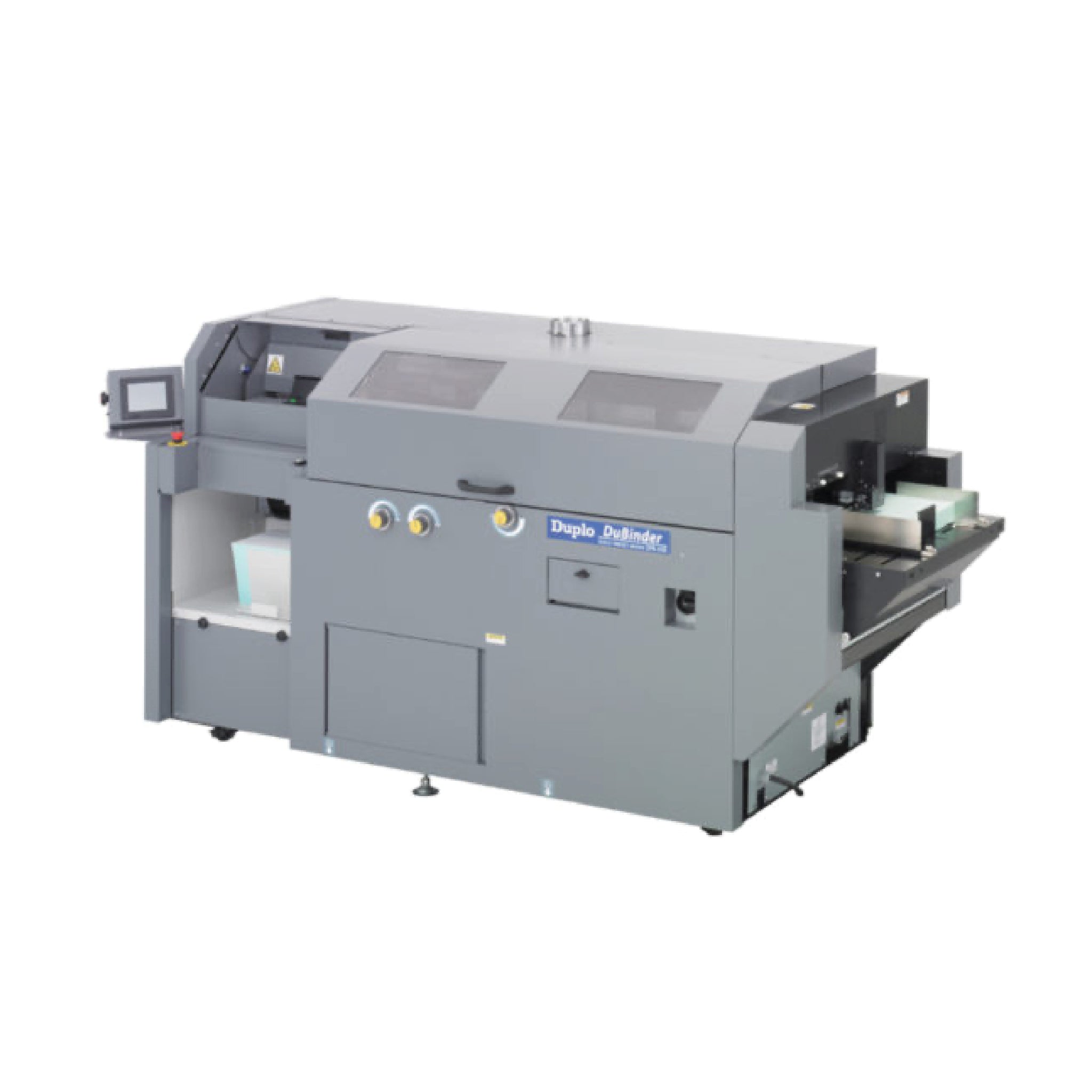

DPB-500 Perfect Binder

Engineered for efficiency and versatility, the Duplo DPB-500 Perfect Binder transforms loose book blocks into professionally finished softcover books with ease. This fully automated system handles everything from spine preparation to gluing and hinge scoring, all controlled through an intuitive touchscreen interface with 20-job memory storage. Designed for on-demand and variable thickness jobs, it features an automatic cover feeder with double feed detection, dual notching tools for stronger glue penetration, and a large-capacity glue tank with heated drums. Whether you’re producing short runs or custom one-offs, the DPB-500 offers exceptional quality and speed without manual setup—making it ideal for digital print environments, in-plant shops, and commercial print operations.

• Speed: Up to 525 cycles per hour
• Binding Thickness: 0.04” to 2.01”
• Input Paper Size:
• Book Block: 4.72” x 4.72” to 12.6” x 14.17”
• Cover: 4.72” x 9.84” to 14.17” x 27.4”
• Cover Feed Capacity: 2.76”
• Paper Weight Compatibility:
• Book Block: Fine quality 52–157 gsm, Art coated 79–157 gsm
• Cover: Fine quality 81.4–302 gsm, Art coated 104.7–302 gsm
• Features:
• Fully automated job setup and changeovers
• Two notching tools with dust extraction
• Automatic cover feeder with double-feed detection
• Touchscreen control panel with 20-job memory
• Optional Accessories:
• Barcode Kit
• DPB-LS Long Stacker
• Wing Scoring Unit
