Handy Drill

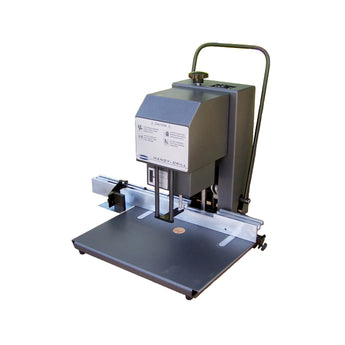

Compact, economical, and easy to operate, the Challenge Handy Drill offers professional drilling capabilities in a tabletop format. Built with a 2-1/2” lift capacity and supporting drill bits from 1/8” to 1/2”, this single-spindle unit is perfect for offices, copy centers, and print shops that need power in a smaller footprint.

Designed for safe and efficient operation, it features an automatic spindle return and a motor that powers on only when the handle is in use—reducing energy use and risk. Chip collector cups double as interlocked safety covers, preventing access to the drill while removed. The Handy Drill also includes four adjustable backgauge stops and manual side guide trip for easy setup and alignment.

Proudly manufactured in the USA, this drill is a durable solution for clean, precise hole punching.

Drilling & Adjustments
• Drill head operation: Manual hand lever
• Number of drill heads: 1
• Lift capacity: 2.5” (6.4 cm)
• Drill sizes: 1/8” to 1/2” (3–13 mm)
• Min. hole spacing: 3/8” center to center (9.5 mm)
• Max. drill-to-side guide: 9-7/8” (25.1 cm)
• Max. margin (hole center to sheet edge): 2.5” (6.4 cm)
• Backgauge: 4 adjustable stops
• Side guide trip: Manual

Dimensions & Weight
• Table size: 18” x 19” (46 x 48 cm)
• Overall dimensions: 24” W x 21.2” L x 22.4” H (61 x 53.9 x 56.8 cm)
• Floor space needed: 32” x 42” (81 x 107 cm)
• Net weight: 70 lbs (32 kg)
• Shipping weight: 90 lbs (41 kg)

Power Requirements
• Motor type: Standard AC motor
• Power: 115V, 2.7A, 60 Hz (15A recommended circuit)
