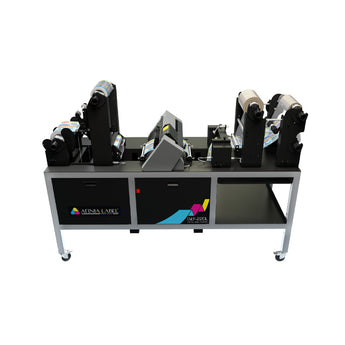

DLF-220L/DLF-350L Digital Label Finisher

Plotter-style label finishing system

Afinia’s Digital Label Finishers are systems that unwind, laminate, digitally contour cut, remove waste, slit, and rewind in one simple process to create professionally finished labels. These solutions are perfect for finishing on-demand, short-run label jobs printed on a digital color label printer.

This full-size finisher is available in two widths (8.6 in/220 mm and 13.75 in/350 mm web widths) and with or without lamination capability.

Print shops are also using digital die cut label finishing to offload short runs from larger, more expensive equipment or to add the capability to produce labels in-house—allowing for faster turnaround, better quality control, and more profitability on lower-volume label runs.

Cutting & Plotter System

• Cutting method: Plotter-style, digital contour cutting
• Registration: Single-point black-mark registration (4 mm square)
• Cut to registration: Yes
• Cutting force: 20 gf – 300 gf (31 steps)
• Max cut speed: 600 mm/s (24 in/s) in all directions
• Test cut function: Yes
• Software: DLF-220 Cutter Management Tool (Windows OS); Plug-ins for Adobe Illustrator & CorelDraw
• Interface: USB 2.0
• Media compatibility: Printed & unprinted

Roll Handling

• Input/Output Roll Max Diameter: 250 mm (9.84”)
• Roll Core Size: 76 mm (3”)
• Minimum Media Width: 110 mm (4.33”)
• Maximum Media Width:
• DLF-220L: 225 mm (8.86”)
• DLF-350L: 350 mm (13.77”)
• Maximum Cutting Width:
• DLF-220L: 200 mm (7.87”)
• DLF-350L: 330 mm (13”)
• Minimum Slitting Width: 19 mm (0.75”)
• Number of Slitting Blades:
• DLF-220L: Up to 12
• DLF-350L: Up to 19
• Media Thickness (Max): 0.25 mm (10 mil)
• Label Length (Min/Max): 10 mm (0.39”) / 450 mm (17.71”)
• Lamination Module: Optional (built-in variant)

Power & Dimensions

• Power Requirements: 100–240 VAC, 240 W
• Dimensions (W x H x L):
• Width: 70 cm (27.56”)
• Height: 145 cm (57.06”)
• Length: 200 cm (78.74”)
• Weight:
• DLF-220L: 235 kg (518 lb)
• DLF-350L: 245 kg (540 lb)
