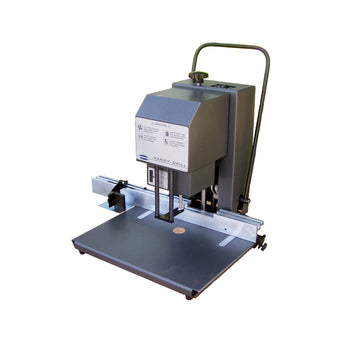

Challenge

Handy Drill

$0.00 CAD

The Challenge Handy Drill is a heavy-duty, American-made tabletop paper drill built for safety, convenience, and reliable performance in small to mid-volume print finishing environments.

The Handy Drill is a simple yet highly effective tool designed for table-top use! Heavy duty and American made, this machine will streamline your drilling needs for years to come. Economical, convenient, and safe to operate, what more could you ask for!

Saftey features included such as automatic Spindle return. The Spindle motor automatically turns on when the pull-down lever is moved and switches off when the lever returns to the up position.

Located around the spindle, the chip collector cups include a sight gauge to signify when the cups are full and need to be emptied. The cups also serve as safety covers with interlock switches. When removed to change the drill bit or to empty the paper chips, power to the motor is locked out until the cups are replaced.
Download Brochure

More about the product

  • 2-1/2" Lift Capacity
  • 5 different bit sizes: (1/4", 5/16", 3/8", 7/16", 1/2")
  • Machine can be converted to a 2" maximum lift capacity (to use 1/8" and 1/2" bits)
  • 4 Adjustable backgauge stops

Compact, economical, and easy to operate, the Challenge Handy Drill offers professional drilling capabilities in a tabletop format. Built with a 2-1/2” lift capacity and supporting drill bits from 1/8” to 1/2”, this single-spindle unit is perfect for offices, copy centers, and print shops that need power in a smaller footprint.

Designed for safe and efficient operation, it features an automatic spindle return and a motor that powers on only when the handle is in use—reducing energy use and risk. Chip collector cups double as interlocked safety covers, preventing access to the drill while removed. The Handy Drill also includes four adjustable backgauge stops and manual side guide trip for easy setup and alignment.

General
  • Drill Head Operation: Hand Lever
  • Number of Drill Heads: 1
  • Drill Sizes Available: 1/8" to 1/2" / 3 to 13 mm
  • Lift Capacity: 2-1/2" / 6.4cm
  • Minimum Distance Between Holes: 3/8" center to center / 9.5 mm
  • Maximum Distance Drill To Side Guide: 9-7/8" / 25.1 cm
  • Maximum Margin Hole Center To Sheet Edge: 2-1/2" / 6.4 cm
  • Side Guide Trip: Manual
Dimensions
  • Table Size: 18" x 19" / 46 x 48 cm
  • Overall Height: 22-3/8" / 56.8 cm
  • Overall Width: 24" / 61 cm
  • Overall Length: 21.2" / 53.9 cm
  • Floor Space Needed: 32" x 42" / 81 x 107 cm
  • Net Weight (approximate): 70 lbs / 32 kg
  • Shipping Weight (approximate): 90 lbs / 41 kg
Electrical (standard)
  • Motor Type: Standard Motor
  • Base Power: 1 Phase, 60 Hz, AC.
  • Power option: 115 Volts, 2.7 Amps (Recommended service size: 15 Amps)
