Rhin-O-Tuff

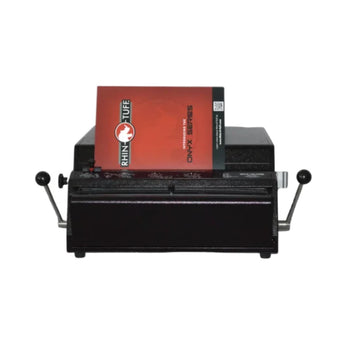

HD7725 Ultima – 14" Vertical Punch

$0.00 CAD

The Rhin-O-Tuff HD7725 Ultima is the ultimate 14” vertical electric punch for high-volume commercial and corporate print environments. Combining industry-best punching capacity with unmatched modularity, this machine is built to meet the demands of intensive, multi-format binding projects. Its heavy-duty construction, ultra-fast cycle rate, and smart automation features make it the professional choice for serious production workflows.
Download Brochure

More about the product

  • Industry leading 6-year Warranty
  • Precision CNC-machined, the all-metal chassis is built to last
  • Designed for easy maintenance and supported by a manufacturer committed to your productivity
  • With the AccuSet Paper Stop and Scale, you can achieve fast and accurate alignment for your book
  • Designed for flexibility or upgrades over time, the modular ecosystem supports all binding types and connects our with APES (Auto Paper Ejector & Stacker), PAL-14 (Electric Pick-A-Lift), and PAL-M (Manual Pick-A-Lift) accessories to boost your production efficiency even further
  • The patented Quick-Change Die System allows punch patterns to be swapped in seconds without the need for tools
  • With disengageable pins, you can adjust hole configurations to fit books of any size.
  • With patented automatic and manual reverse controls, jams are cleared quickly and efficiently
  • Extra large capacity waste tray reduces the number of stops during jobs
  • With an open-ended 14-inch punching slot, the unit accommodates punching up to 28-inch wide documents
  • The unit comes with both a foot pedal and palm switch, and can be upgraded with an optional Versa Paper Stop Switch
  • Designed for continuous-duty operation, the machine delivers up to 65 cycles per minute.
  • Die Patterns and Punch Capacity (using 20lb bond):Ring Bind 3‑5-7-2 Hole / Velo up to 55 sheetsComb (rectangular) up to 48 sheetsMetal Wire (2:1 / 3:1) and Pro Click up to 40 sheetsCoil (4:1, 5:1, 6mm, etc round/oval) up to 40 sheetsCustom patterns available upon request

The Rhin-O-Tuff HD7725 Ultima sets the bar for tabletop punching systems. Featuring a 14” (356 mm) open-ended die, this powerhouse punches up to 55 sheets or 110 pages of 20 lb. bond paper in one cycle—making it the most powerful electric punch in its class. With 65 cycles per minute and more than 20 interchangeable dies (12 standard patterns), it seamlessly handles everything from catalogs to event programs and beyond.

Equipped with the patented Quick Change Die System (QCDS), the HD7725 enables rapid, tool-free die changes in under 30 seconds. It includes fully disengageable punch pins, an Accu-Set paper stop system for precise hole placement, and both automatic and manual jam-clearing reverse features for maximum uptime.

Its massive U-View chip tray holds up to 150% more waste than any comparable punch, while optional modules like the APES (Auto Paper Ejector & Stacker) and PAL (Pick-A-Lift) take productivity to the next level. Whether you’re punching plastic coil, wire, comb, Velo, or 3-hole binding formats, the HD7725 delivers speed, power, and precision.

Punching Functions
  • Punch Width: 14” (356 mm) open-ended vertical punch
  • Rated Punch Capacity: Up to 55 sheets or 110 pages (20 lb. / 80 gsm bond paper)
  • Punch Cycles: 65 per minute
  • Die System: Patented Quick Change Die System (QCDS)
  • Compatible Dies: Over 20 die sets (12 standard patterns)

    – Comb, Wire Loop, Plastic Coil, Velo Bind™, 3-Hole Loose Leaf
  • Punch Pins: Fully disengageable for custom configurations
  • Mylar Capability: Punch up to 5 plastic Mylar sheets (thickness-dependent)
Efficiency & Precision Features
  • Paper Stop System: Accu-Set™ paper stop with fine adjustment knob
  • Alignment: Paper-to-pin visual alignment for perfect margin control
  • Reverse Mechanism: Automatic & manual jam-clear reverse system
  • Operation Mode: Smooth, quiet, power-on-demand motor
  • Waste Tray: U-View extra-high capacity tray (no sensors required)
  • Diagnostic Display: LED indicators for machine condition awareness
System Compatibility
  • Compatible Modules:

    – APES (Auto Paper Ejector & Stacker)

    – PAL-14 & PAL-M (Pick-A-Lift)
Operation Modes:
  • Foot pedal (standard)
  • Palm switch (included)
  • Versa switch (optional)
Build & Sustainability
  • Construction: Industrial-grade all-metal housing
  • Recyclability: More than 98% recyclable
  • Country of Manufacture: USA
Dimensions & Electrical
  • Dimensions (H × W × D): 8.5” × 21” × 22.5” (216 mm × 534 mm × 572 mm)
  • Weight: 96 lbs (43.5 kg) | Shipping Weight: 103 lbs (46.7 kg)
  • Power Requirements:

    – 115V AC, 4A, 60Hz

    – Also available in 230V AC, 2A, 50Hz
