MBM

1800S Air-Feed Paper Folder

$0.00 CAD

The MBM 1800S is a high-speed, air-fed paper folder designed for today’s digital print environments. Featuring ultrasonic double-feed detection, customizable folds, and top-feed air suction, it ensures accurate, jam-free folding on coated and digitally printed stocks.

About The Product

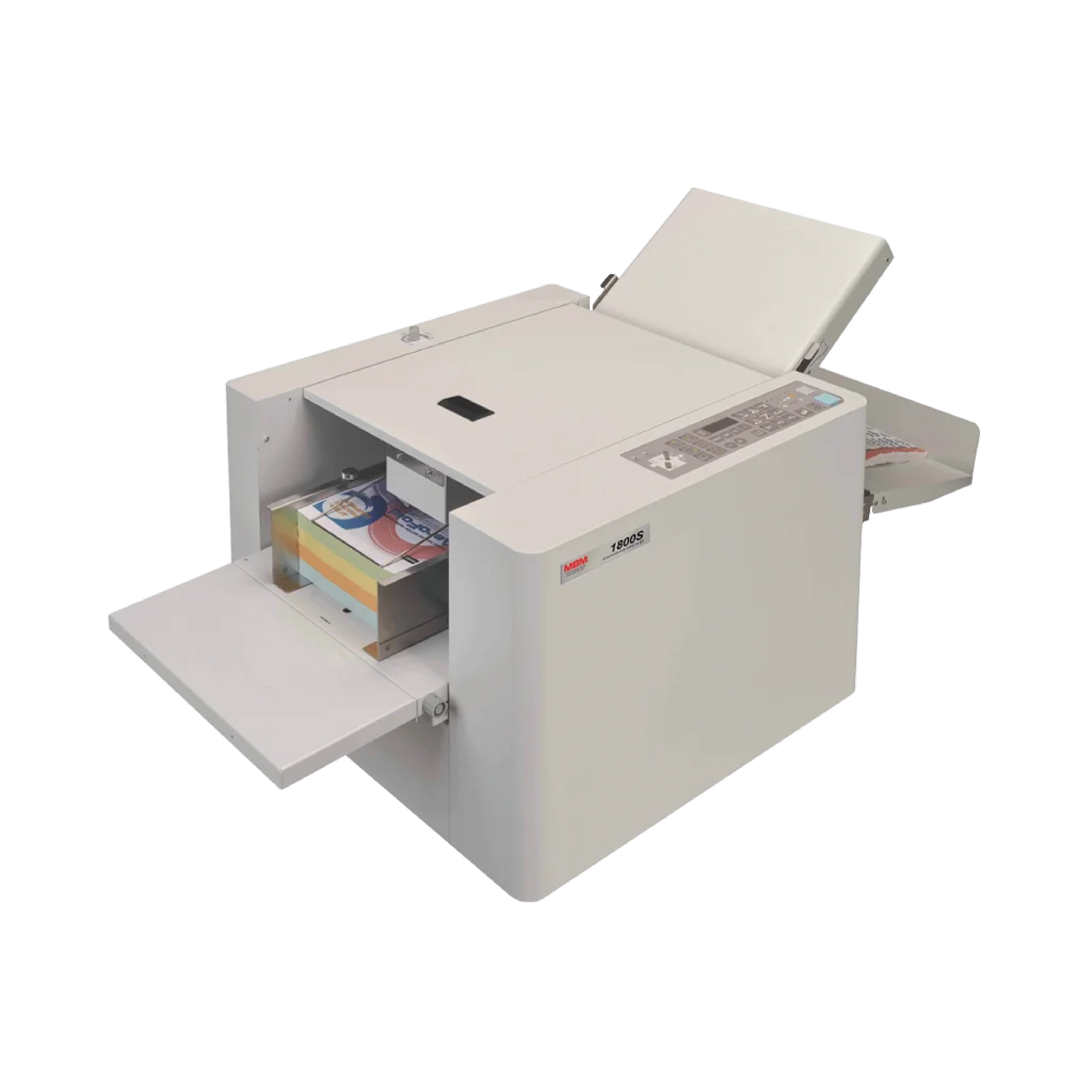

The MBM 1800S automatic air-feed paper folder is built for performance, precision, and flexibility. With speeds up to 18,000 sheets per hour, this machine is ideal for high-volume folding tasks across various paper types. The adjustable air suction feed and spring-loaded feed angle adjustment ensure smooth feeding of coated, glossy, or digital prints.

Easily manage your workflow using the intuitive touch control panel, which allows you to store up to 18 custom folds for standard sizes and 3 for non-standard sizes. The ultrasonic double-feed sensor detects misfeeds even on digitally printed media, reducing errors and saving time.

The MBM 1800S features quick-access maintenance panels and removable folding rollers for easy cleaning. Its rugged design includes a silver top sheet for smoother paper run and improved conductivity, making it reliable even under heavy workloads.

Whether you’re folding brochures, invoices, or marketing collateral, the 1800S is a versatile solution for digital and traditional print environments alike.

Product Specs

• Folding Type: Automatic air-feed system, friction folding
• Speed: Up to 18,000 sheets per hour*
• Fold Memory:
• 18 custom folds for standard sizes
• 3 custom folds for non-standard sizes
• Paper Size: 4.5” x 8.25” to 13” x 19”
• Paper Weight: 16 to 80 lbs bond / up to 218 gsm*
• Sheet Capacity: Up to 800 sheets
• Key Features:

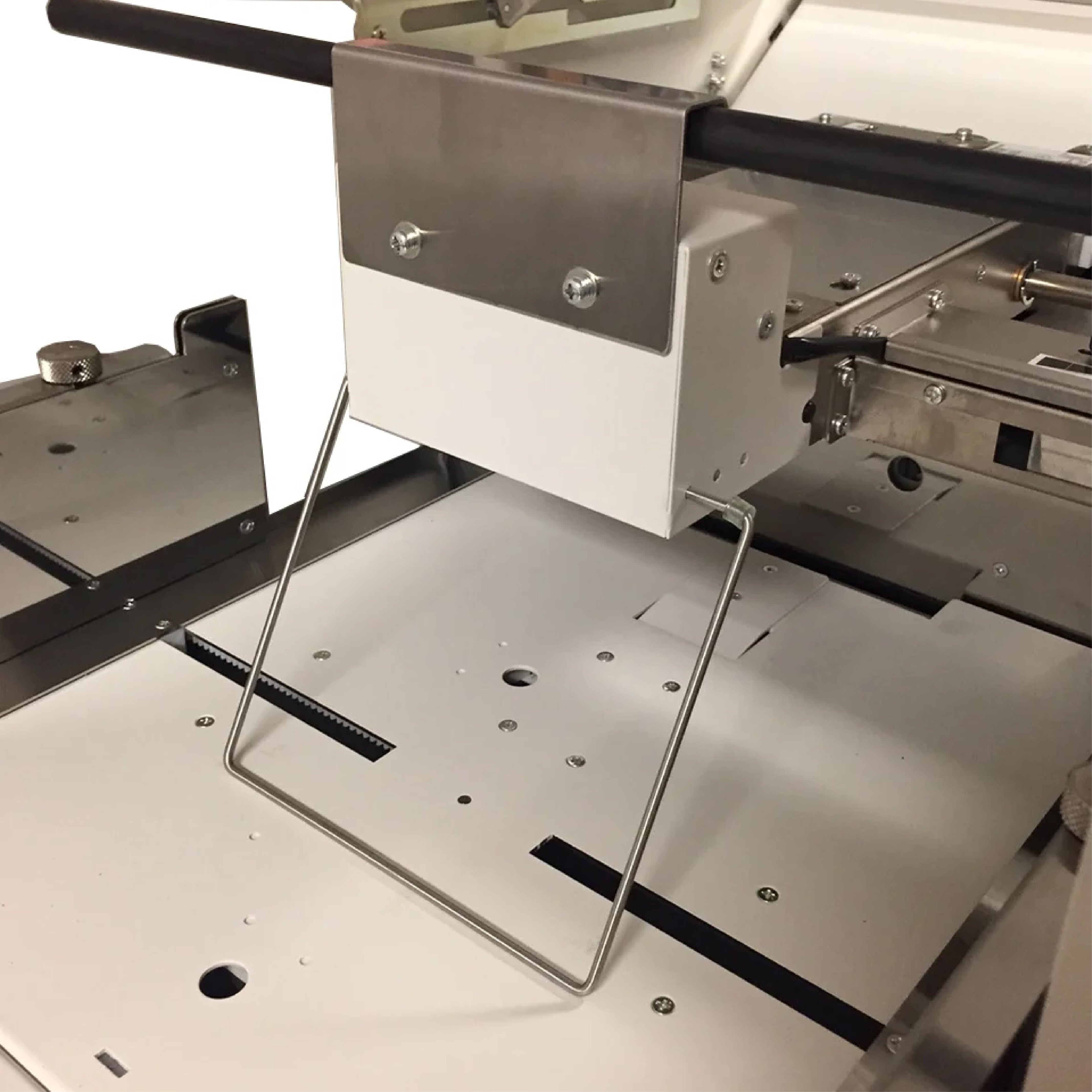

• Ultrasonic double-feed detection
• Adjustable air suction feed system
• Variable feed/separator pressure control
• Touchscreen panel with batch and total counter
• Removable folding rollers for easy maintenance

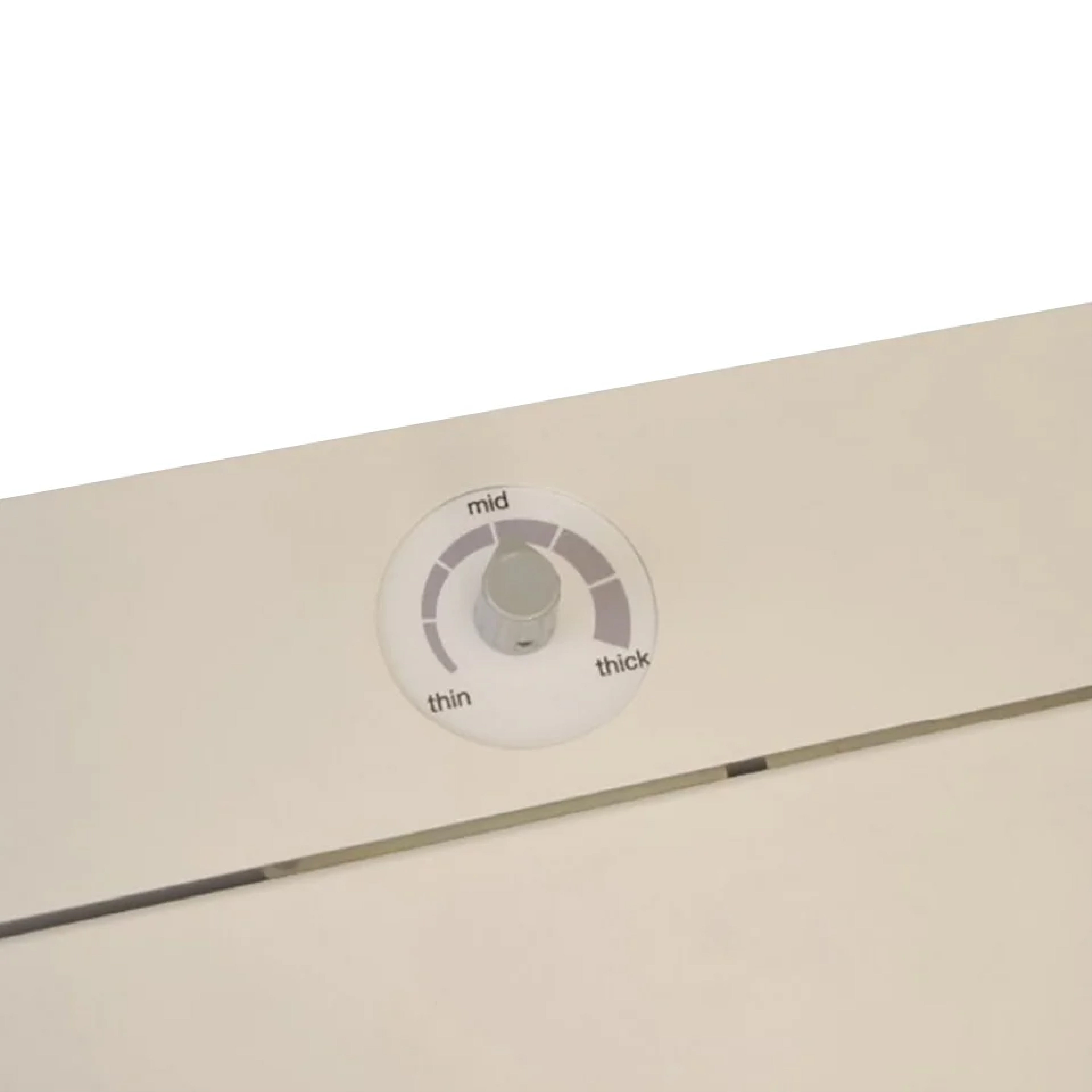

• Air pressure adjustment knob
• Spring-loaded feed angle adjustment
• Smooth silver top sheet surface for better conductivity
• Electrical Requirements: 120 V, 60 Hz
• Dimensions (D × W × H): 24” x 49” x 23”
• Shipping Weight: 189 lbs

*Performance may vary based on paper type and power supply
**Speed based on half-fold with 20 lb. bond stock
