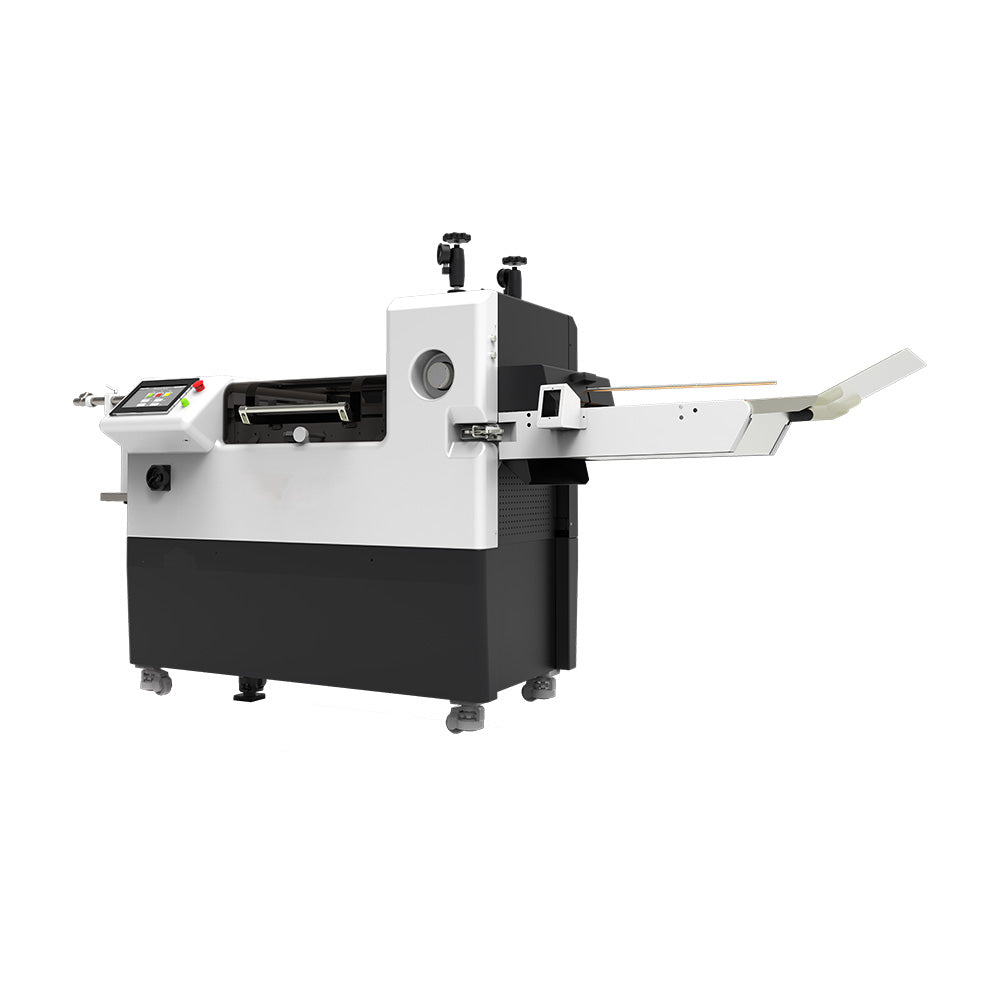

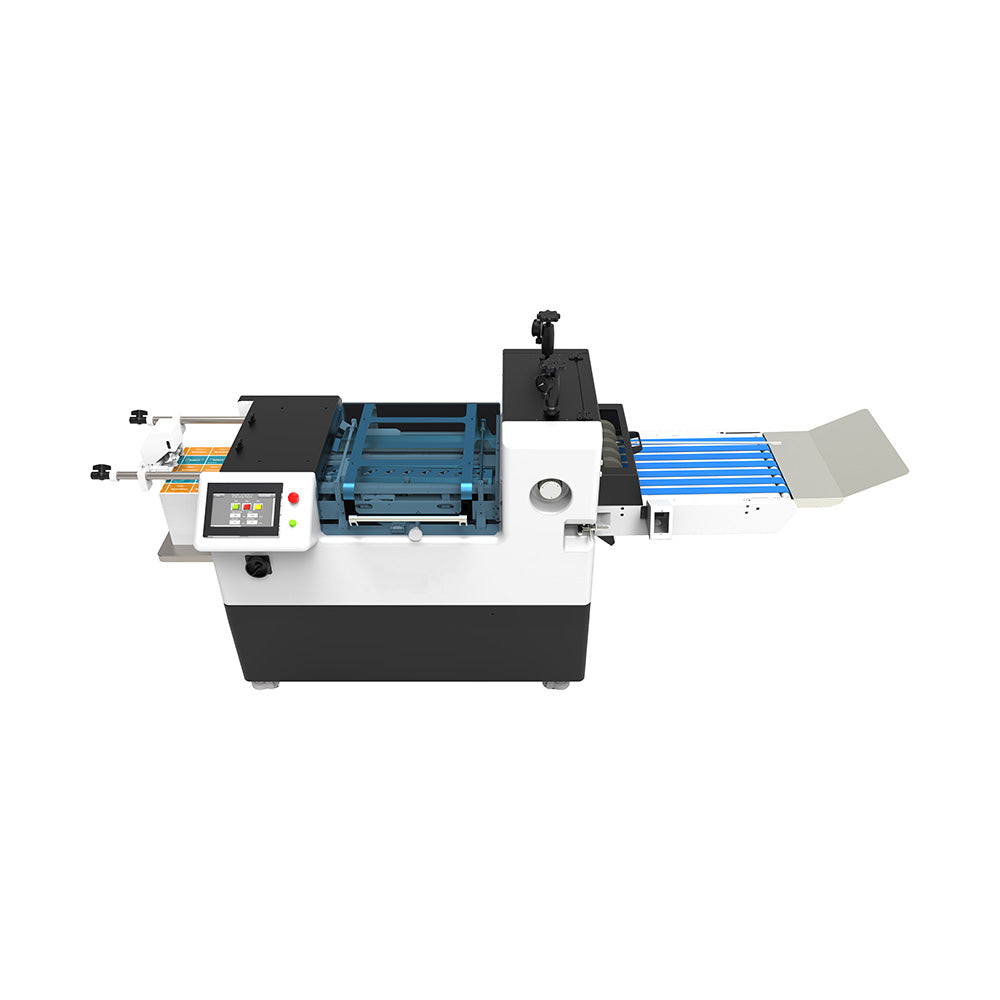

RD-355 Rotary Die Cutter

With its compact footprint and user-friendly operation, the Komodo RD-355 Rotary Die Cutter is an intelligent die-cutting solution designed for small-batch and multi-repeat production. It is widely used for producing self-adhesive stickers, wine labels, garment hangtags, playing cards, and other products across the printing and packaging, apparel, and electronics industries.

Featuring a fish-scale feeding platform, automatic sheet deflection, and precise alignment, the machine efficiently feeds sheets through high-strength rollers equipped with magnetic dies. It supports a wide range of die-cutting applications, including full cutting, half cutting, perforation, creasing, and easy-tear lines (toothed lines), delivering fast, accurate, and consistent results.

• Machine Dimensions: 95.28" x 33.07" x 64.96" (2,420 x 840 x 1,650 mm)
• Paper Size: Maximum: 20" x 13.98" (508 x 355mm); Minimum: 11.02" x 8.27" (280 x 210mm)
• Die Plate Size: Maximum: 13.78" x 19.69"" (350 x 500mm); Minimum: 11.02" x 8.27" (280 x 210mm)
• Die Plate Thickness: 0.96mm
• Die Cutting Accuracy: ≤ 0.2mm
• Maximum Die Cutting Speed: 5,000 Sheets/hour
• Maximum Indentation Thickness: 0.2mm
• Paper Weight: 70-400 g
• Loading Table Capacity: 1,200 sheets
• Loading Table Capacity (Thickness): 9.84" (250mm)
• Minimum Width of Waste Discharge: 0.157" (4mm)
• Weight: 1,000 kg
• Mould Type: Rotary die
• Voltage: 220V
• Power Rating: 6.5 kW
• Air Pressure: 0.6 MPa
