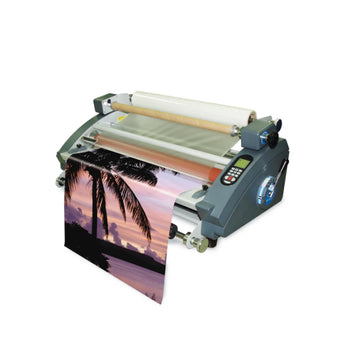

RSL-2702S 27" Thermal and Cold Pressure Sensitive Roll Laminator

The RSL-2702S delivers professional-grade results in a compact 27-inch format. It supports both hot and cold lamination, encapsulation, and mounting of materials up to 9/32” thick. With digital controls, independent roller heating, and 9 programmable memory settings, users can quickly achieve optimal lamination settings across a wide range of applications.

Ideal for posters, menus, instructional materials, and signage, the RSL-2702S provides smooth, curl-free output thanks to its integrated de-curling bar. Designed for ease of use and longevity, this laminator also includes a dust cover to help extend machine life.

Key Features:
• 27” wide-format tabletop laminator for hot & cold applications
• Encapsulates, mounts, and cold laminates up to 9/32”
• Independent roller heat controls for upper/lower rollers
• De-curling bar ensures flat, professional output
• 9 memory presets for fast setup
• Dust cover included for protection
• Simple digital controls with 9-speed settings

• Max Laminating Width: 27″
• Film Thickness: 1–5 mil
• Mounting Thickness: Up to 6/25″ (approx. 0.24″ or 9/32″)
• Film Core Size: 1″ core plugs, 3″ Auto-Grip hubs
• Max Laminating Speed: 8.2 ft/min
• Max Temperature: 302°F
• Warm-Up Time: Approx. 10 minutes

Features
• Lamination Type: Hot & Cold
• Encapsulation: Yes (double-sided lamination)
• De-Curling Bar: Yes
• Speed Control: Digital, 9 levels
• Reverse Function: Yes
• Cross Cutter: Yes
• Document Guides: Yes
• Release Liner Take-Up: Yes
• Foot Pedal: No

Design & Electrical
• Drive Motor: DC Geared
• Transport Type: 4-Roller system
• Unit Dimensions (W x D x H): 38″ x 22″ x 19″
• Unit Weight: 124 lbs
• Crate Dimensions: 45″ x 24″ x 24″
• Crate Weight: 176 lbs
• Voltage: AC 120V / 60Hz
• Power Consumption: 1500W
