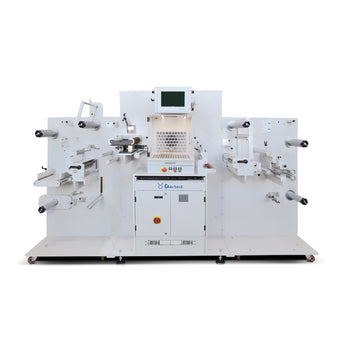

Taurus - 250 mm
• Cutting Speed: 30m/min (19.7 IPS)
• Input Roll Diameter: up to 500mm (19.68”)
• Output Roll Diameter: up to 400mm (15.74”)
• Cutting Area: 250mm x 250mm (9.84” x 9.84”)
• Web Width: 50mm - 250mm (1.96” - 9.84”)
• Laser Spot Size: up to 250 μm
• Laser Source Power: 150W - 10.25 μm
• Power Requirement: 220Vac 18A 4000W
• Laser Type: Single Head CO2
• Cut Type: Kiss-cut, full cut, perforation, engraving
• Media Type Allowed: Paper, Plastic Films (except PET)
• Afinia Part Number: 40996
⸻
Taurus - 350 mm
• Cutting Speed: 30m/min (19.7 IPS)
• Input Roll Diameter: up to 500mm (19.68”)
• Output Roll Diameter: up to 400mm (15.74”)
• Cutting Area: 330mm x 330mm (13” x 13”)
• Web Width: 50mm - 350mm (1.96” - 13.78”)
• Laser Spot Size: up to 350 μm
• Laser Source Power: 350W - 10.25 μm
• Power Requirement: 220Vac 34A 7500W
• Laser Type: Single Head CO2
• Cut Type: Kiss-cut, full cut, perforation, engraving
• Media Type Allowed: Paper, Plastic Films (except PET)
⸻
Taurus - 350 mm PLUS
• Cutting Speed: 70m/min (46 IPS)
• Input Roll Diameter: up to 500mm (19.68”)
• Output Roll Diameter: up to 400mm (15.74”)
• Cutting Area: 330mm x 330mm (13” x 13”)
• Web Width: 50mm - 350mm (1.96” - 13.78”)
• Laser Spot Size: up to 350 μm
• Laser Source Power: 350W - 10.25 μm
• Power Requirement: 220Vac 34A 7500W
• Laser Type: Single Head CO2
• Cut Type: Kiss-cut, full cut, perforation, engraving
• Media Type Allowed: Paper, Plastic Films (except PET)
