Challenge

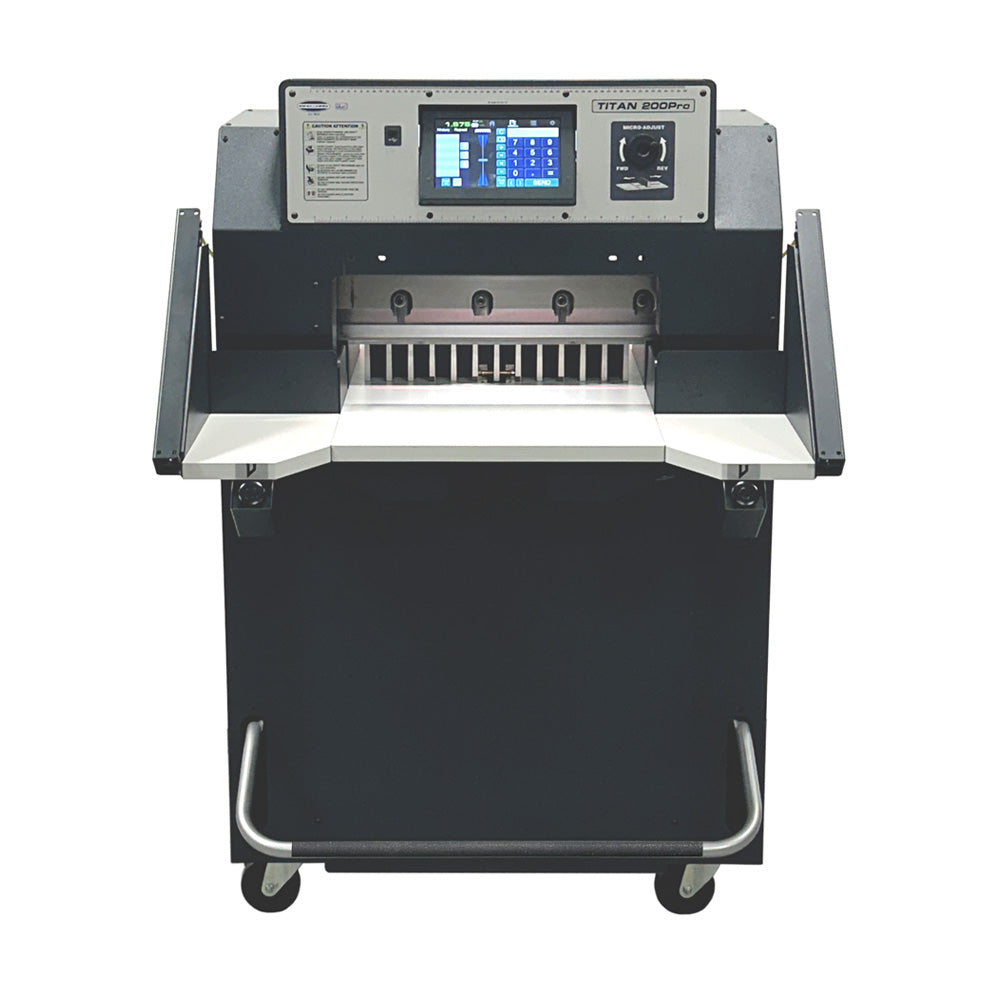

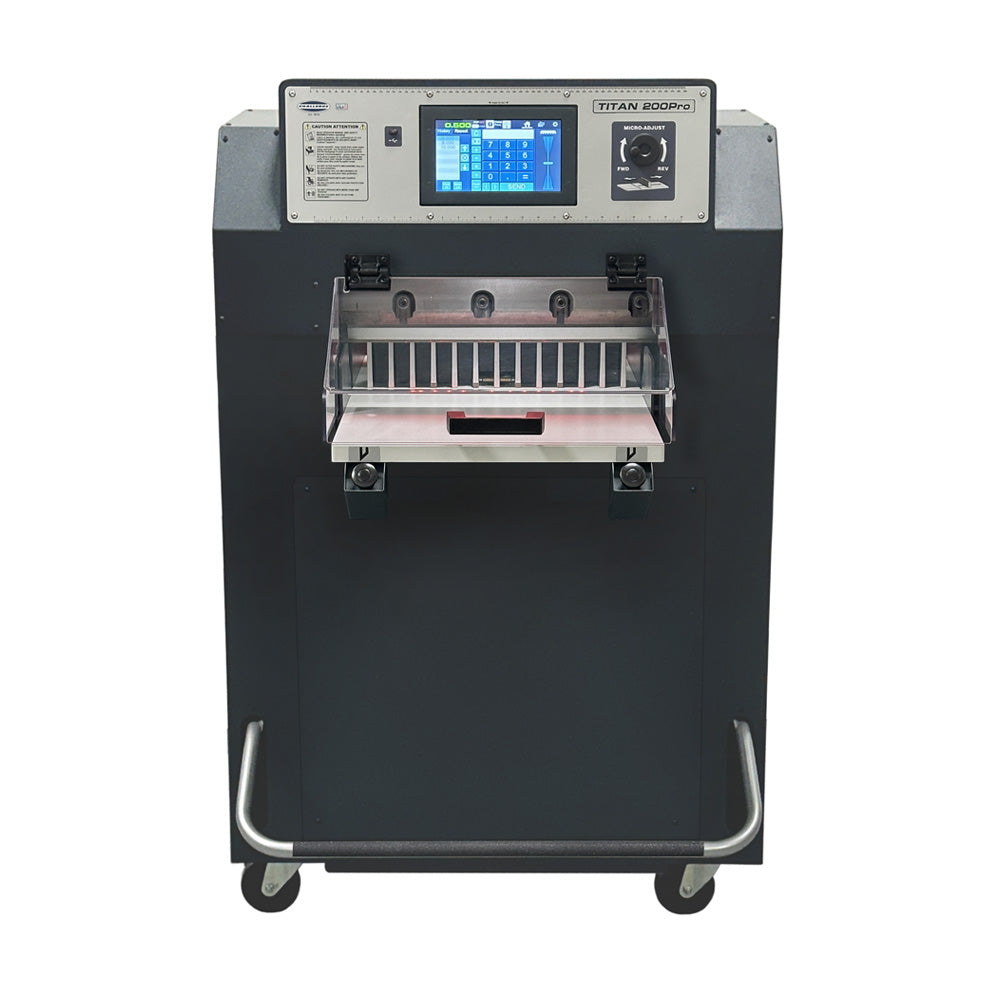

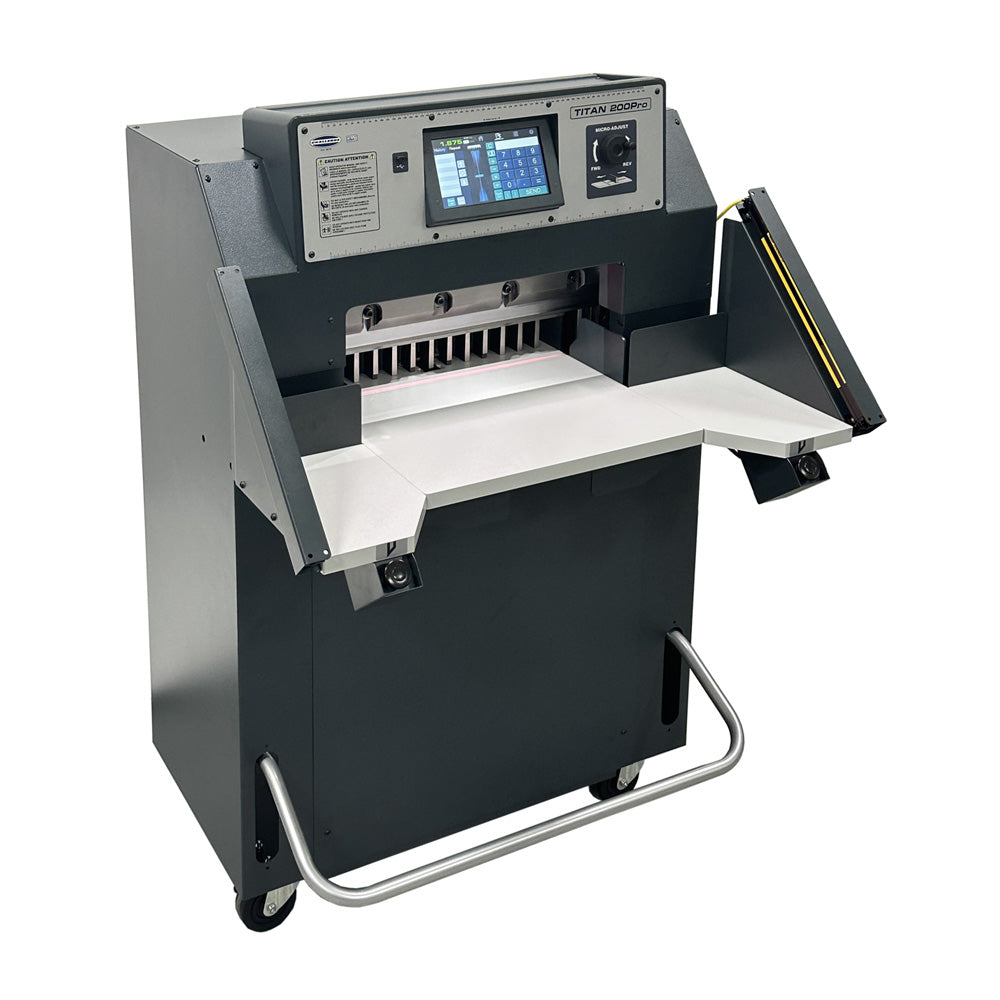

Titan 200Pro Paper Cutter

$0.00 CAD

With today’s digital print market placing great demands on your business, some decisions can be difficult. Investments in cutting-edge wide format, inkjet, and digital print engines ensure you meet your customer’s diverse needs, but there are so many choices! When it comes to choosing your next paper cutter, this one is easy… step up to a Titan 200Pro!

The Titan 200Pro continues the Challenge excellence of innovation and strength we’ve become famous for since 1870. The Titan 200 is based on a solid cast iron and steel construction for maximum durability. UHMW gib surfaces, LED line lights, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation.

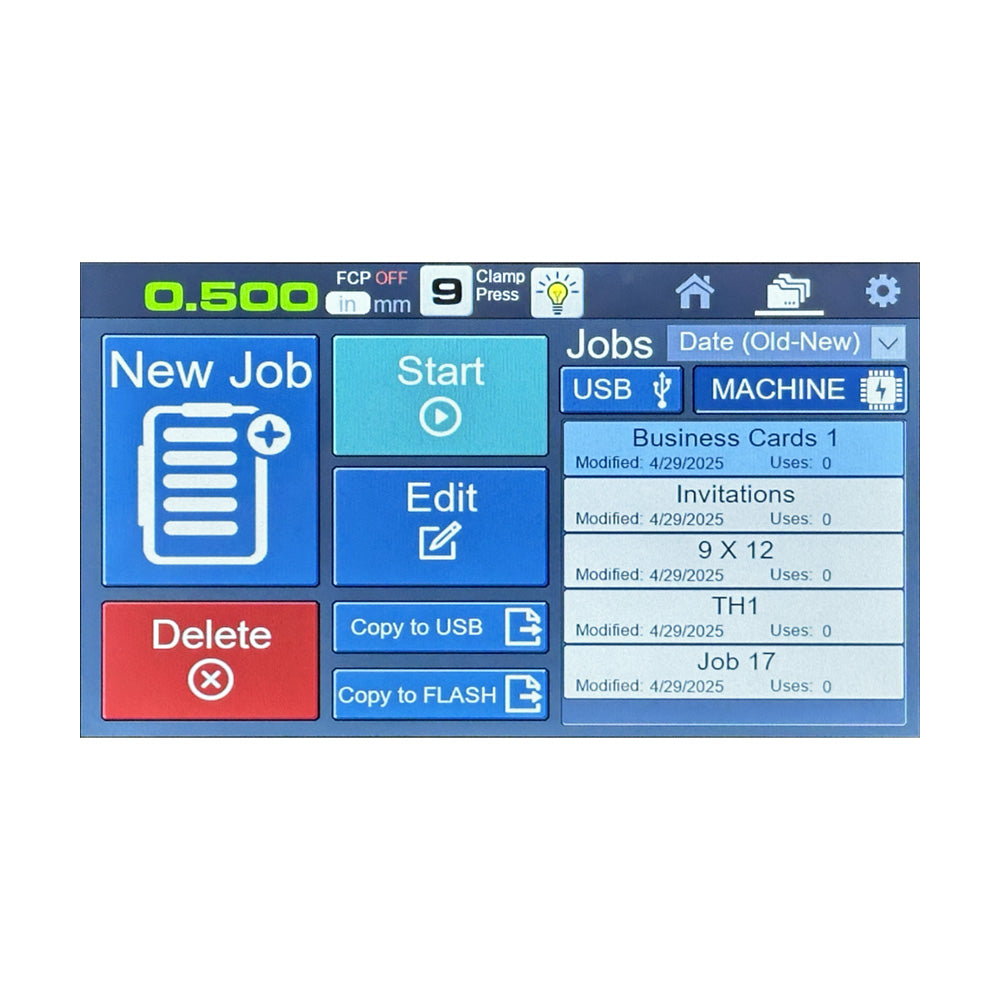

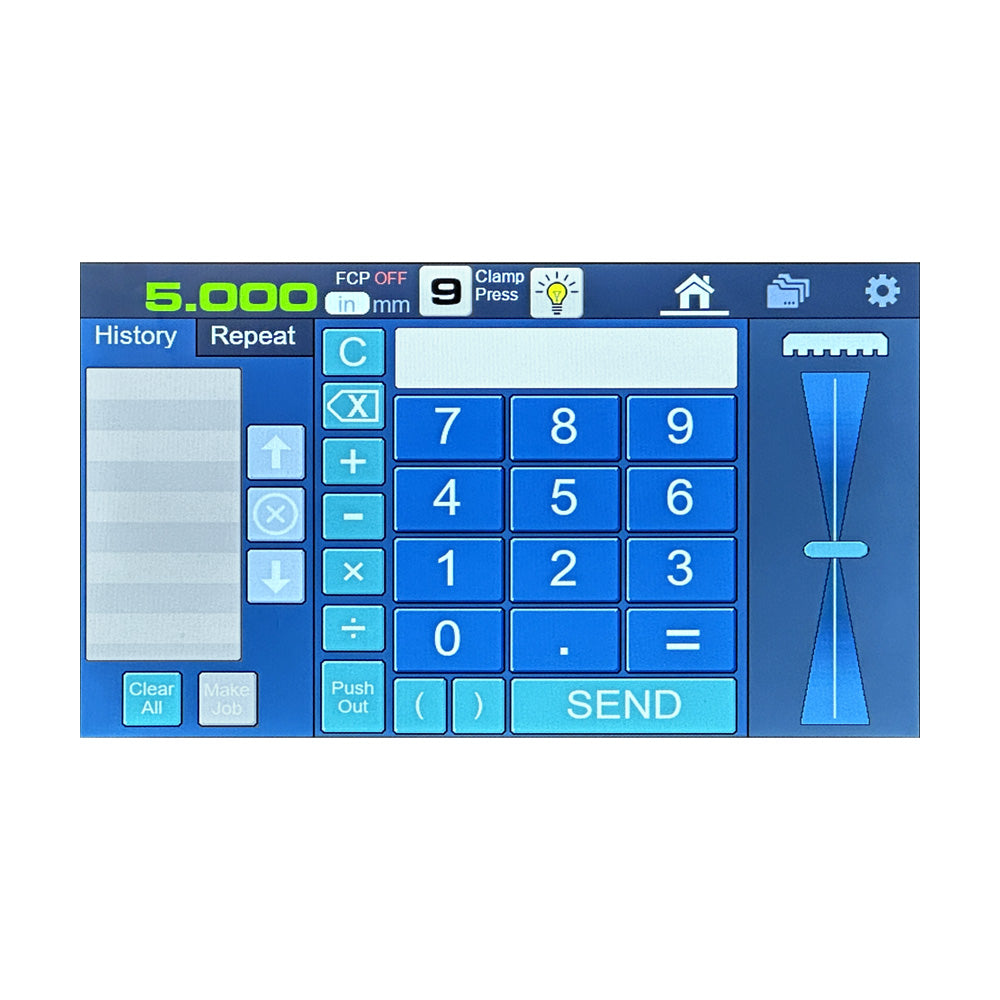

The intuitive touch-screen controller allows easy job programming. The electronic clamp pressure control can be programmed for each step individually in a job. Machine self-diagnostics and error indication walks the operator through any potential difficulties.

The Titan 200Pro meets the toughest safety standards in the industry today. Category 4 safety eye beams, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications.

Proudly manufactured in the USA.

Download Brochure
Product Description

Machine Features:
Fully hydraulic cutting and clamping
Solid cast iron and steel construction ensure years of trouble-free operation
Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
Bright red LED line light is easy to see and needs no future replacement
Standard electronic clamp pressure adjustment
Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage

Product Specifications

General:
Maximum Cutting Width 20" / 50.8cm
Minimum Cut w/o False Clamp Plate 1/2" / 13mm
Minimum Cut w/ False Clamp Plate 1-7/8" / 48cm
Maximum Cut Depth 20" / 50.8cm
Clamp Opening w/o False Clamp Plate 3-1/4" / 8.3cm
Clamp Opening w/ False Clamp Plate 3" / 7.6cm
Clamping Method Hydraulic and Manual
Backgauge Control Motor Powered

Dimensions:
Table Space (in front of knife) 15-1/4" / 39cm
Table Space (behind knife) 20" / 51cm
Total Height 53" 135cm
Total Width 37-1/2" / 95cm
Total Length 49-5/8" / 126cm
Net Weight (approximate) 795 lbs / 361 kg
Shipping Weight (approximate) 920 lbs / 418 kg

Electrical:
Motor Type Standard Motor
Hydraulic Pump 1-3/4 H.P. One Phase, 60 Hz, AC
Power option 1 220 Volts, 12 Amps (service size 15 Amps)
Power note Requires receptacle type: NEMA 6-15R or 6-20R
