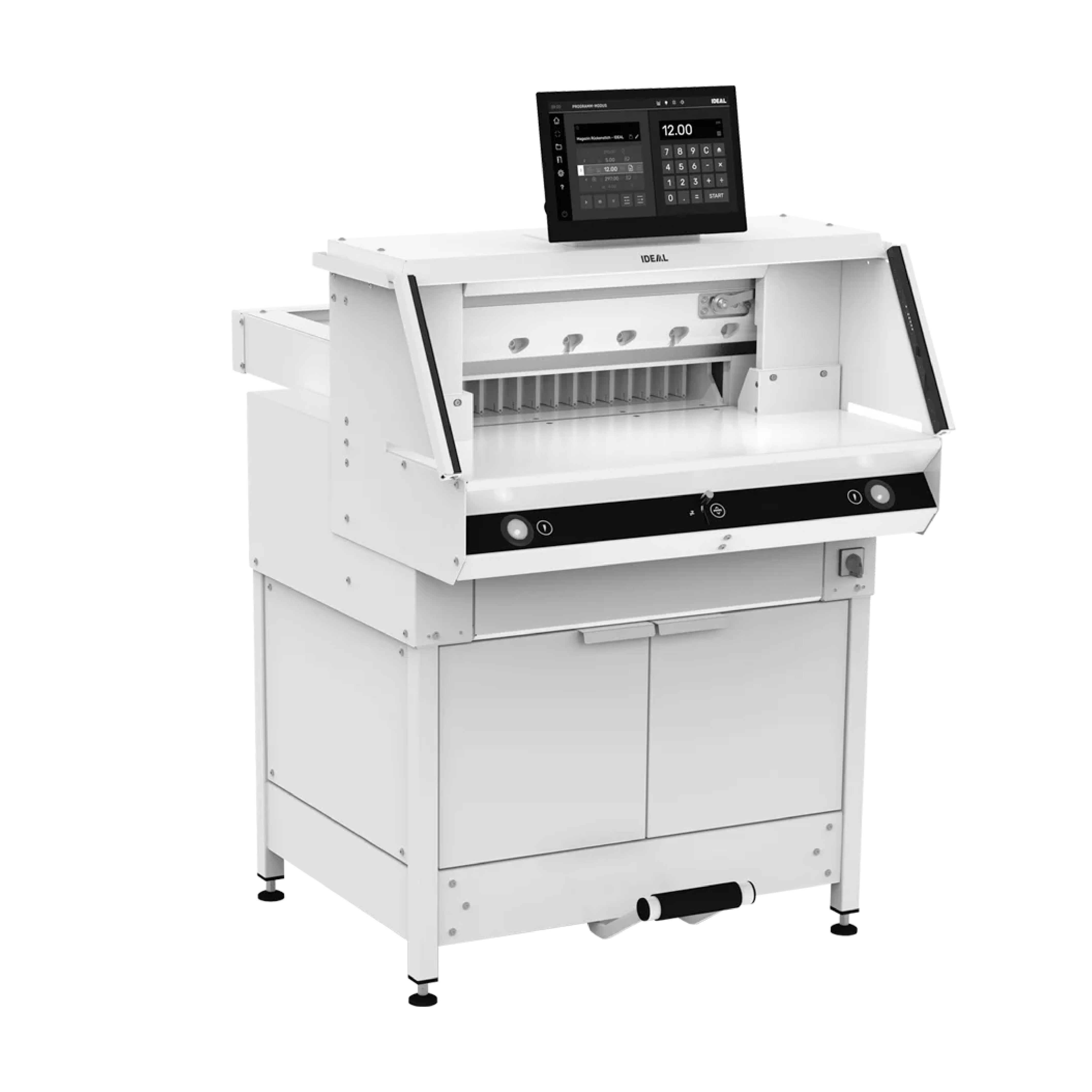

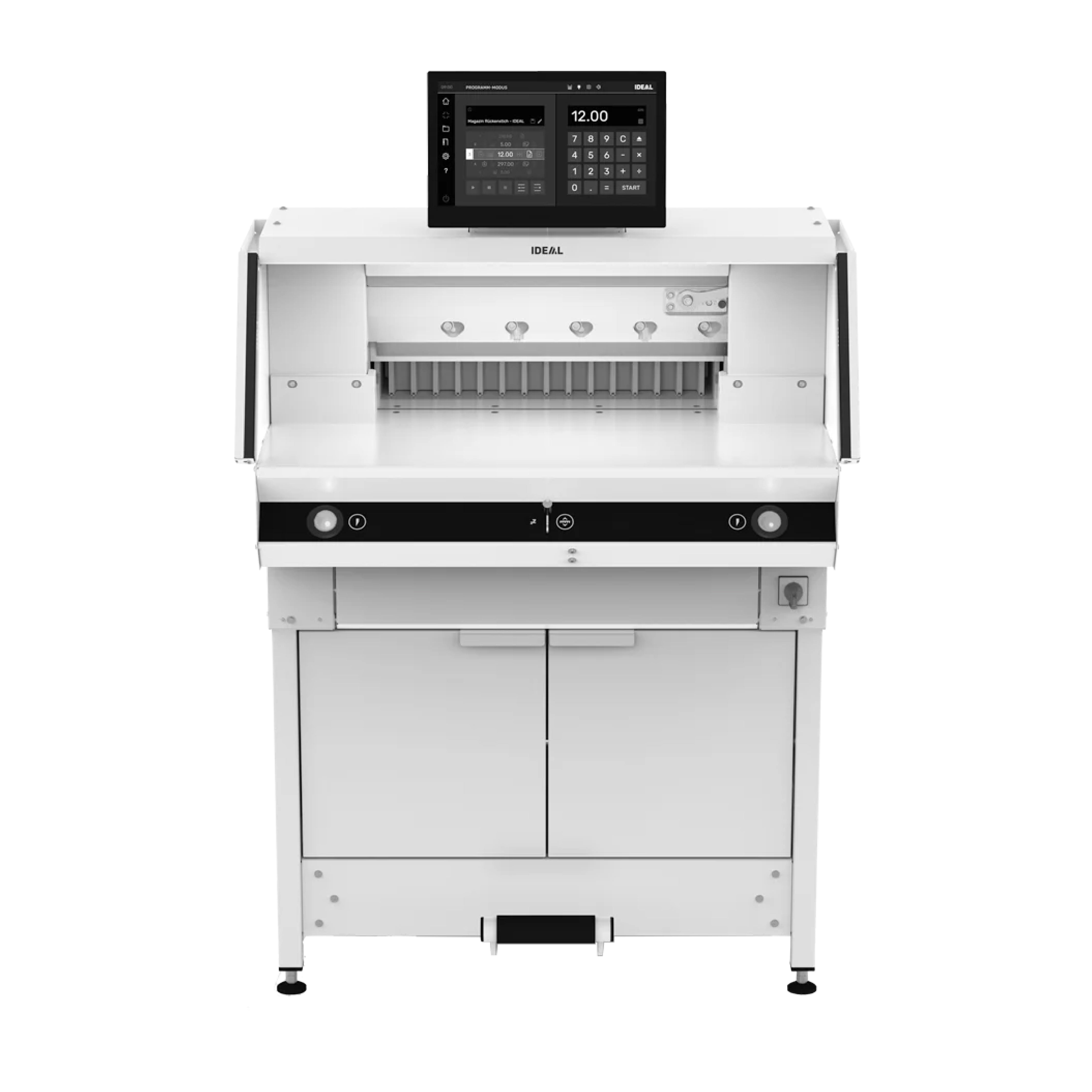

Triumph Speedcut 56 Paper Cutter

Safety Features:
• Comprehensive SCS safety package: Patented easy cut electronic blade activation bars for true two-hand operation

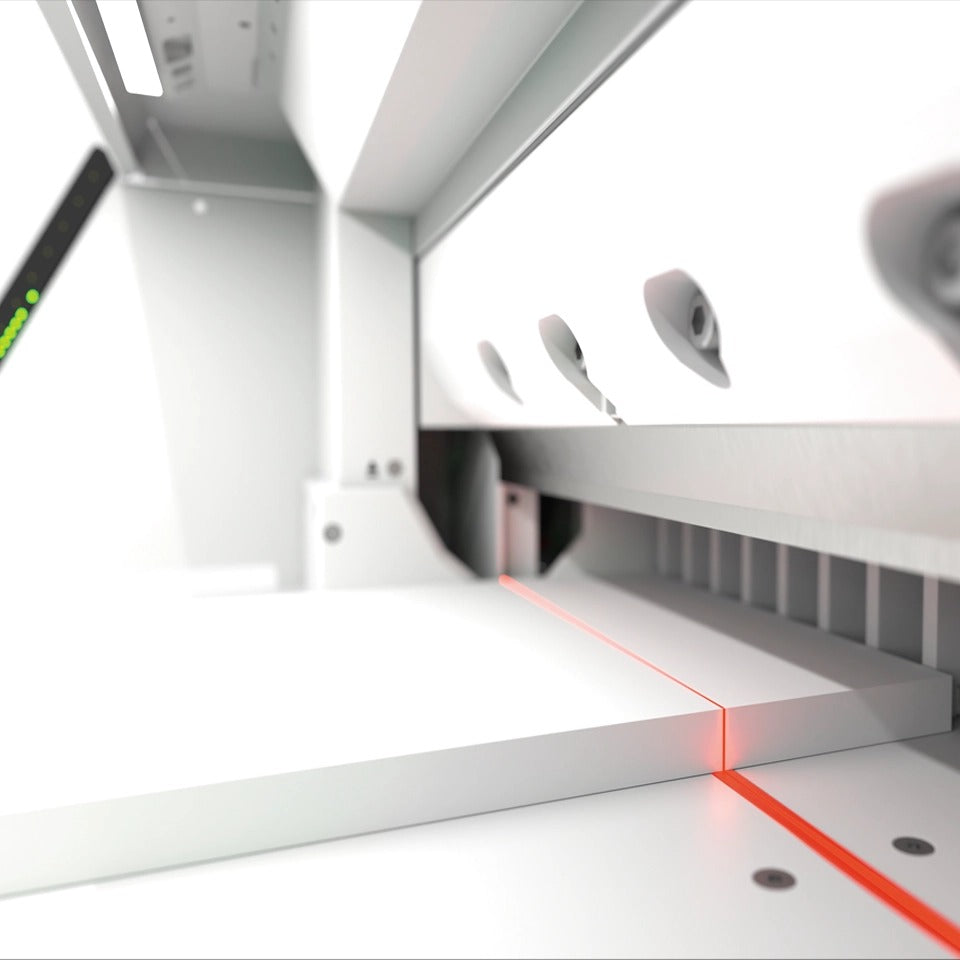

• IR Light Beam Safety Curtain covers the work area to ensure the highest level of operator safety
• Safety cover on rear table
• Main switch and safety code lock

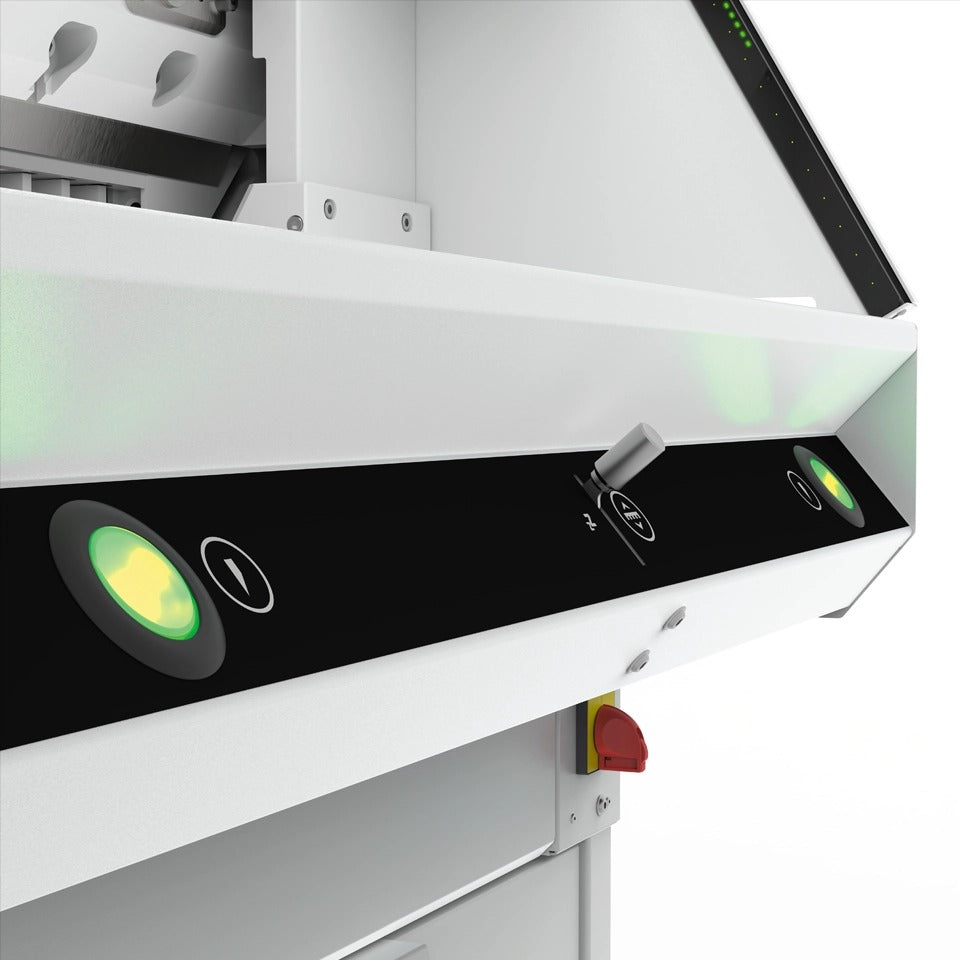

• True two-hand blade activation via EASY-TOUCH buttons
• Easy blade and cutting stick change
• Knife changing device with covered cutting edge
• Pin controlled, electronic code lock to secure the machine
• Knife depth adjustment from the outside

Characteristics:
• Electro-mechanical precision blade drive and hydraulic clamp drive (patent pending)
• Programmable and manual backgauge positioning with optimum operator ergonomics and logic
• Adjustable back gauge with narrow separations and plastic gliders
• The precision back gauge spindle guarantees exact cuts. ­
• Clamp bar with infinitely programmable adjustment
• Electronically controlled false clamp plate, ideal for delicate work
• Infinitely dimmable front table illumination LEDs
• Ergonomic control element for manual adjustment of the backgauge position
• Table height ergonomically adjustable from 37.4" to 39.37"
• Solid steel blade carrier with blade guide system (patent pending)
• Accessible blade depth adjustment on the front of the machine (patent-pending)
• Integrated tool storage

Without Air Table
• Electric Paper Cutter
• Cutting Width: 22″
• Cutting Height: 3.14″ / 3.03″*
• Length Behind Blade: 22″
• Narrow Cut: <0.59″ / 2.36″
• Clamp Type: Adjustable hydraulic
• Blade Material: German steel
• Horsepower: 2
• Electrical Requirements: 120 V. 60 Hz– 20 amp dedicated line required
• Dimensions (D x W x H): 53.25″ x 43.75″ x 59.75″
• Shipping Weight: 770 lbs.
*with false clamp

With Air Table
• Electric Paper Cutter
• Cutting Width: 22″
• Cutting Height: 3.14″ / 3.03″*
• Length Behind Blade: 22″
• Narrow Cut: <0.59″ / 2.36″
• Clamp Type: Adjustable hydraulic
• Blade Material: German steel
• Horsepower: 2
• Electrical Requirements: 120 V. 60 Hz– 20 amp dedicated line required
• Dimensions (D x W x H): 53.25″ x 43.75″ x 59.75″
• Shipping Weight: lbs.
*with false clamp
