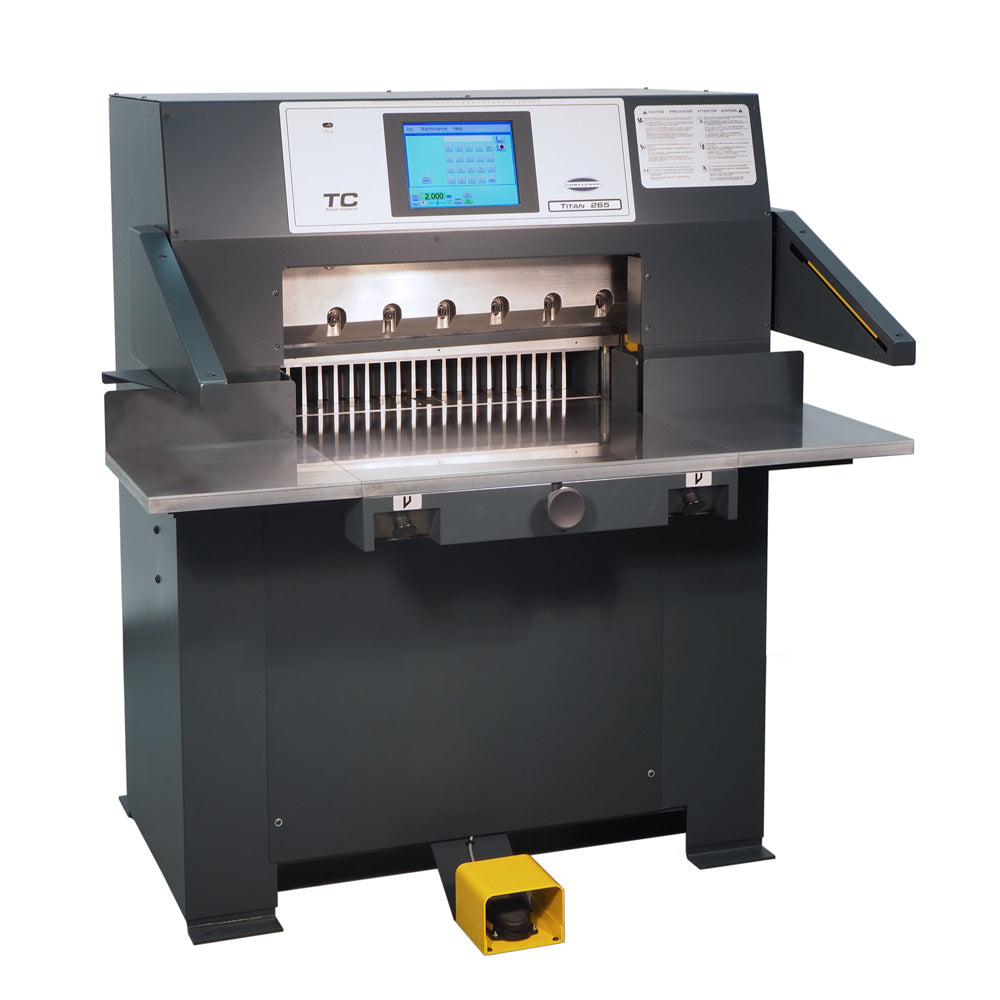

Titan 265TC Paper Cutter

$0.00 CAD

Today’s print market places great demands on your business. Investments in cutting-edge wide format, inkjet, and digital print engines ensure you meet your customer’s needs. Why are you wasting valuable production time using that old paper cutter? Step up to a Titan 265 TC!

The Titan 265 TC continues delivering the excellence of innovation and strength we’ve become famous for since 1870. The Titan 265 is based on a solid cast iron and steel construction for maximum durability. Industry-exclusive UHMW gib surfaces, composite bushings, and a stainless steel table require virtually zero maintenance for years of trouble-free operation. Our powerful hydraulic clamping and cutting yield up to 26 cuts per minute! An air table on the cutting bed and large side tables are available options for the Titan 265 TC.

The intuitive 10.5" colour touch-screen TC Controller allows variable mode data entry, automatic fraction to decimal calculation and unlimited program storage capacity. Clamp mark waste is reduced or eliminated with programmable electronic clamp pressure control per cut. Innovative advances improve the task of program creation through features such as repeat and loop commands, USB port for thumb drive program delivery, label cutting and sheet division tools, and more! The TC system is the first paper cutter controller in the world to recognize common .csv format program files making offline programming simple and easy to implement at any size print operation.


Download Brochure
Product Description

Machine Features:
Up to 26 cuts per minute
Virtually maintenance-free design
Solid 1-inch thick metal table offers the strong work surface required in production environments
Trim business cards with the false clamp plate installed – reducing unwanted waste
Fully-adjustable knife bar gibs (front and rear)
Low-pressure pre-clamping protects operator from injury (less than 66 PSI)
U/L Labelc - ULce

TC Control Features:
10.5" Color Touch Screen control panel
Electronic Clamp Pressure control
USB port for simple thumb drive program entry
Ability to receive .csv files making offline programming and memory storage simple
Repeat and Loop commands streamline program entry
Auto-programming features of sheet division and label cutting with animated graphics
Programmable Clamp pressure per cut
Automatic Fraction to Decimal Conversion
Unlimited program storage capacity
Program Lockout
Computer Diagnostic Tools
ANSI safety standard compliant and CE, UL and cUL Listed

Product Specifications

General:
Maximum Cutting Width 26-1/2" / 67.3cm
Minimum Cut w/o False Clamp Plate 5/8" / 16mm
Minimum Cut w/ False Clamp Plate 1-7/8" / 48cm
Maximum Cut Depth 28" / 71.1cm
Clamp Opening w/o False Clamp Plate 4" / 10.2cm
Clamp Opening w/ False Clamp Plate 3-3/4" / 9.5cm
Clamping Method Hydraulic and Manual
Backgauge Control Motor Powered (Manual version available)

Dimensions:
Table Space (in front of knife) 18-1/2" / 47cm
Table Space (behind knife) 28" / 71.1cm
Total Height 59" / 150cm
Total Width 54" / 137.2cm
Total Length 69-1/2" / 176.5cm
Net Weight (approximate) 1780 lbs / 807 kg
Shipping Weight (approximate) 2020 lbs / 916 kg

Electrical:
Motor Type Standard Motor
Hydraulic Pump 5 H.P. Three Phase, 60 Hz, AC
Power option 1 208/230 Volts, 25 Amps (service size 30 Amps)
