Akiles

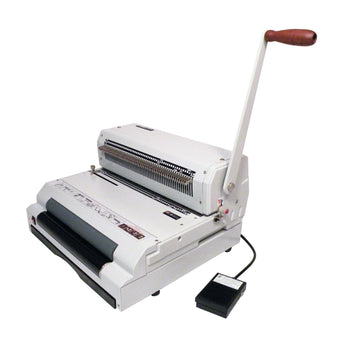

CoilMac-ECI Manual Coil Punch with HD Electric Coil Inserter

$0.00 CAD
Version: Round Holes

The Akiles CoilMac-ECI series is a premium manual punch and electric insert coil binding system, engineered for reliability, speed, and precision—ideal for offices, schools, and print shops handling mid to high-volume workloads.
Download Brochure

More about the product

Standard version features:
  • Round Holes: Standard 4mm round holes.
  • 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.
  • STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.
PLUS version features:
  • OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
  • FULLY Disengageable Pins: For a completely clean & professional punching ofany paper size, all 54 pins can be independently pulled & disengaged.
  • LETTER 4:1 pitch (0.248″): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

America’s No. 1 selling coil binding machine just got better. The Akiles CoilMac-ECI and CoilMac-ECI+ have been redesigned with enhanced features and tougher construction to deliver unmatched performance in their class. With a 13” punching width and continuous punch guide, this machine is capable of handling documents up to 26” long, making it ideal for everything from standard reports to oversized presentations.

The CoilMac-ECI comes equipped with a powerful electric coil inserter featuring a heavy-duty motor and industrial-grade double roller system for fast and effortless coil insertion. The CoilMac-ECI uses a 4:1 round-hole punch pattern with 5 disengageable dies, while the CoilMac-ECI+ features a 4:1 oval-hole pattern and all 54 disengageable pins for maximum versatility.

Built with rugged all-metal construction, a high-capacity waste drawer, and non-skid feet, the CoilMac-ECI ensures years of dependable operation. It includes thoughtful design elements like margin and side control adjustments, a premium crimper tool, and a coil diameter selector—delivering professional results every time.

Model Options
  • CoilMac-ECI
  • CoilMac-ECI+
Operation
  • Punching: Manual
  • Inserting: Electric (built-in heavy-duty roller with foot pedal)
Pitch Options
  • CoilMac-ECI: Standard 4:1 (0.250”)
  • CoilMac-ECI+: Letter 4:1 (0.248”)
Punching Length
  • 13” (up to 26” with continuous punch guide)
  • ECI: 53 holes
  • ECI+: 54 holes
Hole Shape
  • ECI: Round (4mm)
  • ECI+: Oval (4mm x 5mm)
Disengageable Pins
  • ECI: 5 of 53
  • ECI+: All 54
Punching Capacity
  • Up to 20 sheets (20 lb paper)
  • Up to 2.6 mm for hardboard (28-sheet equivalent)
Binding Capacity
  • Electric Inserting:
  • ECI: up to 7/8”
  • ECI+: up to 1”
  • Manual Inserting:
  • Up to 2”
Included Accessories
  • Coil Diameter Selector
  • Premium Oval Coil Crimpers
  • Side Margin and Punching Margin Controls
  • Large Waste Drawer
  • CE Certified Components
  • ISO 9001 & 14001 Certified Manufacturing
Construction
  • All-metal body with industrial-grade components
  • Front-mounted roller for enhanced control
Weight & Volume
  • 52 lbs
  • 2.8 CbFt
