Akiles

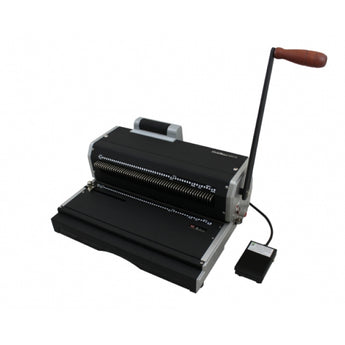

CoilMac-ER Manual Coil Punch with Electric Coil Inserter

$0.00 CAD
Version: Standard

The Akiles CoilMac-ER series is a rugged manual punch coil binding machine with an integrated electric inserter, designed for mid-volume workloads and built to deliver smooth, professional results with ease.
Download Brochure

More about the product

Standard version features:
  • Round Holes: Standard 4mm round holes.
  • 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.
  • STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.
PLUS version features:
  • OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
  • FULLY Disengageable Pins: For a completely clean & professional punching ofany paper size, all 54 pins can be independently pulled & disengaged.
  • LETTER 4:1 pitch (0.248″): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

The Akiles CoilMac-ER and CoilMac-ER+ are versatile, heavy-duty coil binding systems that combine manual punching with an electric coil inserter—making them perfect for offices, schools, and print environments with mid-level production needs. Both models feature an extended 13” punching width with open ends and a continuous punch guide, enabling you to handle documents up to 26” long.

The CoilMac-ER is equipped with a durable top-mounted electric roller inserter (foot pedal operated) to streamline the coil insertion process, conveniently placed on the left side of the machine for easy coil clearance during punching. The robust punch mechanism, built with cast-hardened and heat-treated steel dies, ensures clean and accurate perforations every time.

The CoilMac-ER offers a standard 4:1 round hole pattern with 5 disengageable dies, while the CoilMac-ER+ features a letter 4:1 oval hole punch with all 54 dies disengageable—giving you precise control for any paper size. Built with all-metal construction and CE-certified components, both models are engineered for long-lasting performance.

Model Options
  • CoilMac-ER
  • CoilMac-ER+
Operation
  • Punching: Manual
  • Inserting: Electric (top-mounted roller, foot pedal operated)
Punching Length
  • 13″ (up to 26″ with open throat and continuous punch guide)
  • ER: 53 holes
  • ER+: 54 holes
Hole Shape
  • ER: Round (4mm)
  • ER+: Oval (4mm x 5mm)
Pitch Options
  • ER: Standard 4:1 (0.250”)
  • ER+: Letter 4:1 (0.248”)
Disengageable Pins
  • ER: 5 of 53
  • ER+: All 54
Punching Capacity
  • Up to 20 sheets (20 lb paper)
  • Up to 2.6 mm for hardboard (28-sheet equivalent)
Binding Capacity
  • Electric Inserting: up to 7/8″
  • Manual Inserting: up to 2″
Included Features
  • Coil Diameter Selector
  • Premium Oval Coil Crimpers
  • Side Margin Control
  • Punching Margin Depth Control
  • Large Waste Drawer
  • Non-Skid Feet
Certifications & Build
  • CE Certified Components
  • ISO9001 & ISO14001 Manufacturing Standards
  • All-Metal Construction
Weight & Volume
  • 38 lbs
  • 2.5 CbFt
