Akiles

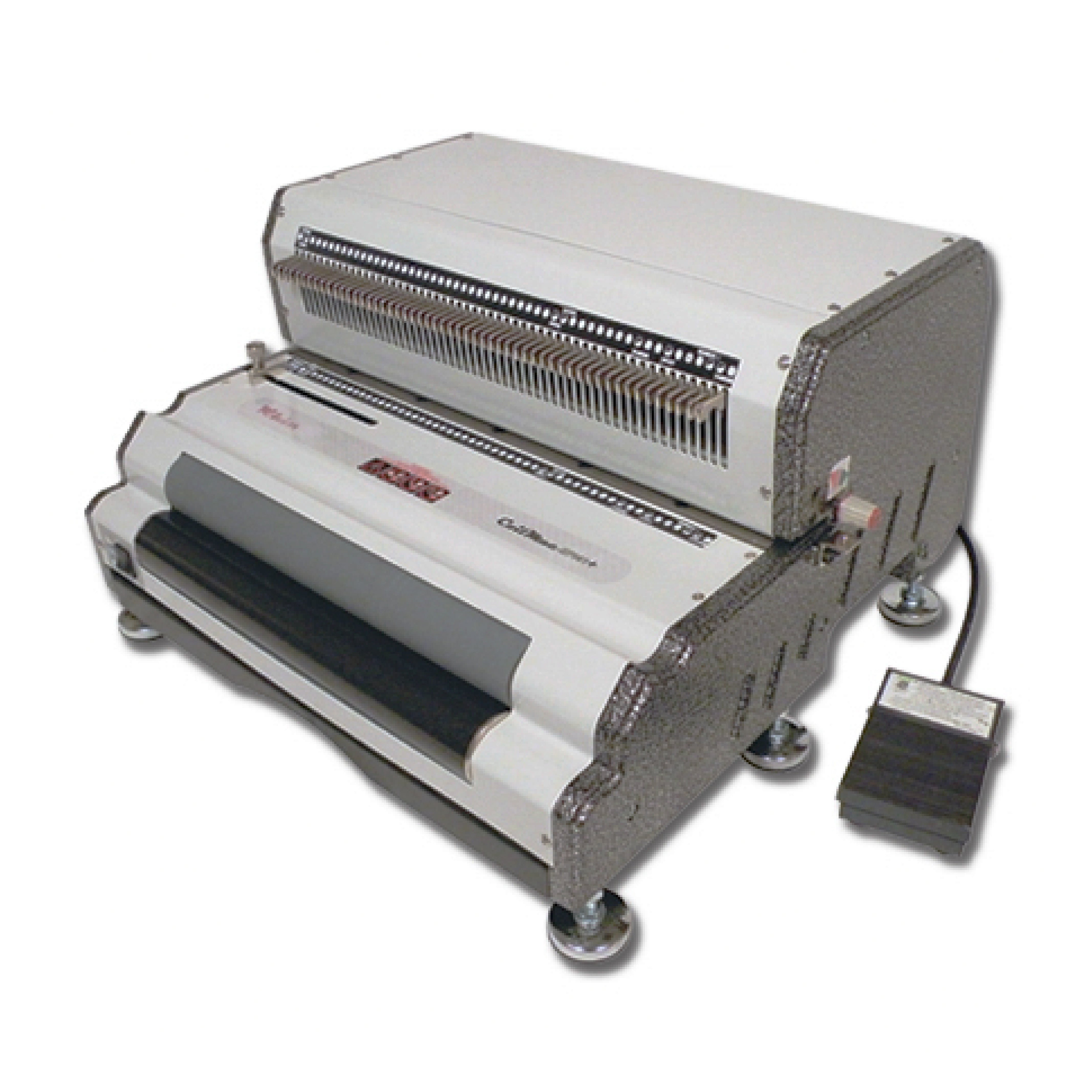

CoilMac-EPI Electronic Coil Punch with HD Electric Coil Inserter

$0.00 CAD

The Akiles CoilMac-EPI is a heavy-duty, all-in-one electric coil binding machine built for commercial use—combining powerful electric punching, effortless coil insertion, and versatile features for professional, high-volume binding.
Download Brochure

More about the product

STANDARD version features:
  • Round Holes: Standard 4mm round holes.
  • 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.
  • STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.
PLUS version features:
  • OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
  • FULLY Disengageable Pins: For a completely clean & professional punching ofany paper size, all 54 pins can be independently pulled & disengaged.
  • LETTER 4:1 pitch (0.248”): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

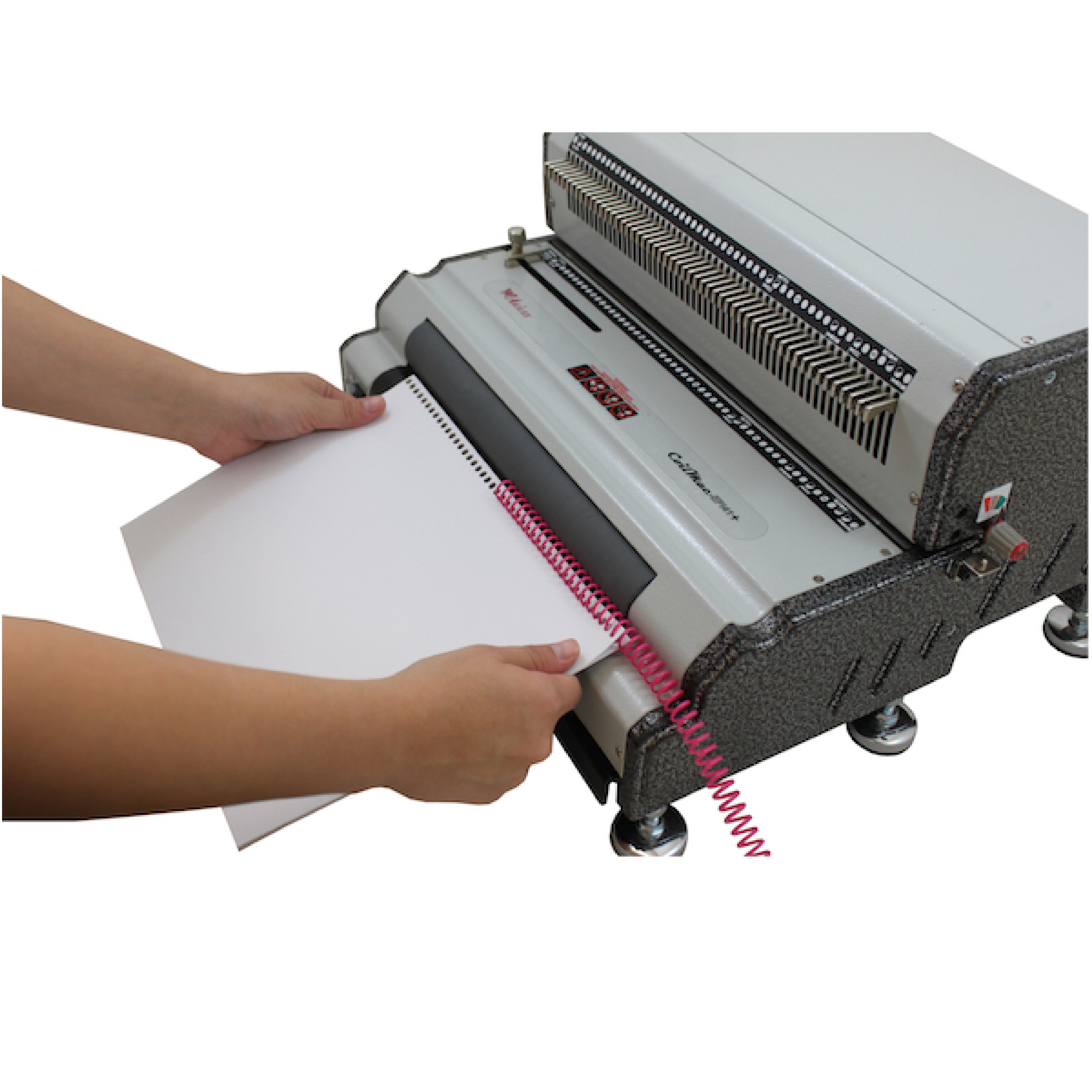

Designed for demanding workloads, the Akiles CoilMac-EPI and CoilMac-EPI Plus deliver industrial-strength performance with user-friendly operation. Featuring a rugged electric punch motor, these machines punch up to 25 sheets at once and include a built-in electric coil inserter for fast, efficient binding.

The CoilMac-EPI uses a standard 4:1 pitch with round holes and includes 5 disengageable pins, while the CoilMac-EPI Plus offers a letter pitch 4:1 oval hole pattern with all 54 pins disengageable—ideal for customized punch layouts and improved coil insertion. Both models support electric binding up to 7/8” (EPI) or 1” (EPI Plus), and manual coil insertion up to 2”.

With precision engineering, adjustable side and depth margins, and all-metal construction, the CoilMac-EPI series is the ultimate solution for busy print shops, schools, and corporate offices needing dependable, high-output coil binding.

Model Options
  • CoilMac-EPI
  • CoilMac-EPI Plus
Punching Operation
  • Electric
Inserting Operation
  • Electric
Punching Capacity
  • Up to 25 sheets (20 lb paper)
  • Up to 2.6 mm thick for hardboard
Binding Capacity
  • Electric: Up to 7/8” (EPI), Up to 1” (EPI Plus)
  • Manual: Up to 2”
Punching Length
  • 13″ (CoilMac-EPI: 53 holes / CoilMac-EPI Plus: 54 holes
Hole Shape
  • CoilMac-EPI: Round (4mm)
  • CoilMac-EPI Plus: Oval (4mm x 5mm)
Disengageable Pins
  • CoilMac-EPI: 5
  • CoilMac-EPI Plus: All 54
Pitch
  • CoilMac-EPI: Standard 4:1 (0.250”)
  • CoilMac-EPI Plus: Letter 4:1 (0.248”)
Weight
  • 75 lbs
Volume
  • 2.9 CbFt
