New Revolutionary Die Cut Machine
Using Traditional Dies

Uchida

Aero Die Cut

Name: Aero Die Cut
Brand: Uchida
Price: 0.01 CAD
Availability: InStock

$0.01 CAD

Shipping calculated at checkout.

Product variants

Quantity

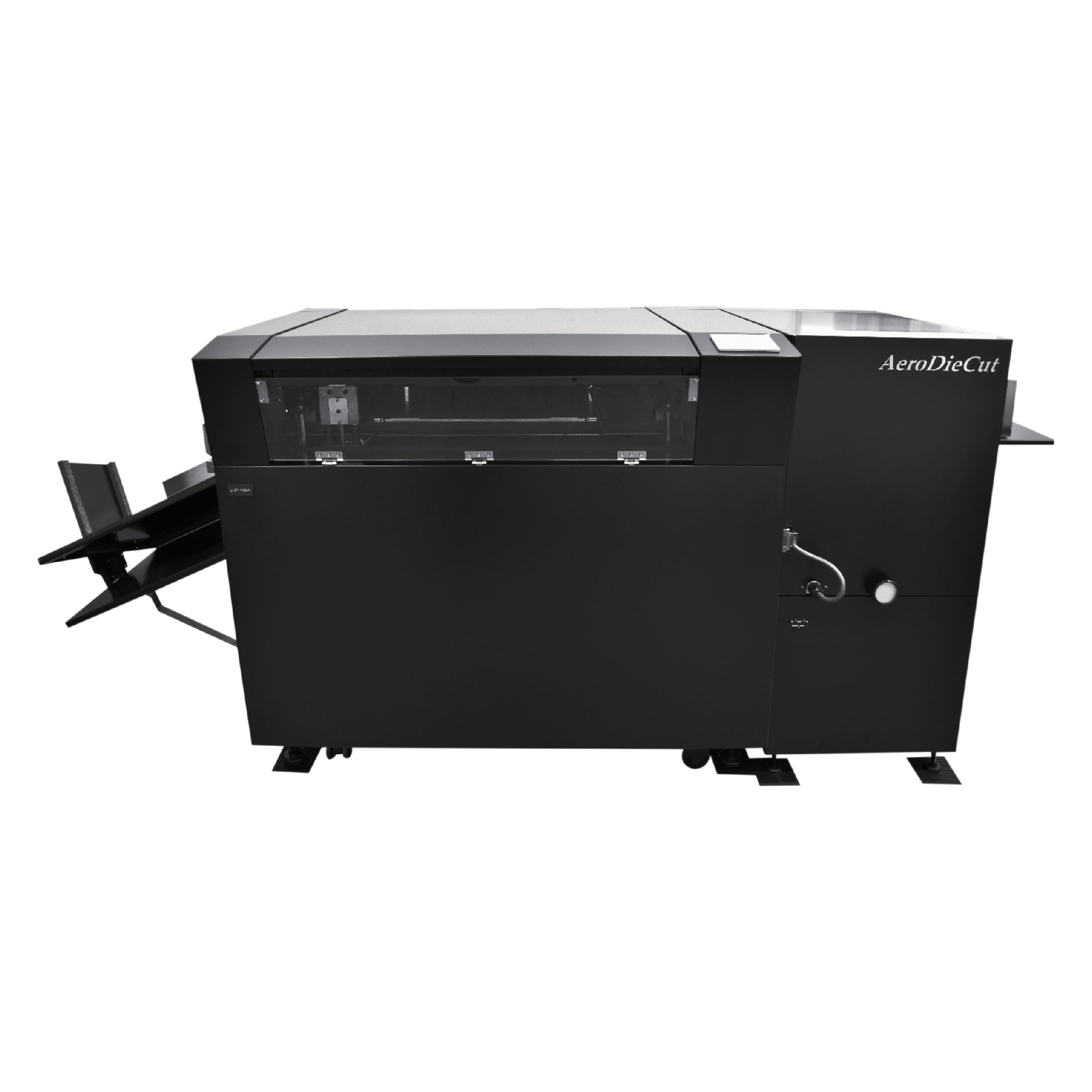

The Aero Die Cut is a compact, sheet-fed die cutter built for fast, short-run production of custom-shaped prints, packaging, and cards. With the ability to cut, crease, perforate, and emboss in a single pass, it’s a powerful alternative to traditional die cutters and slower plotters—ideal for digital print environments needing precision, versatility, and speed.

Download Brochure

High Quality Finishing
Cut, Crease, Perforation, Curved Cut

The all-new AeroDieCut offers advanced platen die technology, enabling fast, precise, and cost-effective finishing for printed materials. Compact and user-friendly, it’s ideal for producing complex cuts, creases, and perforations efficiently.

Patented “Moving Press Rollers”

Optional Separator & Conveyor

Patented “Tri-Suction Feeder”

Touch Screen Operation

Feed Unit

The patented "tri-suction feeder" ensures consistent paper feeding. The feeding unit equips an ultra-sonic sensor for double feed detection, and a cut-mark sensor to compensate image shift.

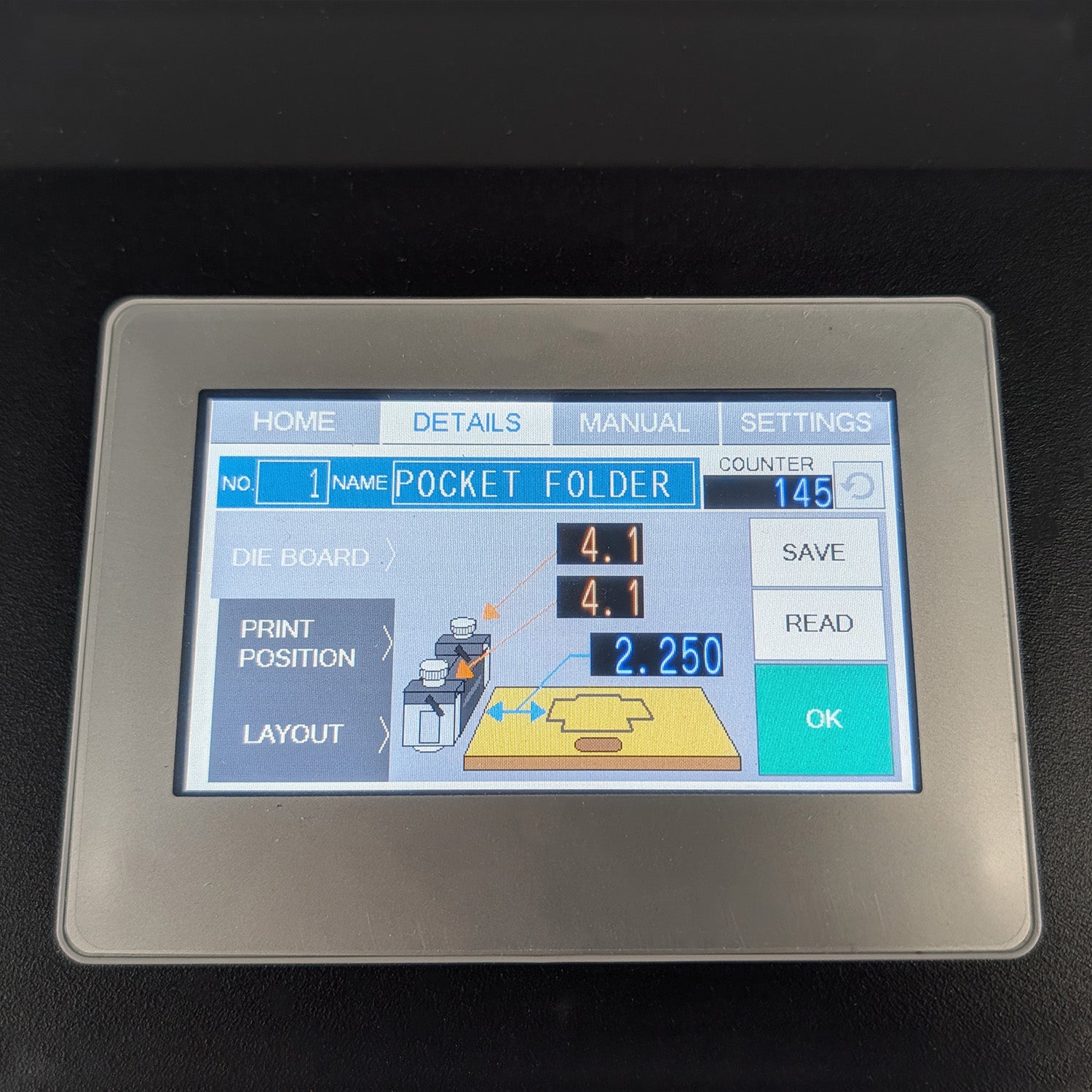

Easy Touch Screen Operation

The 4.3” colored touch screen makes job settings and operation easy. 100 jobs can be stored into memory.

Main Unit (Press Unit)

The main press unit uses patented “moving press rollers” mechanism to press the paper. This makes the die cutting process much quieter and power efficient than conventional die cutters.

Multiple-up Applications

The Aero Die Cut features step & repeat function to finish multiple-up applications, which helps saving the cost of additional dies.

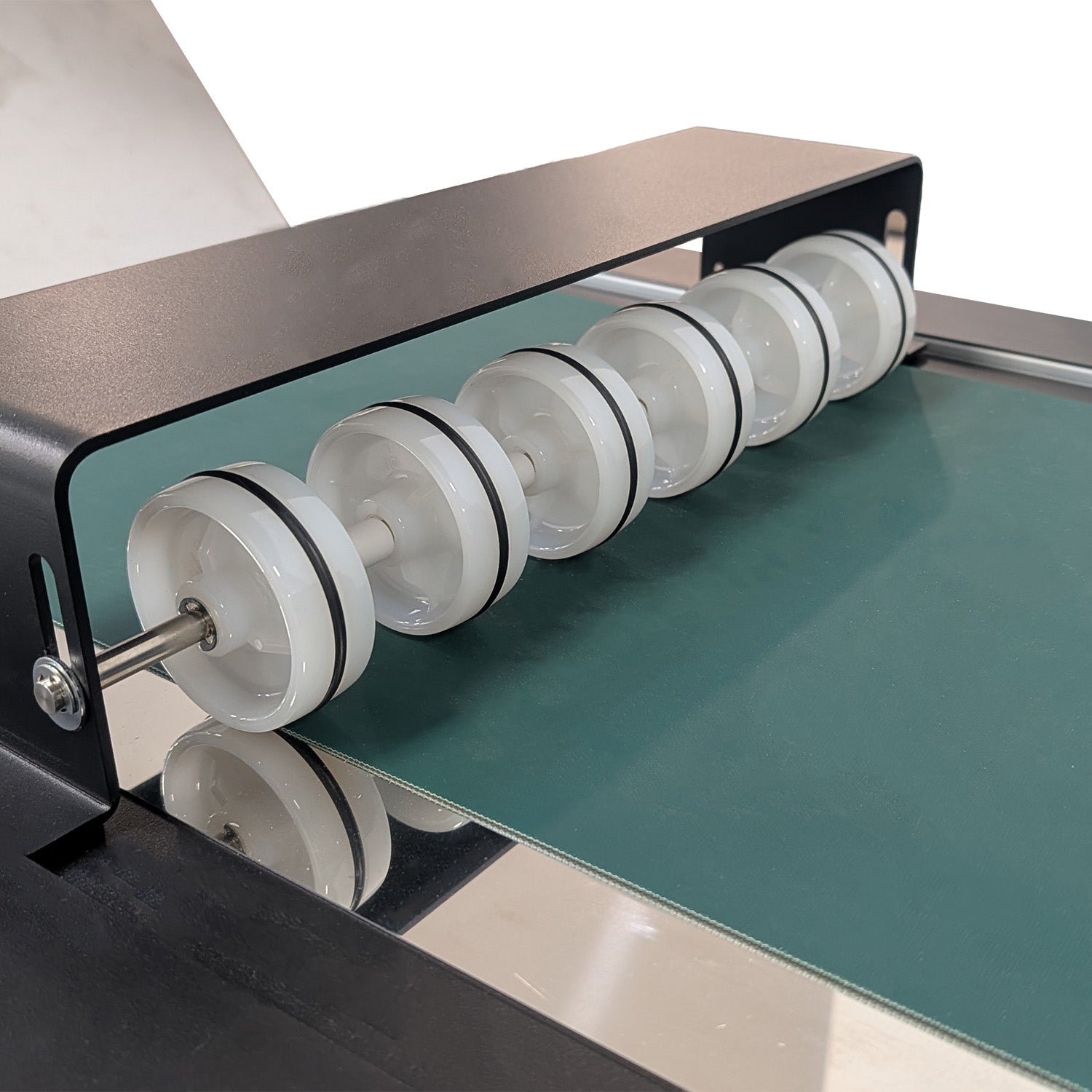

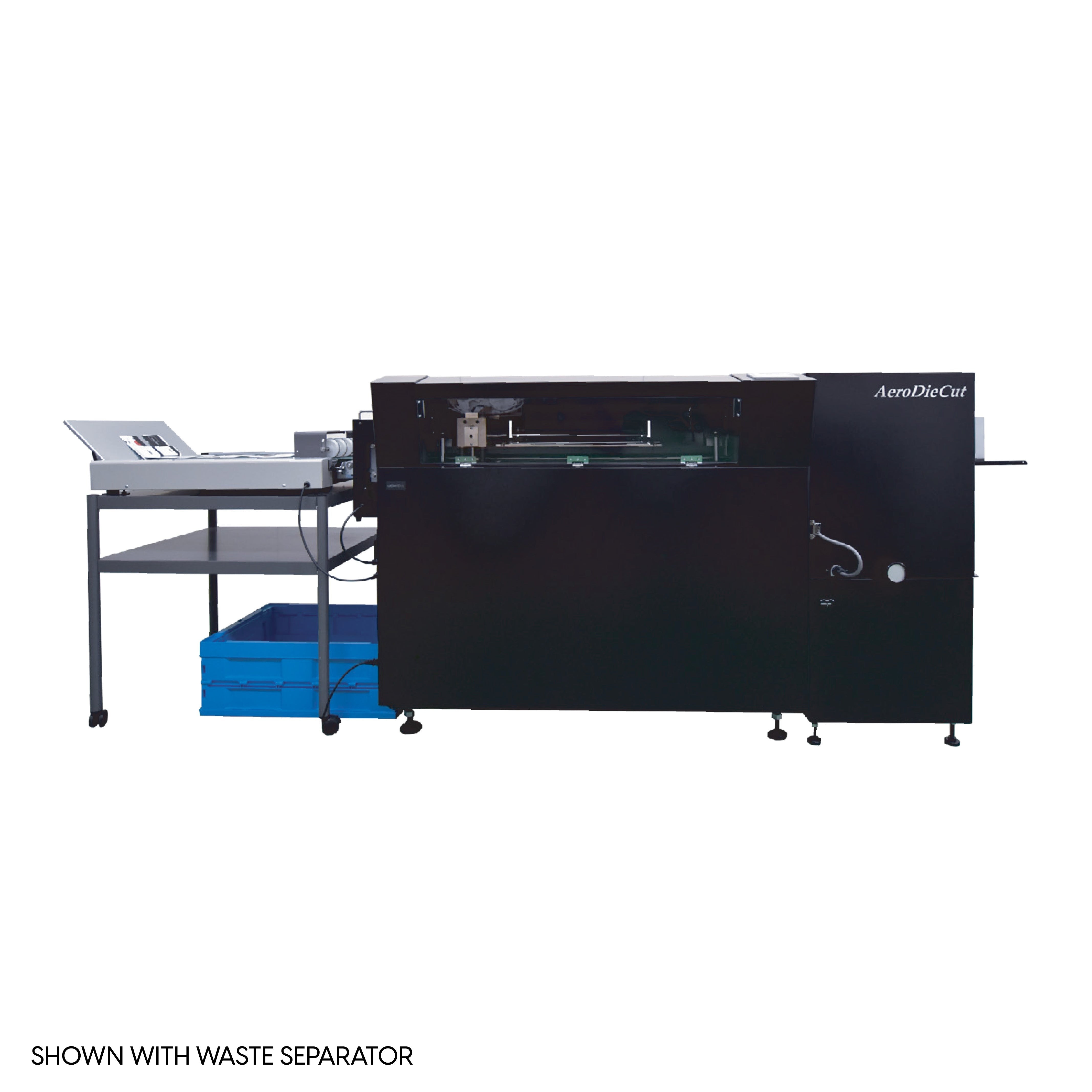

Optional Separator & Conveyor

The optional separator deflects wastes into a waste bin as the die-cut paper is delivered. The optional conveyor delivery table makes collecting process more efficient.

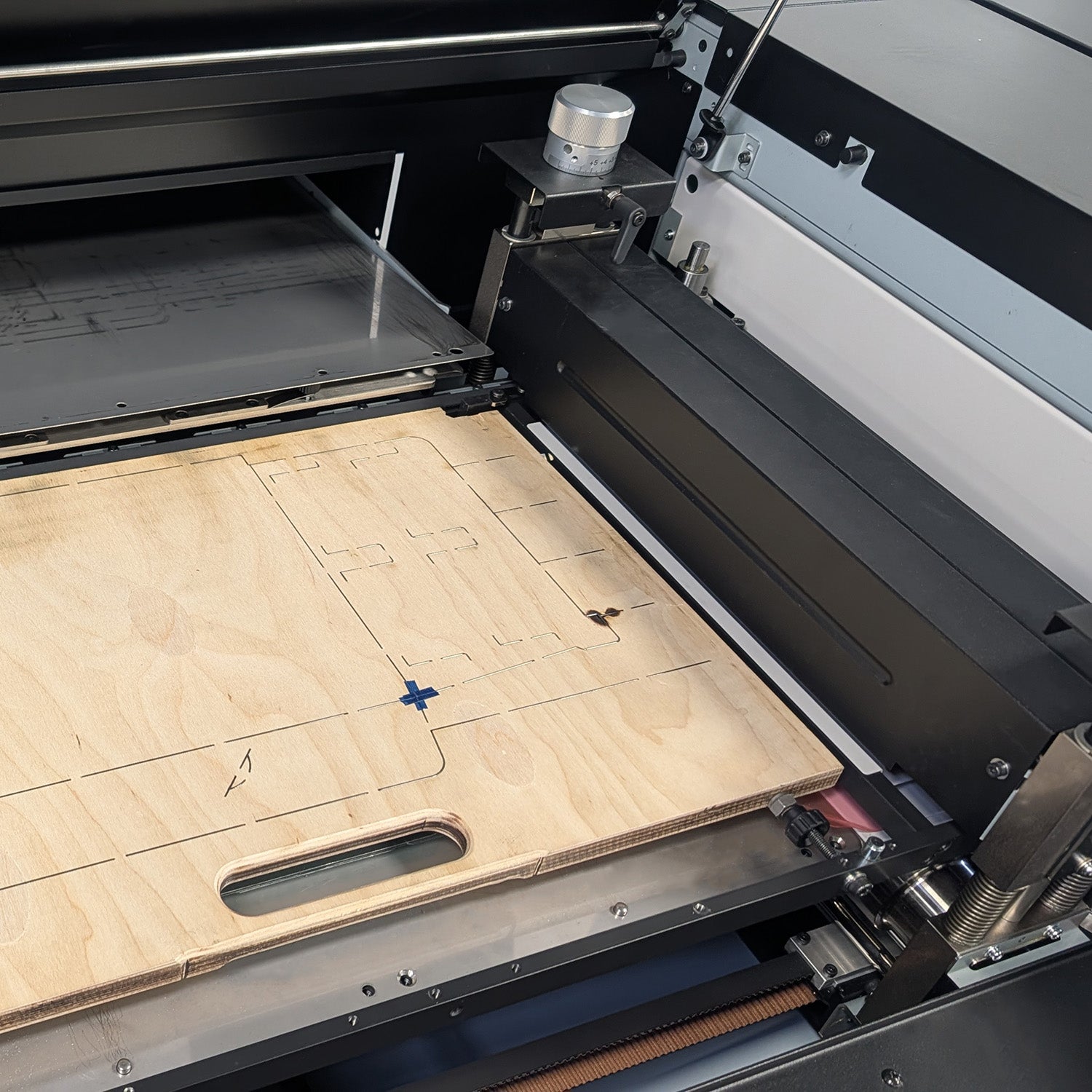

Die Boards Storage

Includes a chase adapter and die board rack to hold die boards and cutting plates.

Features

Why Use Traditional Platen Dies?

The Aero Die Cut uses traditional platen dies because they are a mature technology that is easy to source, cost-effective, and delivers excellent finishing quality.

Dies starting from $150
Engineered for ease of use
True creasing

Ideal for Short-run Finishing

Customers want printed materials faster, personalized, and in the quantity they need, whether it's for unique shaped cards or boxes. The Aero Die Cut gives printers and marketing service providers a new way to do this.

Safe. Intuitive. Compact.

In the past, die cutters were large, heavy duty, and could be used for decades, but they required skilled operators and were, above all, dangerous. The Aero Die Cut was designed to be used by anyone, anywhere, with a focus on operator safety and minimal mechanical adjustments.

Various Applications

The Aero Die Cut can cut, crease, and perforate on a print in a single pass. It turns your prints into a variety of applications, such as cards, swing tags, boxes, envelopes, shelf talkers, etc. Even transparent film sheets can be finished.

More about the product

AeroDieCut uses advanced platen dies for high-quality, precise finishing
Ideal for producing unique shaped cards, boxes, and more
Easier to operate than traditional large format die cutters
More productive than cutting plotters and laser cutters
Processes complex cuts, creases, perforations in a single pass
Designed with a focus on operator safety and simplicity
Compact and user-friendly, suitable for use anywhere, anytime
Transforms printed materials into various applications like cards, boxes, tags
Includes chase adapter and rack for die boards and plates
Optional accessories improve waste management and collection efficiency
Cut, crease, and perforate in a single pass
Die board size: 13.8" x 21.7" (350 x 550 mm*)
Max. paper size 14.3" x 20.2" (365 x 515mm)
Paper Weight: 120 - 400 gsm. / 6 - 16 pt.*
Speed: Up to 1,000 sheets per hour

*applications above 400 gsm must be tested and verified due to variation in paper stock.

**may vary due to variations in paper and power supply/paper coatings (varnish, UV, laminates, etc.)

The Aero Die Cut is purpose-built for modern print shops and marketing service providers that demand speed, flexibility, and precision in short-run finishing. Whether you’re producing custom-shaped postcards, folding cartons, or intricate marketing pieces, this machine delivers production-grade performance with remarkable ease.

At the heart of its design is a patented tri-suction feed system, which ensures consistent, accurate feeding—even with varying stocks. Integrated sensors detect double feeds and adjust for image shifts using registration marks, ensuring each cut is spot-on.

The intuitive 4.3” color touchscreen makes job setup simple, with storage for up to 100 custom job presets. The main press unit uses a moving press roller mechanism—a quieter and more energy-efficient alternative to traditional hydraulic or mechanical presses.

Compared to larger die cutters and slower cutting plotters, the Aero Die Cut offers the perfect balance of automation, versatility, and productivity, processing up to 1,000 sheets per hour.

Functions

Cut, round cut, crease, perforate, emboss (single-pass finishing)

Paper Handling

Input Paper Size: 11.6" x 16.5" to 14.3" x 20.2" (297 x 420 mm to 365 x 515 mm)
Maximum Finished Size: 12.6" x 19.8" (320 x 505 mm)
Paper Weight: 120 – 600 gsm* (6–16 pt**)
Feed Tray Capacity: 3.9" (100 mm) stack height

*applications above 400 gsm must be tested and verified due to variation in paper stock.

**may vary due to variations in paper and power supply/paper coatings (varnish, UV, laminates, etc.)

Feeding Mechanism
