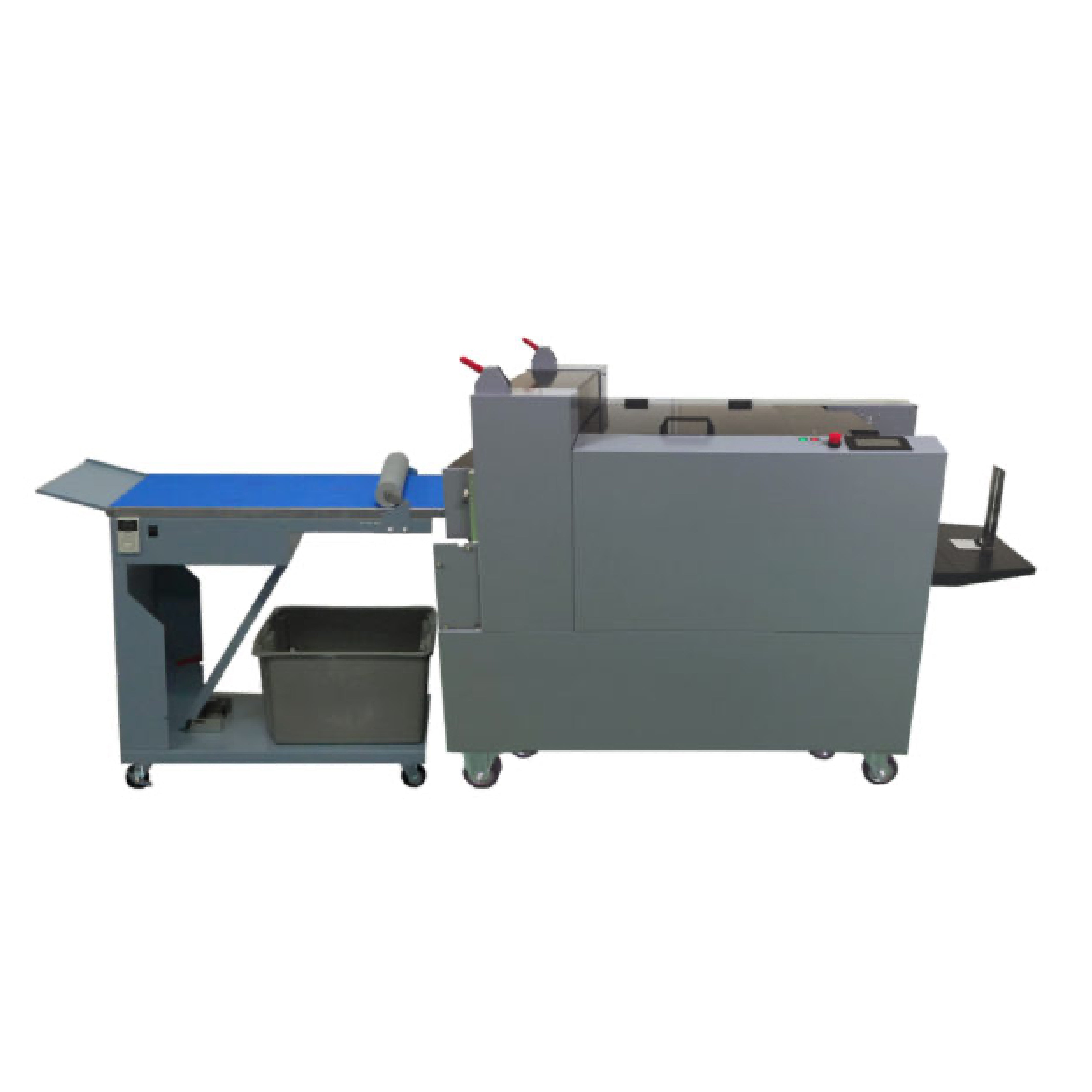

UD-310 Rotary Die Cutter

The Duplo UD-310 Rotary Die Cutter is a high-speed solution for producing custom-shaped print applications that command attention. Whether you’re creating labels, packaging components, or promotional pieces, the UD-310 can kiss cut, crease, perforate, and die cut with precision. Designed for mid to high-volume production, it processes up to 4,000 sheets per hour and handles paper, laminate, adhesive, and synthetic stocks.

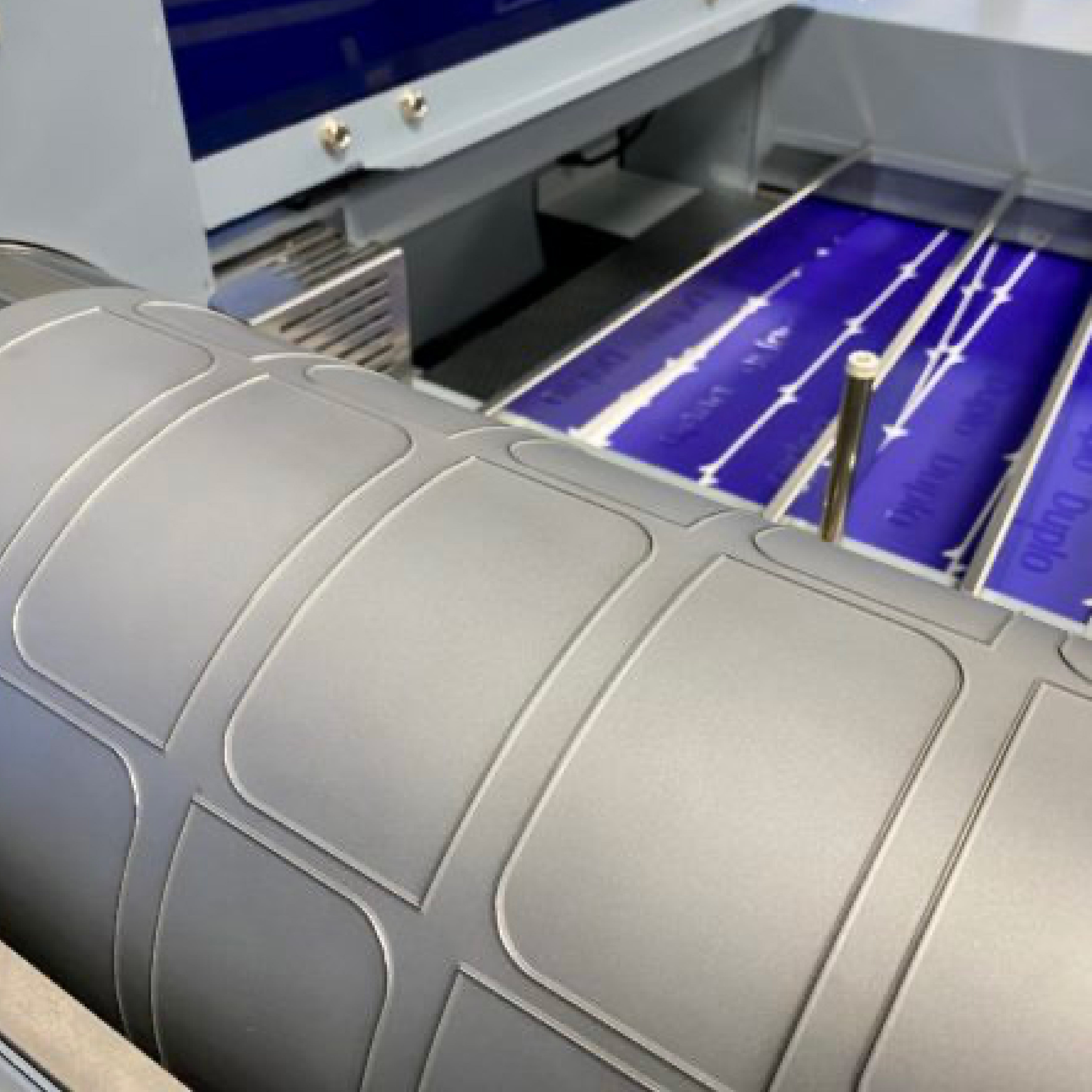

Utilizing a magnetic cylinder with interchangeable flexible dies, the UD-310 ensures easy setup, fast changeovers, and efficient output. A built-in separation station automatically deflects waste skeletons, while X and Y registration sensors maintain tight alignment—even on shifted prints. With its large feed capacity and streamlined operation, the UD-310 maximizes productivity and minimizes downtime.

Functions: Cuts, kiss cuts, creases, perforates
• Speed: Up to 4,000 sheets per hour
• Input Sheet Size: Min. 8.26” x 11.69” — Max. 15.35” x 20.47”
• Paper Weight Range: 200 – 400 gsm
• Feeder Capacity: 8.7”
• Die System: Magnetic cylinder with flexible dies
• Sensors: X and Y registration mark detection for image shift compensation

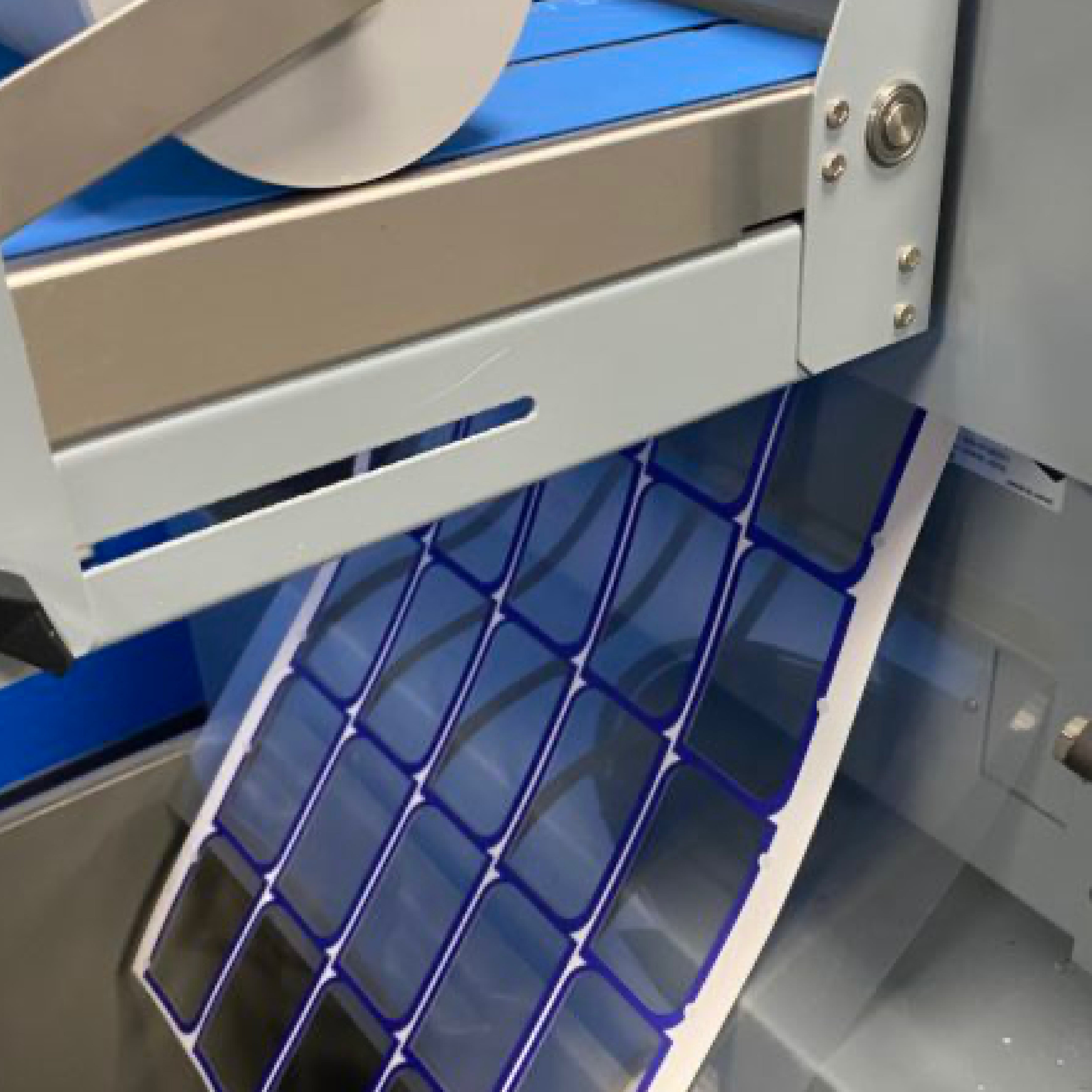

• Skeleton Removal: Built-in deflection system for automatic waste bin collection
